Rotating Clutch, Gear, and Shell and 1-2-3-4-5-6-Reverse Clutch Plates Installation

WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Cadillac Escalade ESV, and 2018 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

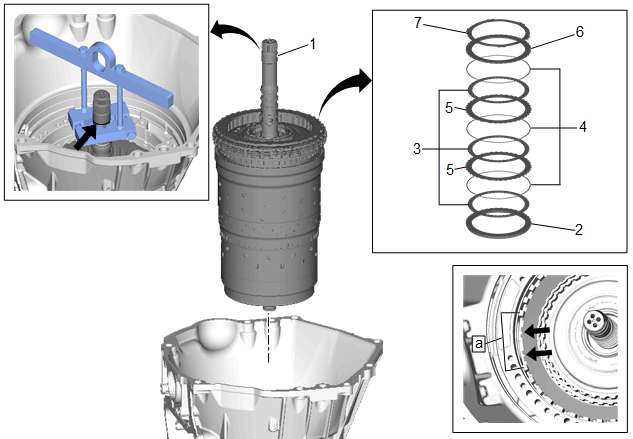

Fig 1: Rotating Clutch, Gear, and Shell and 1-2-3-4-5-6-Reverse Clutch Plates

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rotating Clutch, Gear, and Shaft Shell Procedure Ensure the park pawl is engaged. Use a hoist or chainfall to install assembly into case. Once installed, the top speed sensor hole should show the reluctor wheel through it. Install the assembly into the case. Once set in rotate the turbine shaft clockwise until it drops and seats into the output carrier. Special Tools DT-45053 Universal Clamp Press DT-52090 Lifting Bar Equivalent regional tools:Special Tools
2	1-2-3-4-5-6-Reverse Clutch Backing Plate NOTE: Notches on plates must be aligned between gap in bottom side of the case (a).
3	1-2-3-4-5-6-Reverse Clutch Friction Plate
4	1-2-3-4-5-6-Reverse Clutch Piston Return Spring
5	1-2-3-4-5-6-Reverse Clutch Steel Plate NOTE: Notches on plates must be aligned between gap in case (a).
6	1-2-3-4-5-6-Reverse Clutch Apply Plate-Selective NOTE: Notches on plates must be aligned between gap in case (a). This is the thickest flat steel plate in this clutch. Procedure Select the correct 1-2-3-4-5-6-Reverse Clutch Apply Plate. 1-2-3-4-5-6-Reverse Clutch Apply Plate Measurement
7	1-2-3-4-5-6-Reverse Clutch Waved Plate
