Propeller Shaft Transmission Flange Fluid Seal Replacement (Two Wheel Drive)

WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Cadillac Escalade ESV, and 2018 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

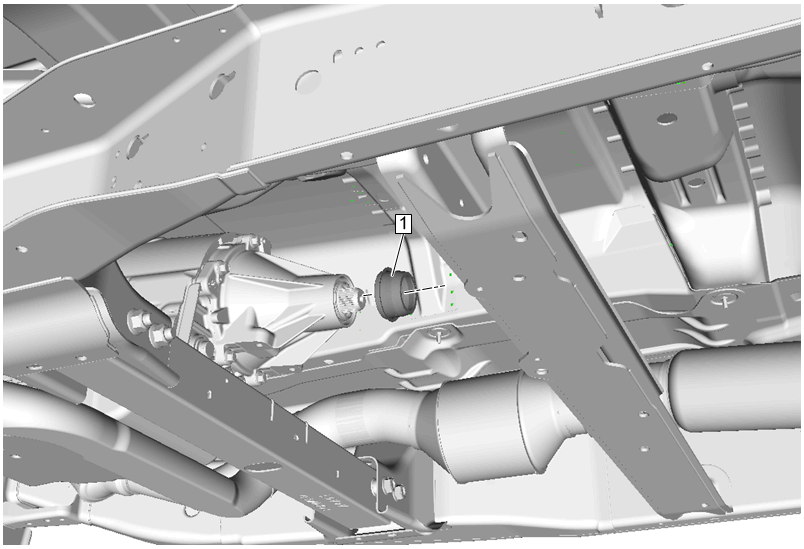

Fig 1: Propeller Shaft Transmission Flange Fluid Seal

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the propeller shaft. Rear Propeller Shaft Replacement (1500)Rear Propeller Shaft Replacement (Heavy Duty)Rear Propeller Shaft Replacement (M5U, 2WD)
1	Propeller Shaft Transmission Flange Fluid Seal NOTE: Install a NEW seal, it is not reusable. Procedure Using a suitable tool, remove the rear transmission housing oil seal (1) from the transmission housing. Use care in order to avoid damaging the output shaft. Lubricate the seal with clean transmission fluid. Use J-38869 Seal Installer to install the seal. Special Tool J-38869 Seal Installer For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Preliminary Procedure
Remove the propeller shaft. Rear Propeller Shaft Replacement (1500)Rear Propeller Shaft Replacement (Heavy Duty)Rear Propeller Shaft Replacement (M5U, 2WD)

Propeller Shaft Transmission Flange Fluid Seal

NOTE:

Install a NEW seal, it is not reusable.

Procedure

Using a suitable tool, remove the rear transmission housing oil seal (1) from the transmission housing. Use care in order to avoid damaging the output shaft.
Lubricate the seal with clean transmission fluid.
Use J-38869 Seal Installer to install the seal.

Special Tool

J-38869 Seal Installer

For equivalent regional tools, refer to Special Tools .
