Propeller Shaft Transmission Flange Fluid Seal Replacement (Four Wheel Drive)

WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Cadillac Escalade ESV, and 2018 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

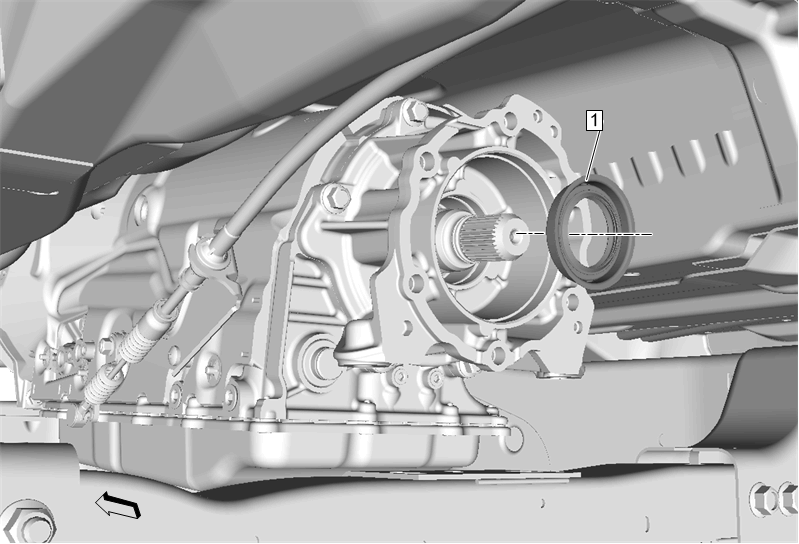

Fig 1: Propeller Shaft Transmission Flange Fluid Seal

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the transfer case. Transfer Case Assembly Replacement
1	Propeller Shaft Transmission Flange Fluid Seal NOTE: Install a NEW seal, it is not reusable. Procedure Using J-36825-A Output Shaft Oil Seal Remover and J-23907-1 Slide Hammer, remove the rear transmission housing oil seal (1) from the transmission housing. Use care in order to avoid damaging the output shaft. Lubricate the seal with clean transmission fluid. Use J-38869 Seal Installer to install the seal. Special Tool J-23907-1 Slide Hammer J-36825-A Output Shaft Oil Seal Remover J-38869 Seal Installer For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Preliminary Procedure
Remove the transfer case. Transfer Case Assembly Replacement

Propeller Shaft Transmission Flange Fluid Seal

NOTE:

Install a NEW seal, it is not reusable.

Procedure

Using J-36825-A Output Shaft Oil Seal Remover and J-23907-1 Slide Hammer, remove the rear transmission housing oil seal (1) from the transmission housing. Use care in order to avoid damaging the output shaft.
Lubricate the seal with clean transmission fluid.
Use J-38869 Seal Installer to install the seal.

Special Tool

J-23907-1 Slide Hammer
J-36825-A Output Shaft Oil Seal Remover
J-38869 Seal Installer

For equivalent regional tools, refer to Special Tools .
