Rear Seat Center Buckle Side Belt Replacement

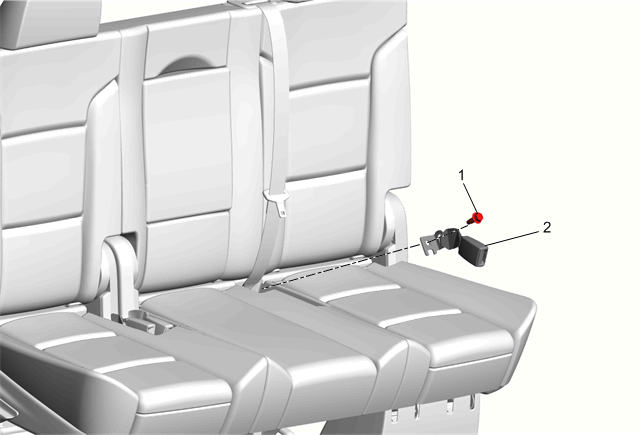

Fig 1: Rear Seat Center Buckle Side Belt

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Seat Belt Buckle Fastener CAUTION: Refer to Fastener Caution . Tighten  45 N.m (33 lb ft)
2	Rear Seat Belt Buckle Procedure  Reposition the flap to access the seat buckle fastener.
