Rear Seat Armrest Replacement (Bucket)

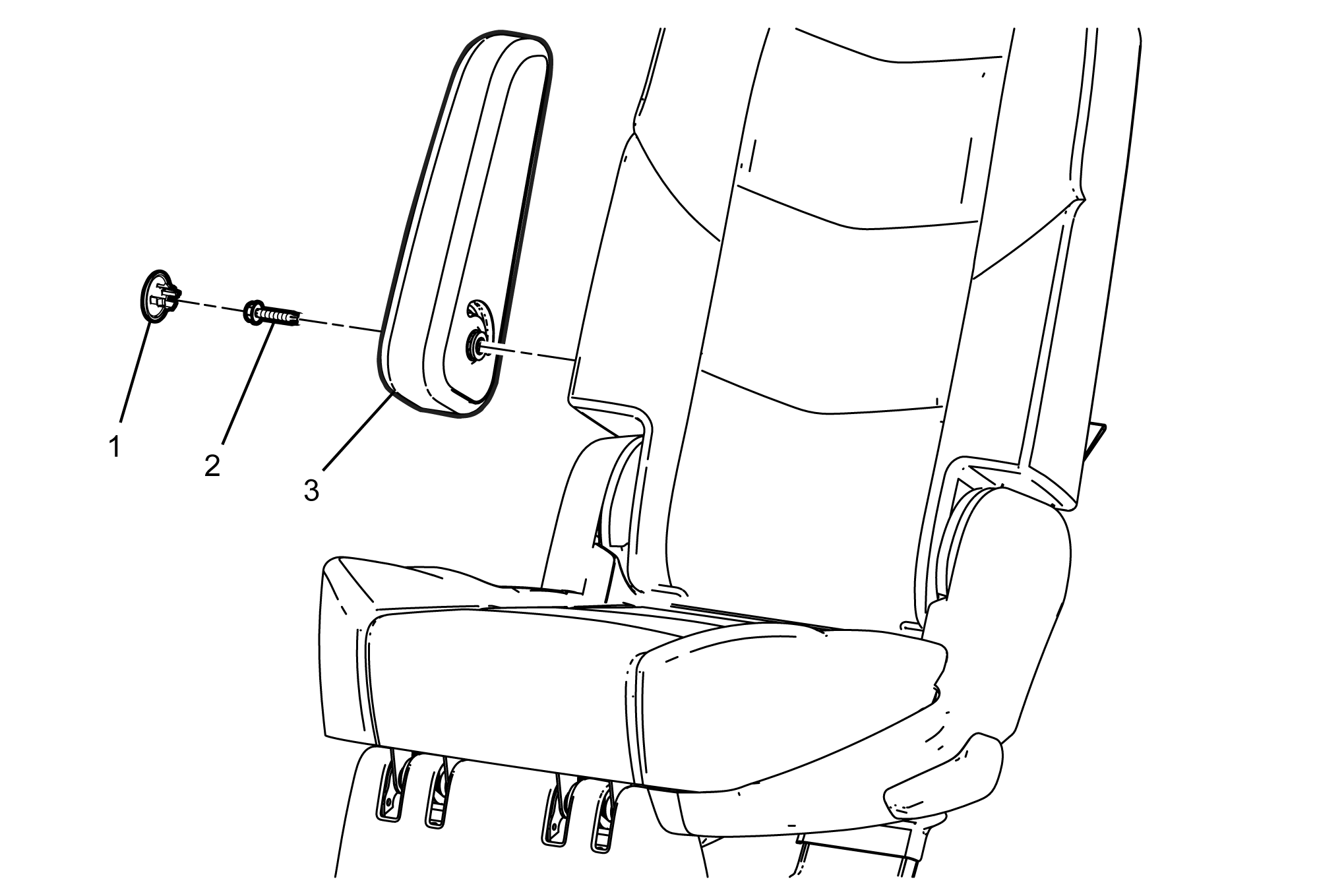

Fig 1: Rear Seat Armrest (Bucket)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Seat Armrest Bolt Finish Cover NOTE: During re-installation make sure to orientate the finish cover locator to armrest assembly notch.
2	Rear Seat Armrest Bolt CAUTION: Refer to Fastener Caution . Procedure Clean old thread locking compound from the bolt. Apply medium strength (blue) thread locking compound to the bolt. Tighten 25 N.m (18 lb ft)
3	Rear Seat Armrest
