3rd Row Seat Back Hinge Finish Cover Replacement (40% Inboard With ARN)

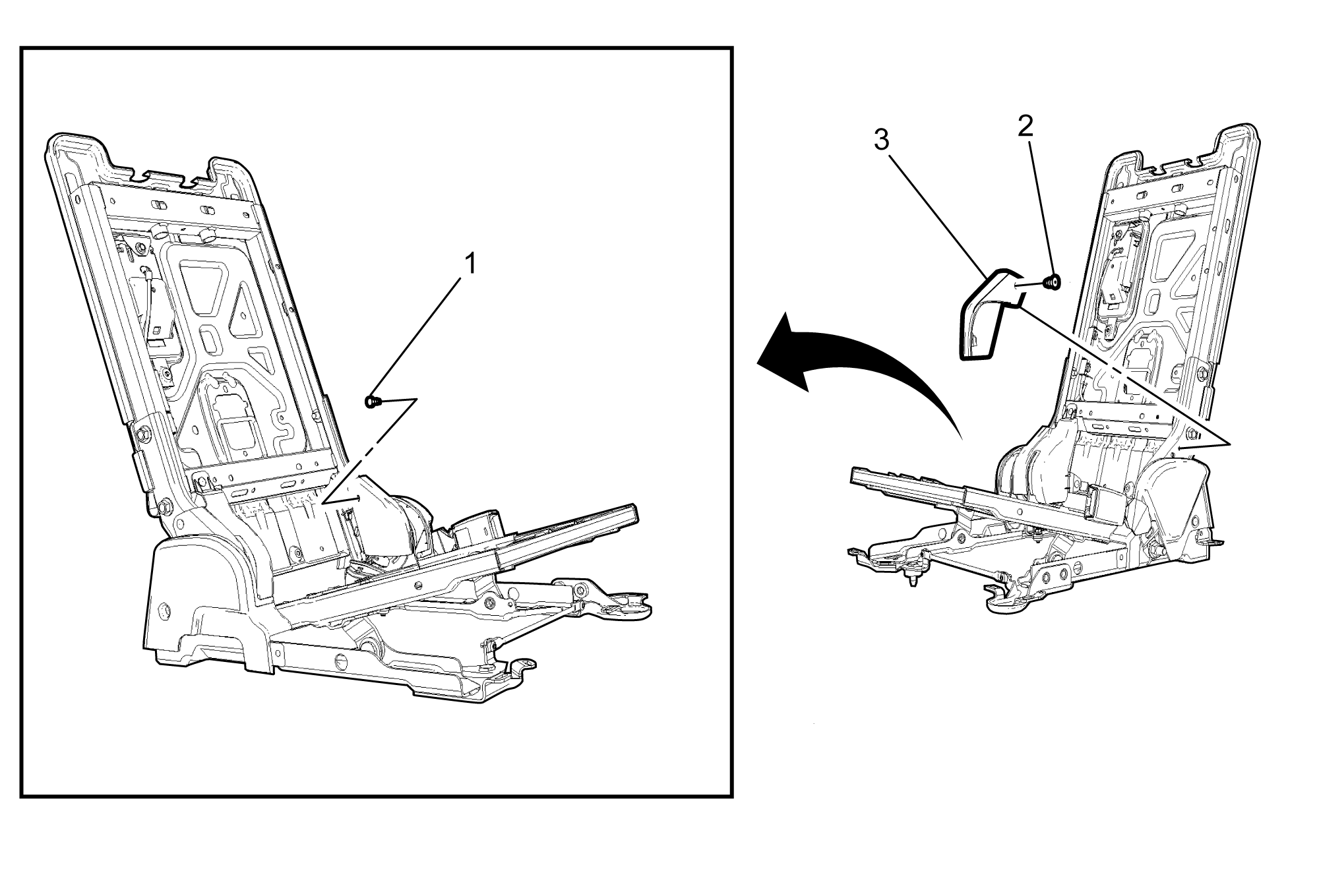

Fig 1: 3rd Row Seat Back Hinge Finish Cover (40% Inboard with ARN)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Reposition the 40% 3rd row seat back cover and pad. Refer to 3rd Row Seat Back Cover and Pad Replacement (40%) .
1	3rd Row Seat 40% Inboard Hinge Finish Cover Fastener
2	3rd Row Seat 40% Inboard Hinge Finish Cover Fastener
3	3rd Row Seat 40% Inboard Hinge Finish Cover Procedure Release the bottom of the hinge finish cover from the retaining tab pocket. Ensure that the cover is properly seated prior to installing the retainers.
