Rear Seat Recliner Spindle Replacement

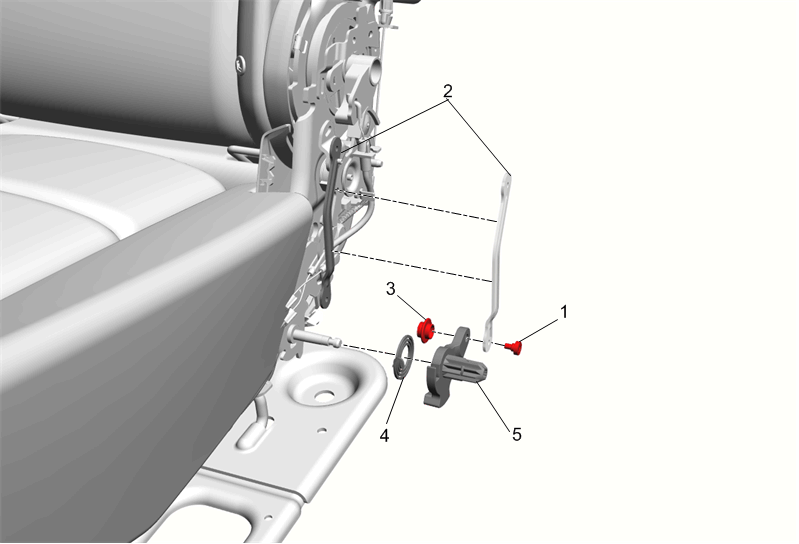

Fig 1: Rear Seat Recliner Spindle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Eye Protection Warning . Preliminary Procedure Rear Seat Cushion Outer Trim Panel Replacement .
1	Rear Seat Recliner Spindle Rivet
2	Rear Seat Recliner Spindle Lever Procedure  Swing the spindle lever out of the way in order to remove the spindle.
3	Rear Seat Recliner Spindle Spacer
4	Rear Seat Recliner Spindle Spring
5	Rear Seat Recliner Spindle
