Steering Wheel Replacement (Cadillac)

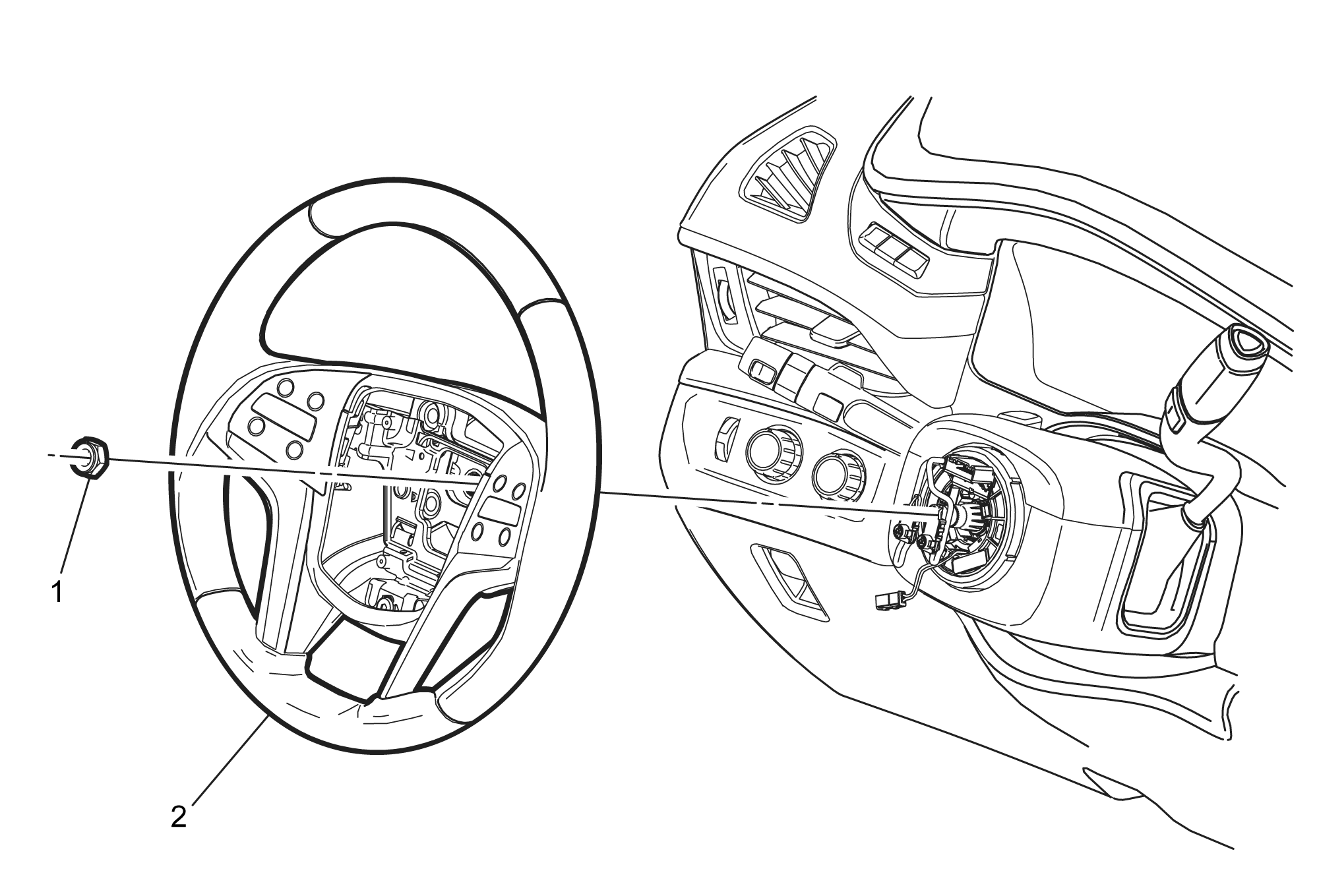

Fig 1: Steering Wheel (Cadillac)
GM3648081Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING: Refer to SIR Warning .
WARNING: Refer to SIR Inflator Module Handling and Storage Warning .
Preliminary Procedure Steering Wheel Airbag Replacement (Cadillac)
1 Steering Wheel Nut
CAUTION: Refer to Fastener Caution .

Tighten
37 N.m (27 lb ft)
2 Steering Wheel
CAUTION: Do not hammer on the end of the steering column shaft. Hammering could loosen the plastic injections which maintain the steering column rigidity.

Procedure

  1. Disconnect the electrical connectors.
  2. Install the steering wheel nut until 2 to 3 threads are engaged.
  3. Wiggle the steering wheel until the wheel disengages completely.
  4. Steering Wheel Nut - Remove
  5. Steering Wheel - Remove
  6. Transfer components as necessary.
