Instrument Panel Outer Air Outlet Replacement - Left Side (Chevrolet/GMC)

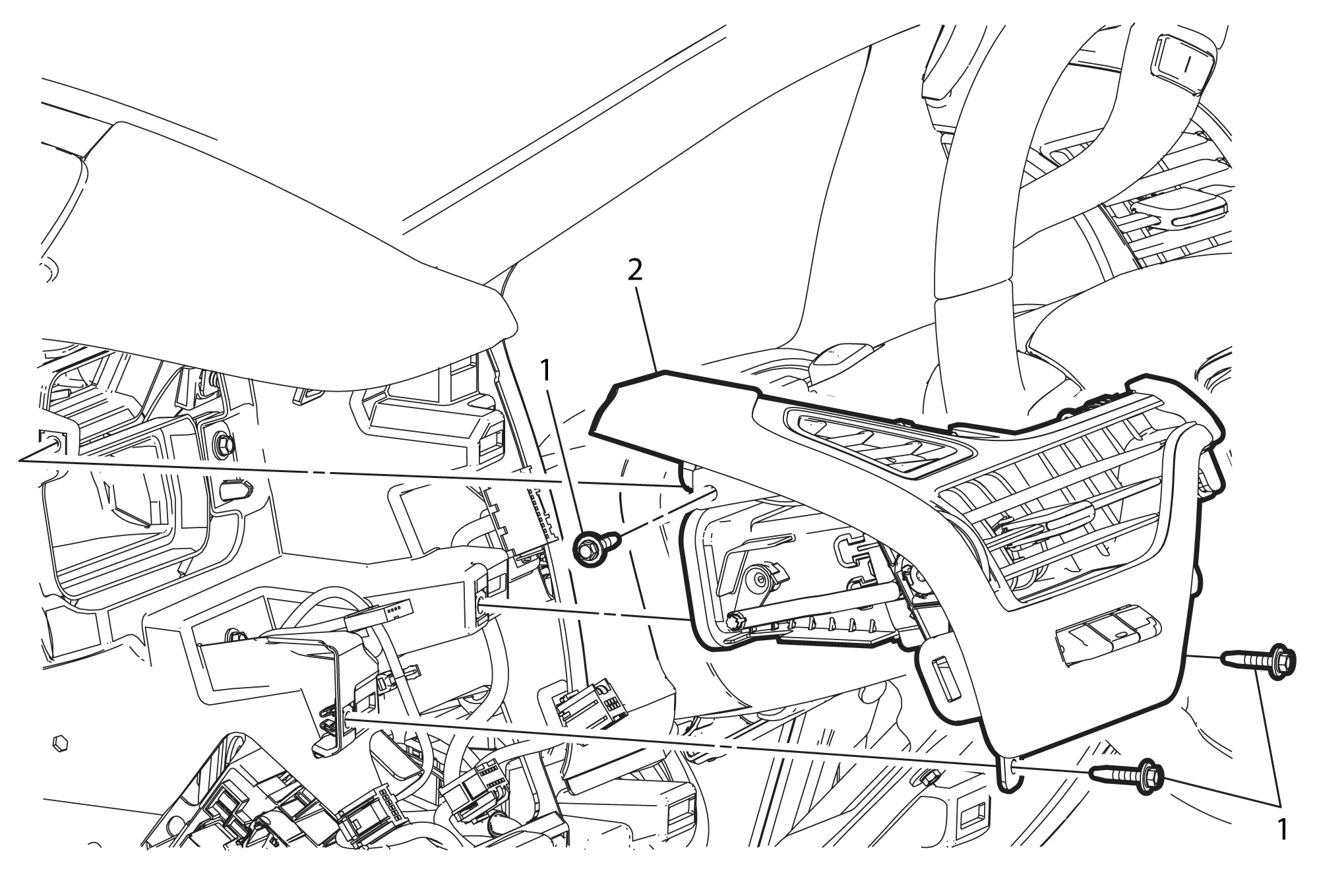

Fig 1: Instrument Panel Outer Air Outlet - Left Side (Chevrolet/GMC)
GM3623674Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the instrument panel accessory bezel. Refer to Instrument Panel Accessory Bezel Replacement (Chevrolet/GMC) .
1 Instrument Panel Outer Air Outlet Bolt (Qty: 3)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Instrument Panel Outer Air Outlet

Procedures

  1. Use a flat bladed plastic trim tool in order to release the retainer clips securing the air outlet to the instrument panel carrier.
  2. Disconnect the electrical connector.
  3. Transfer components as necessary.
