Instrument Panel Accessory Bezel Replacement (Chevrolet/GMC)

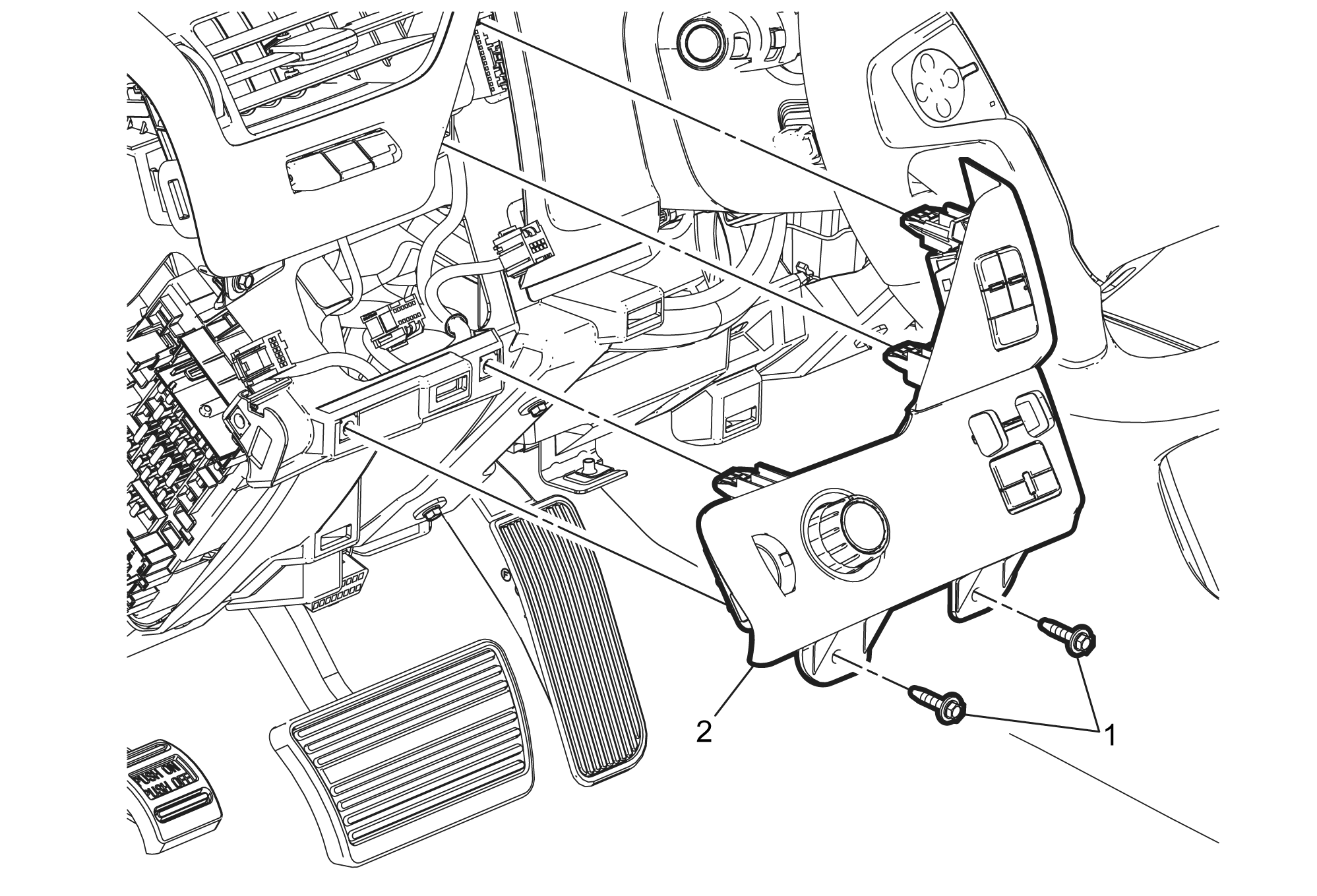

Fig 1: Instrument Panel Accessory Bezel (Chevrolet/GMC)
GM3623646Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the instrument panel knee bolster. Refer to Instrument Panel Knee Bolster Replacement (Chevrolet/GMC) .
1 Instrument Panel Accessory Bezel Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Instrument Panel Accessory Bezel

Procedures

  1. Use a flat bladed plastic trim tool in order to release the retainer clips securing the bezel to the instrument panel carrier.
  2. Disconnect the electrical connector.
  3. Transfer components as necessary.
