Rear Compartment Floor Stowage Trim Compartment Replacement (Extended Wheelbase)

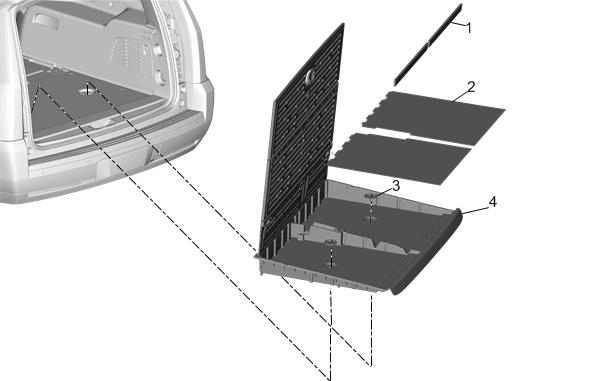

Fig 1: Rear Compartment Floor Stowage Trim Compartment (Extended Wheelbase)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the luggage shade. Refer to Luggage Shade Replacement .
1	Cargo Center Divider (Qty: 2)
2	Cargo Center Mat (Qty: 2)
3	Rear Compartment Floor Stowage Trim Retainer (Qty: 2)
4	Rear Compartment Floor Stowage Trim Compartment Assembly Procedure Open liftgate to full open position. Open rear compartment floor stowage cover.
