Instrument Panel Center Trim Pad Replacement (Chevrolet/GMC)

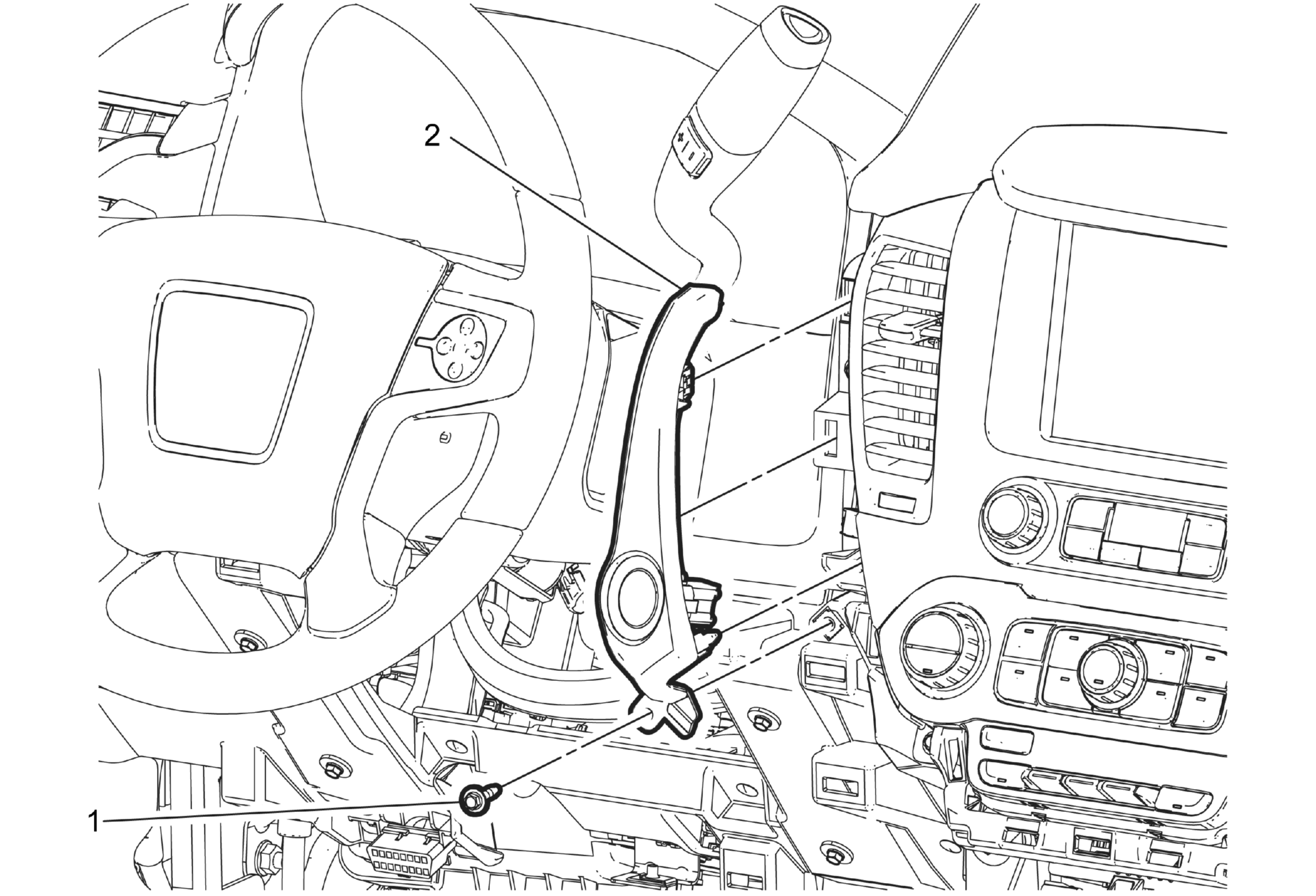

Fig 1: Instrument Panel Center Trim Pad (Chevrolet/GMC)
GM3629463Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the front floor console trim plate, if equipped. Refer to Front Floor Console Trim Plate Replacement (Chevrolet/GMC) .
  2. Remove the instrument panel center compartment, if equipped. Refer to Instrument Panel Center Compartment Replacement (Chevrolet/GMC) .
1 Instrument Panel Trim Plate Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Instrument Panel Center Trim Pad

Procedures

  1. Use a flat bladed plastic trim tool in order to release the retainer clips securing the trim pad to the instrument panel carrier.
  2. Disconnect electrical connections, if applicable.
  3. Transfer components as necessary.
