Instrument Panel Center Compartment Replacement (Chevrolet/GMC)

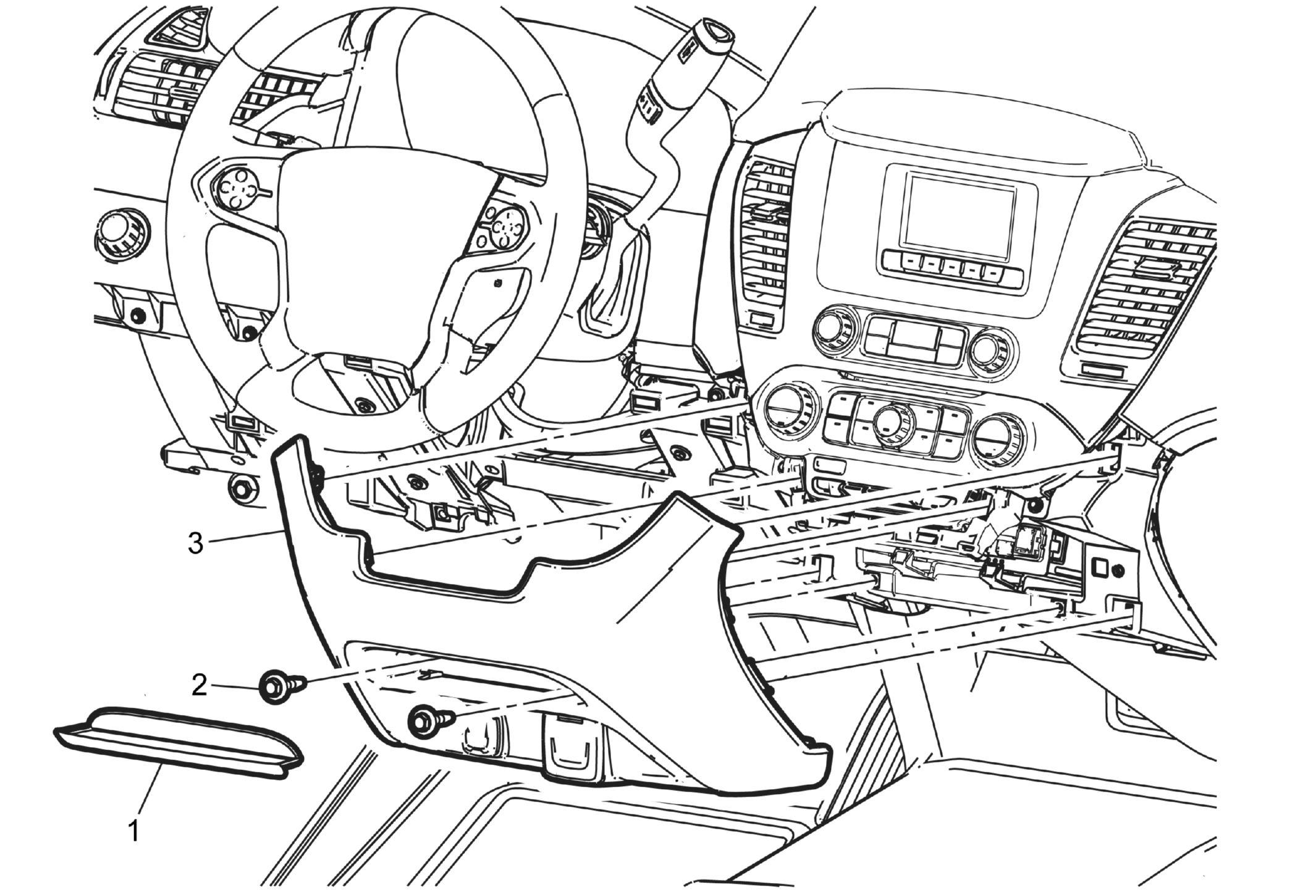

Fig 1: Instrument Panel Center Compartment (Chevrolet/GMC)
GM3639909Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the instrument panel knee bolster. Refer to Instrument Panel Knee Bolster Replacement (Chevrolet/GMC) .
1 Instrument Panel Center Compartment Liner
2 Instrument Panel Center Compartment Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
3 Instrument Panel Center Compartment

Procedures

  1. Use a flat bladed plastic trim tool in order to release the retainer clips securing the compartment to the instrument carrier.
  2. Disconnect electrical connections.
  3. Transfer components as necessary.
