Instrument Panel Compartment Replacement

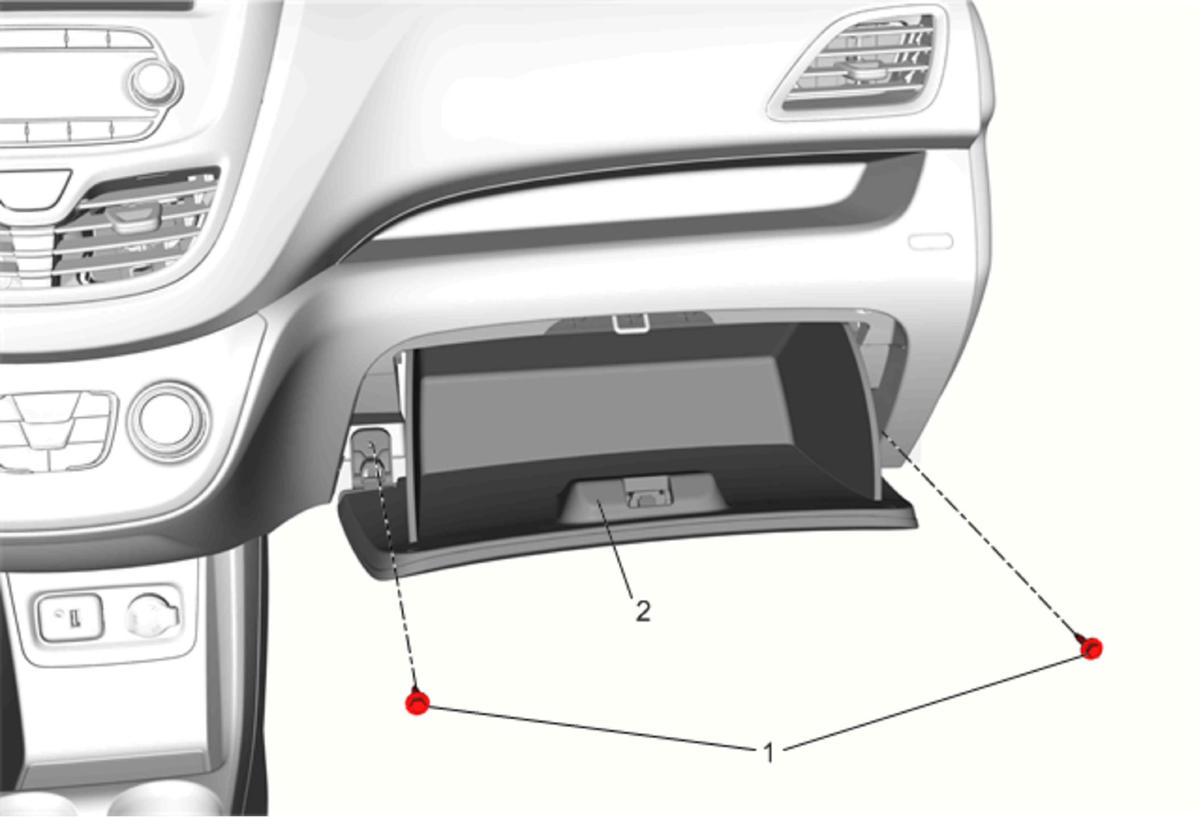

GM4052308
Callout Component Name
1 Instrument Panel Compartment Screw (Qty: 2)
CAUTION:

Refer to Fastener Caution .
2 Instrument Panel Compartment Assembly
Procedure
Pull out the instrument panel compartment gently.
