Counter Gear Shaft Disassemble

Special Tools

J-22912-B  Gear, Bearing Remover

For equivalent regional tools, refer to Special Tools .

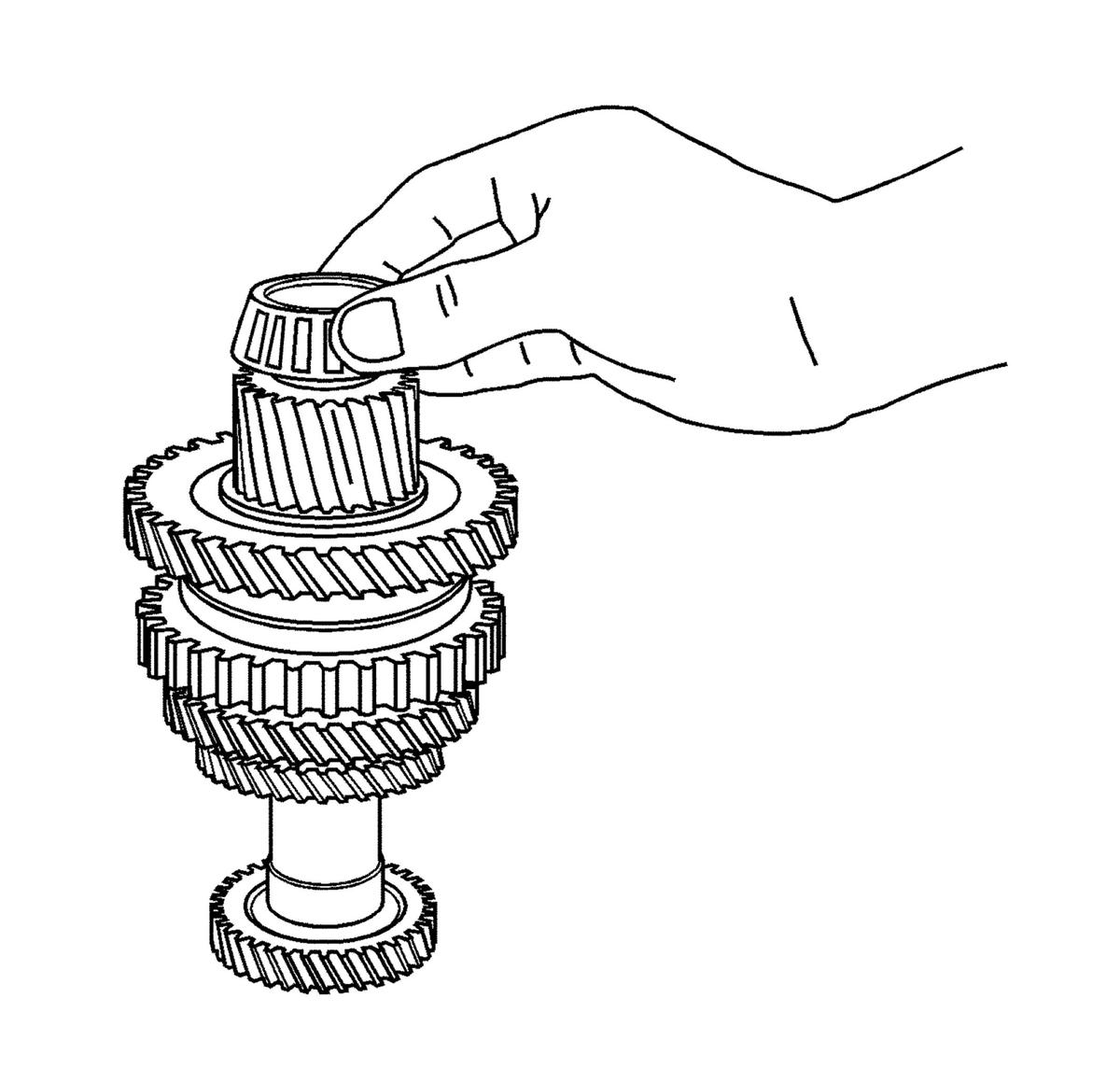

1. Courtesy of GENERAL MOTORS COMPANY

   Remove the gear unit. Refer to Transmission Disassemble .

2. Remove the counter shaft right side bearing.

3. Courtesy of GENERAL MOTORS COMPANY

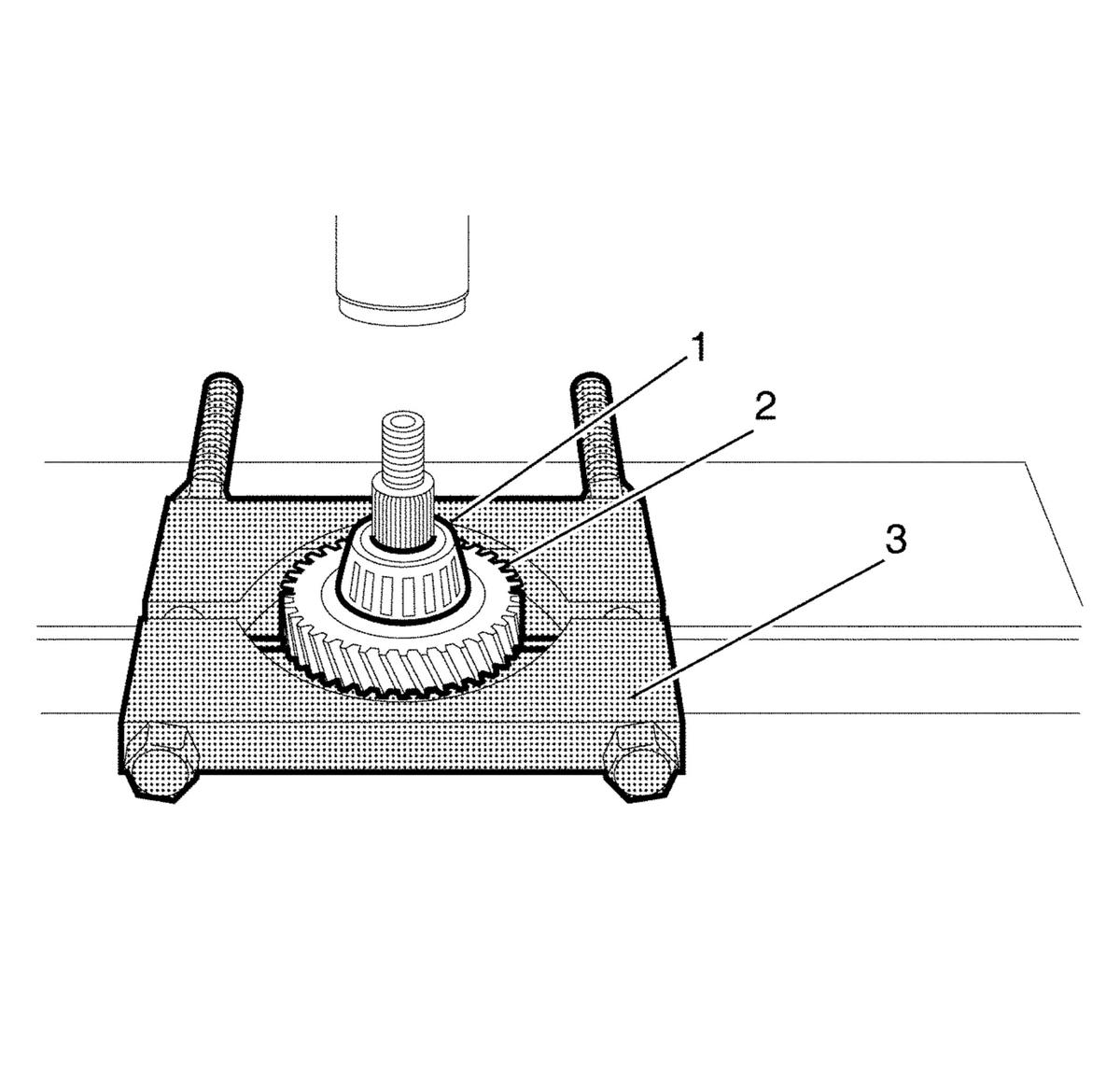

   Position the 4th gear to the J-22912-B  gear, bearing remover (3).

4. Remove the counter shaft left bearing (1) and 4th gear (2) using a press.

5. Courtesy of GENERAL MOTORS COMPANY

   Remove the counter shaft 3rd-4th gear spacer (1).

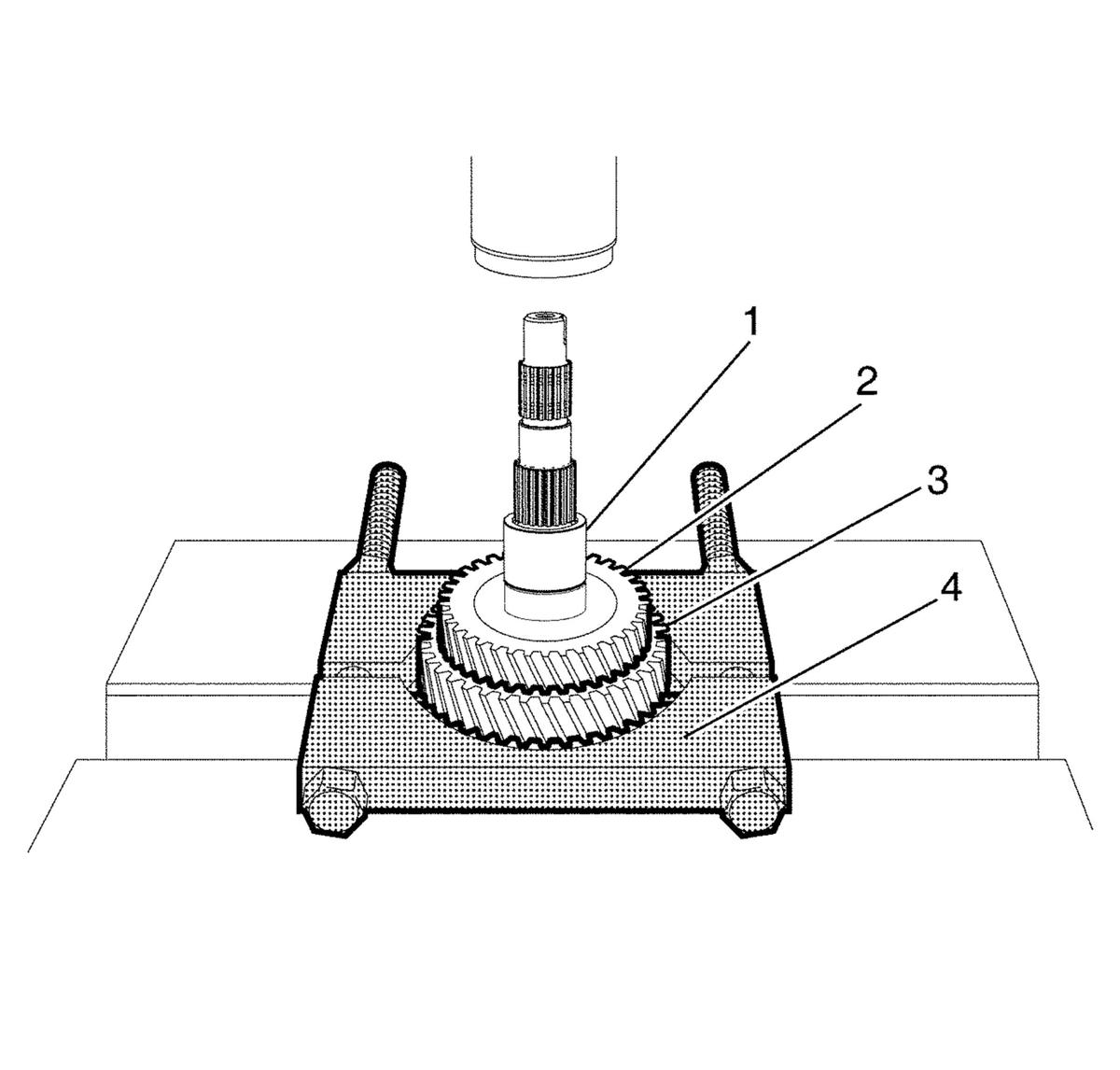

6. Position the 2nd gear to the J-22912-B  gear, bearing remover (4).
7. Remove the 3rd gear (2) and 2nd gear (3) with the press.

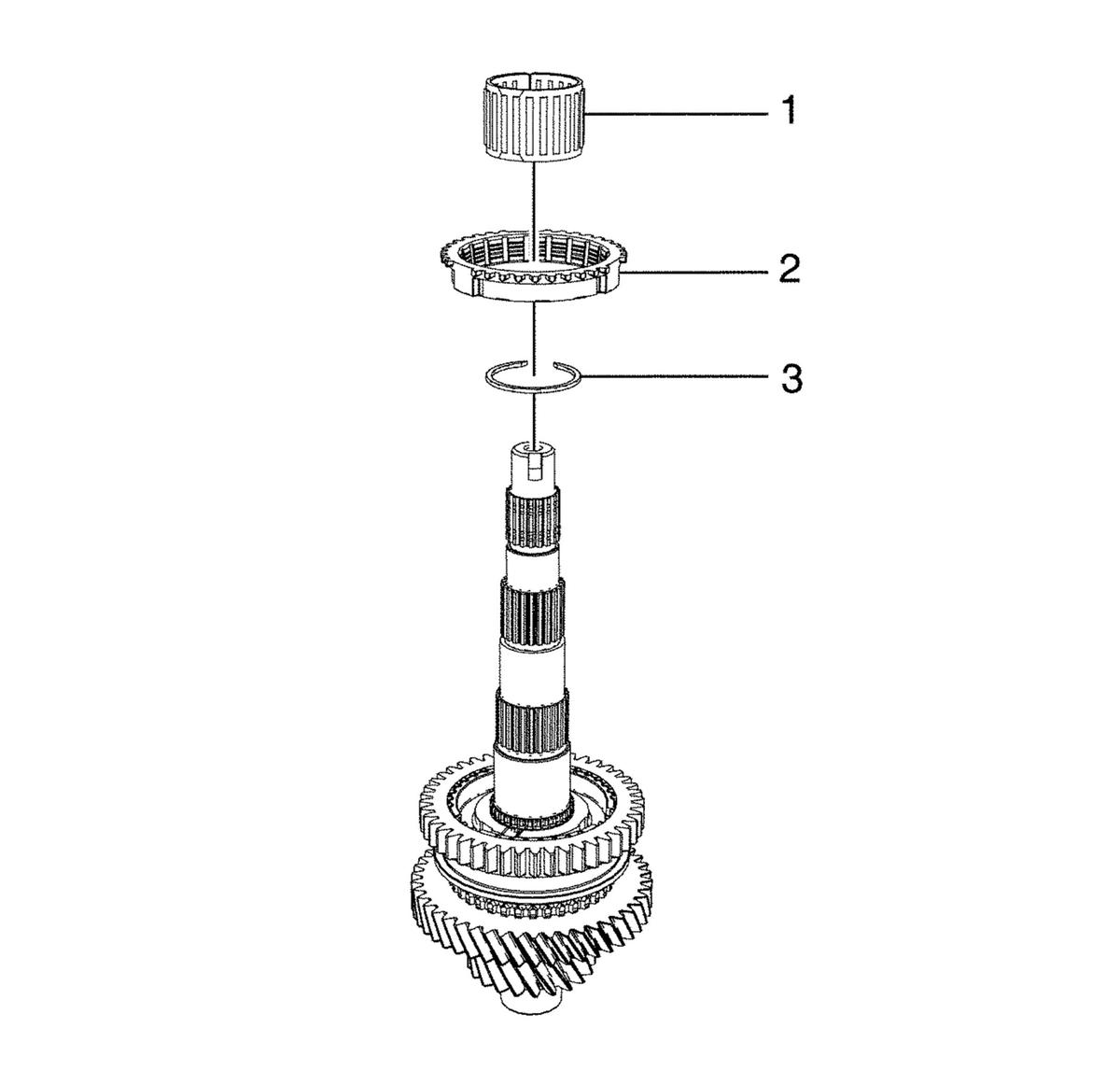

8. Fig 1: Identifying Counter Shaft 2nd Gear Bearing

   Courtesy of GENERAL MOTORS COMPANY

   Remove the counter shaft 2nd gear bearing (1).

9. Remove the 2nd gear synchronizer ring (2).
10. Remove the 1st-2nd gear synchronizer circlip (3).

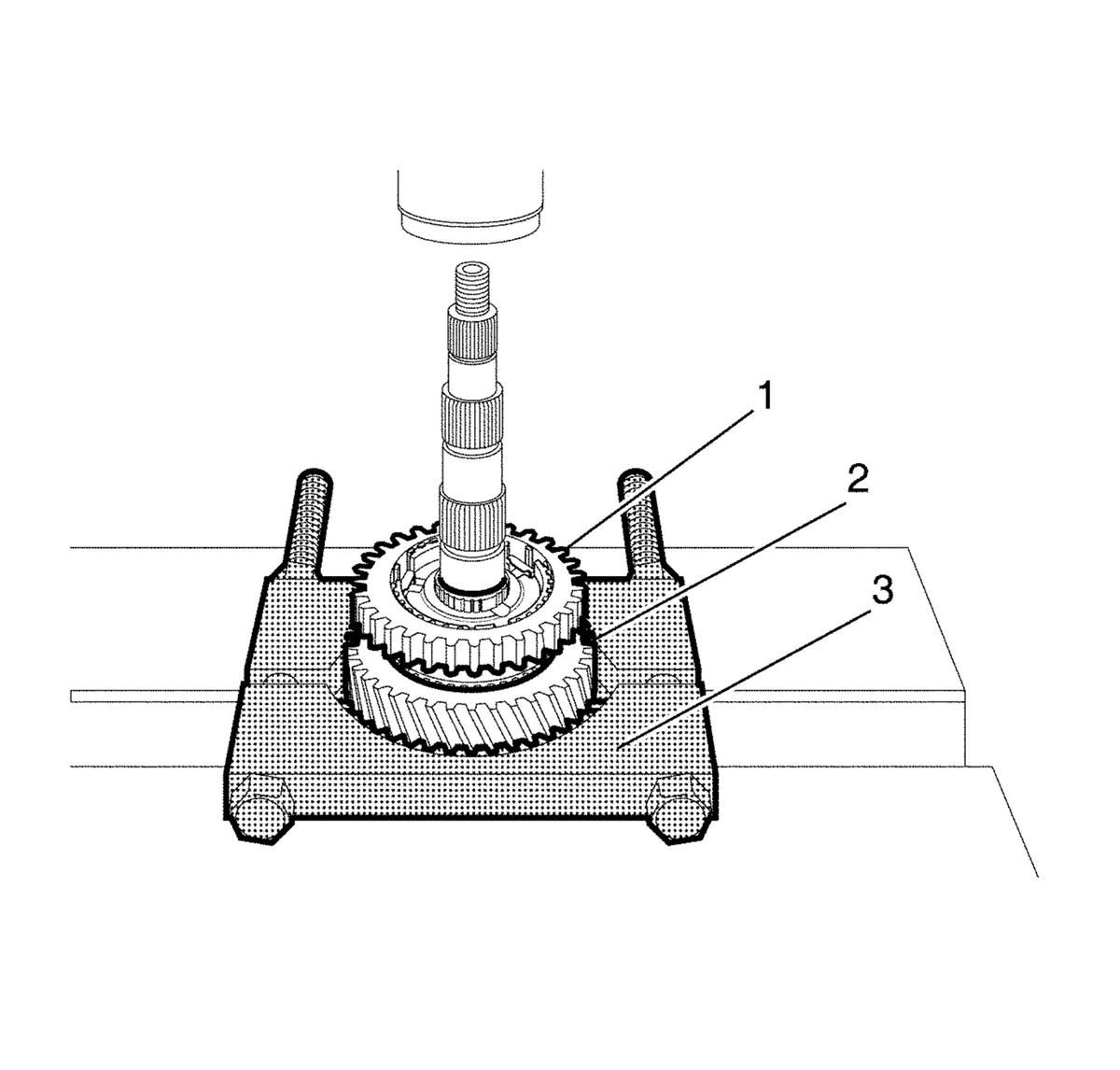

11. Courtesy of GENERAL MOTORS COMPANY

    Position the 1st gear to the J-22912-B  gear, bearing remover (3).

12. Remove the 1st-2nd gear synchronizer hub assembly (1), 1st gear synchronizer ring and 1st gear (2) with the press.
13. Remove the 1st gear synchronizer ring from the 1st gear.

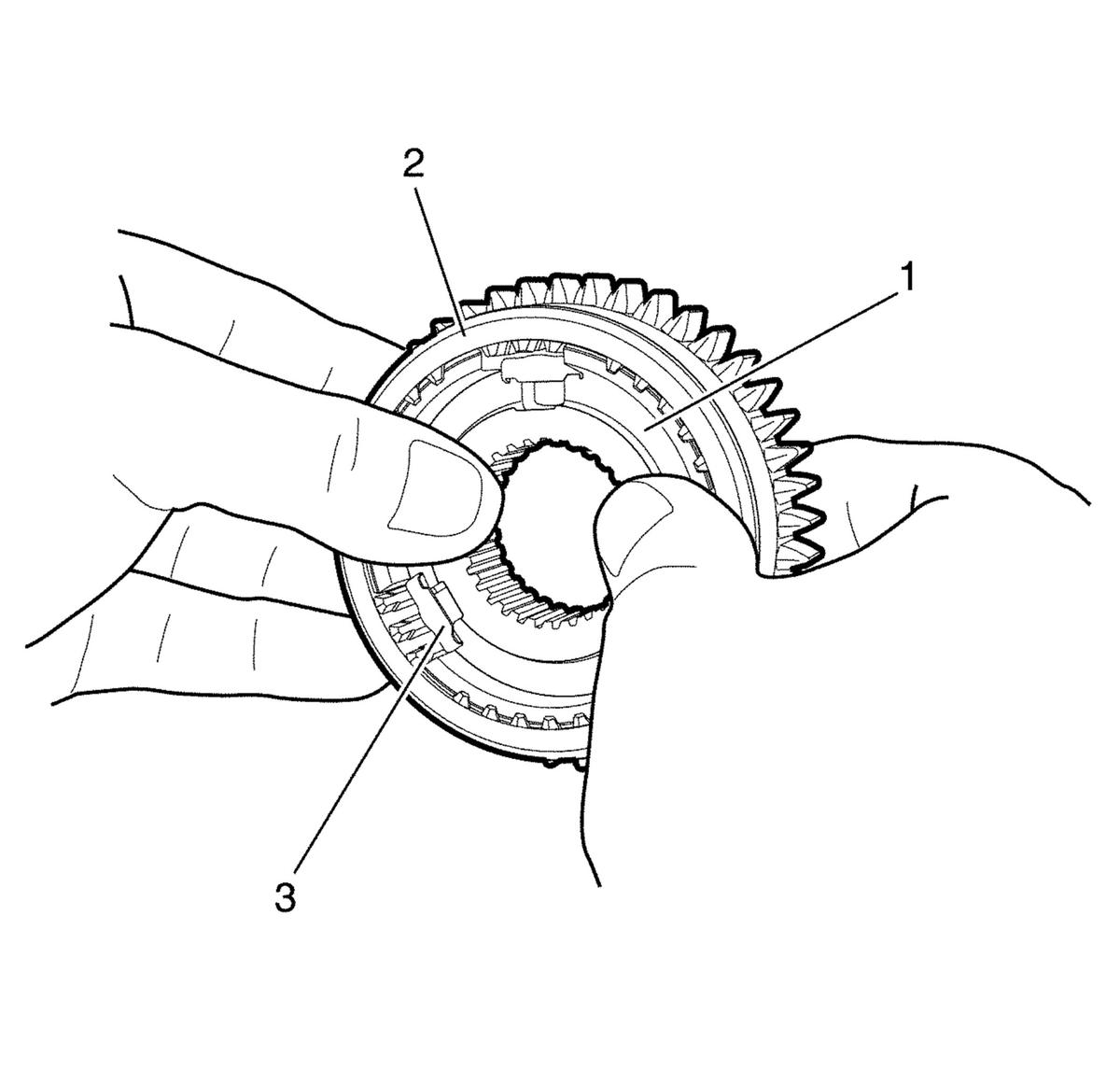

14. Courtesy of GENERAL MOTORS COMPANY

    Push the hub (1) from the 1st-2nd gear synchronizer hub assembly.

15. Disassemble the synchronizer sleeve (2) and key units (3).

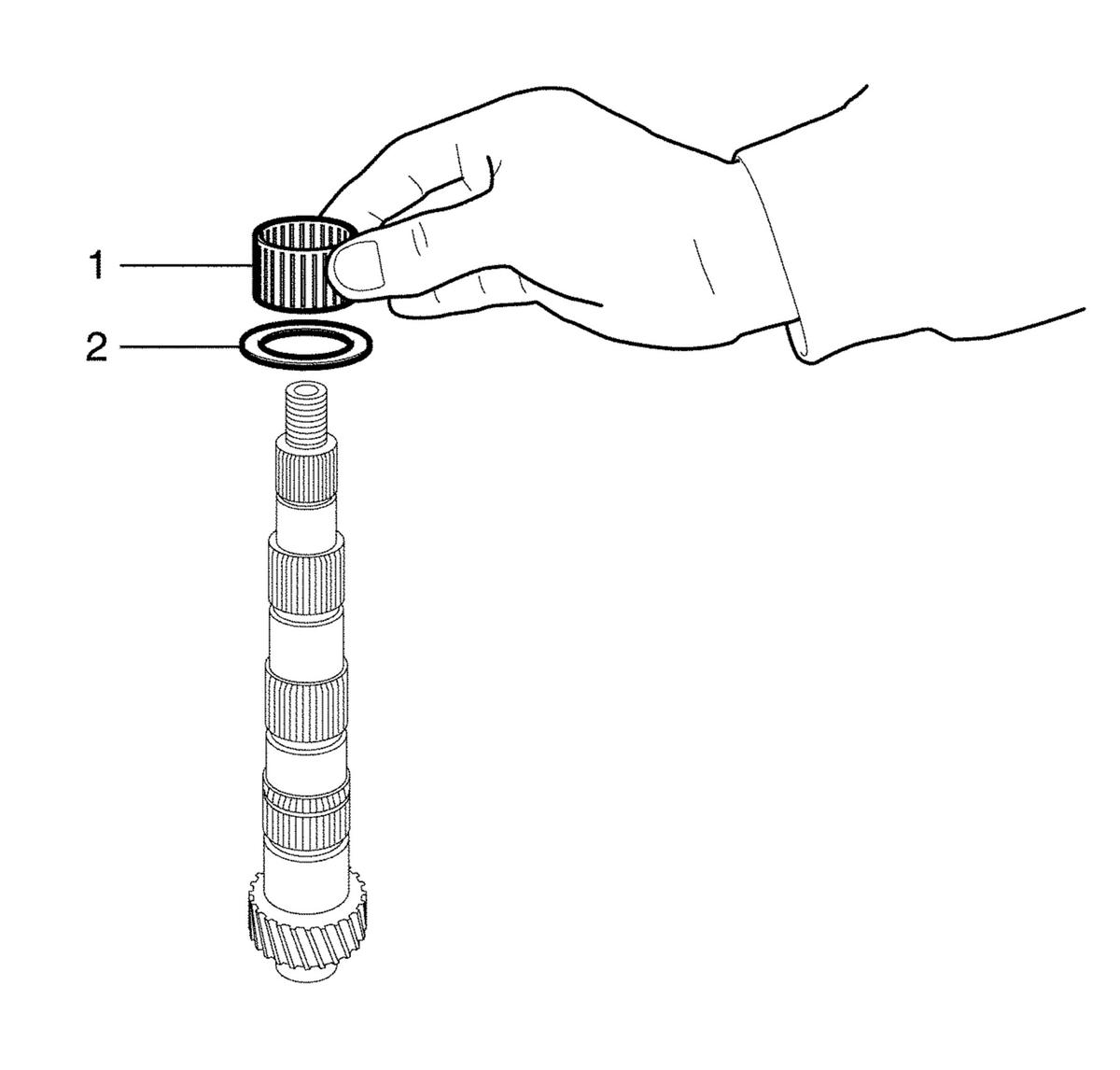

16. Courtesy of GENERAL MOTORS COMPANY

    Remove the counter shaft 1st gear bearing (1) and the 1st gear spacer (2).
