Transmission Disassemble

WARNING: This page is about a different variant/trim than selected.

Special Tools

DT-586 Universal Seal Remover
DT-7004 Sliding Hammer
DT-49084 Input Shaft Holder
DT-50182 Backup Light Switch Remover/Installer
DT-50500 Differential Bearing Cup Remover
DT-50504 Counter Shaft Bearing Cup Remover/Installer
DT-50505 Bridge
DT-727 Remover
GE-328 - B Puller

For equivalent regional tools, refer to Special Tools .

Remove the manual transmission. Refer to Transmission Replacement (With 1.0L Engine) Transmission Replacement (With 1.4L Engine) .
Courtesy of GENERAL MOTORS COMPANY

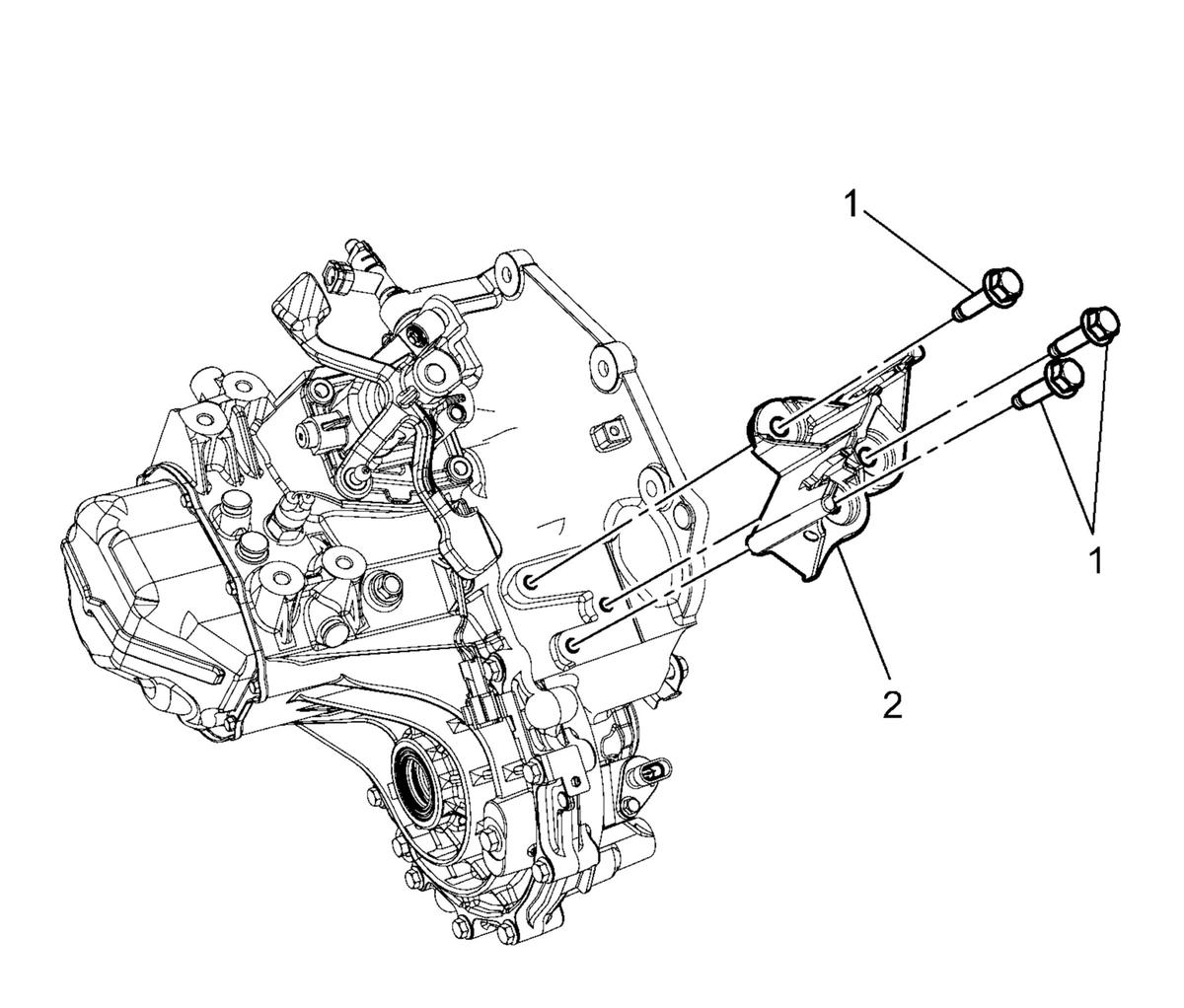

Remove the selector and shift lever cable bracket bolts (1).
Remove the selector and shift lever cable bracket (2).
Courtesy of GENERAL MOTORS COMPANY

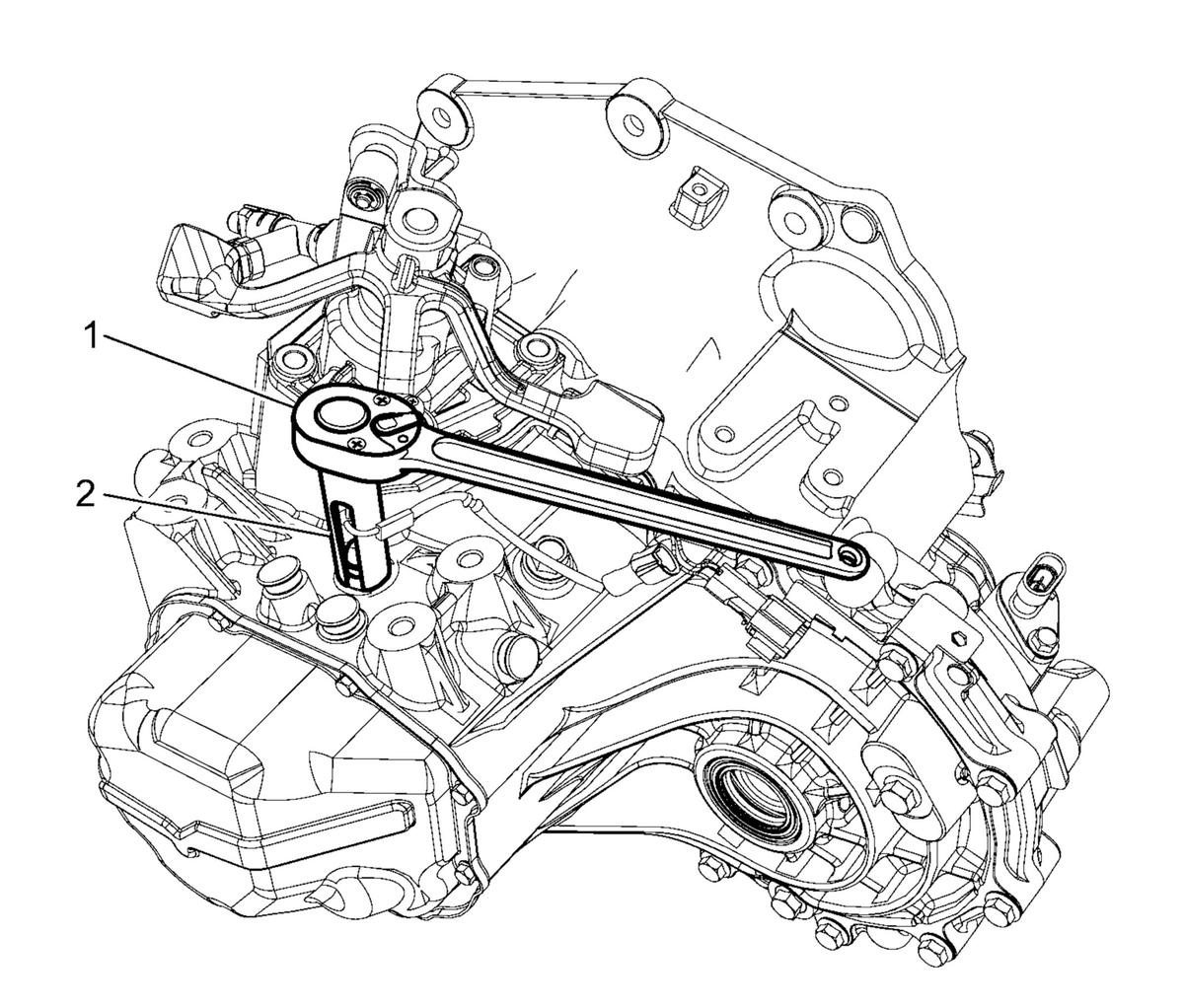

Remove the backup light switch (2) using the DT-50182 backup lamp switch remover/installer (1).
Courtesy of GENERAL MOTORS COMPANY

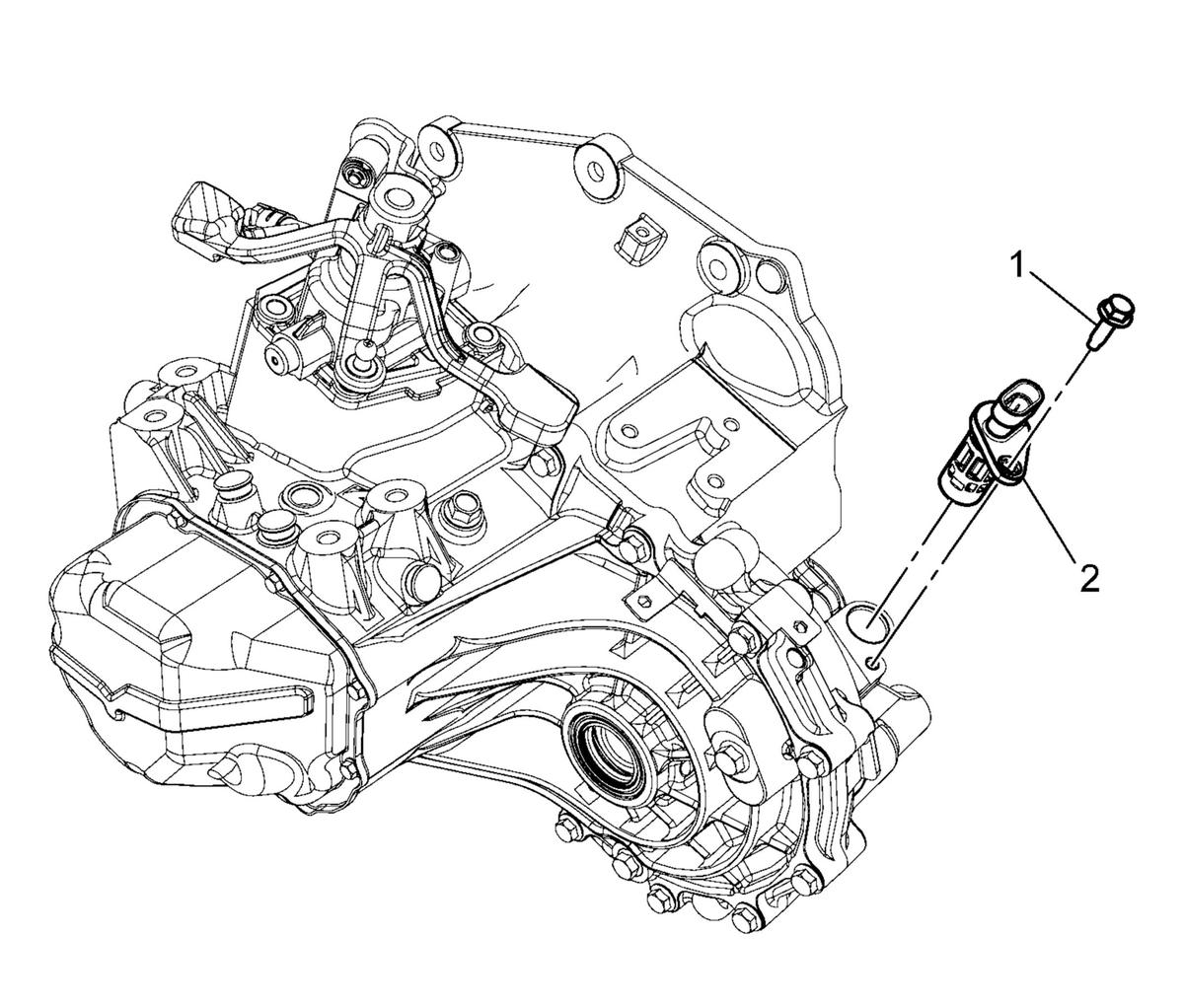

If equipped, remove the vehicle speed sensor assembly bolt (1).
If equipped, remove the vehicle speed sensor assembly (2).
Courtesy of GENERAL MOTORS COMPANY

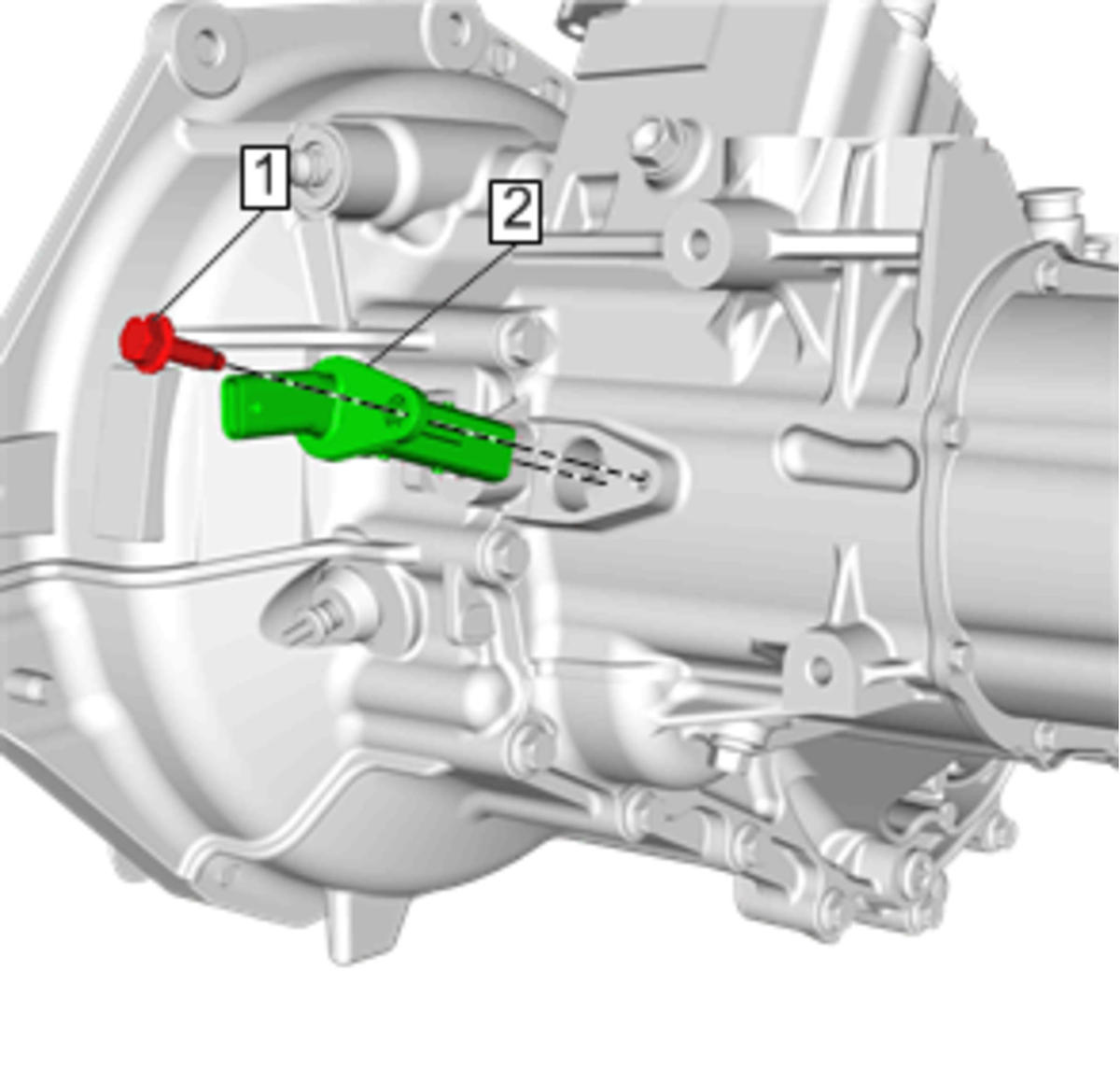

If equipped, remove the input speed sensor bolt (1).
If equipped, remove the input speed sensor (2).
Courtesy of GENERAL MOTORS COMPANY

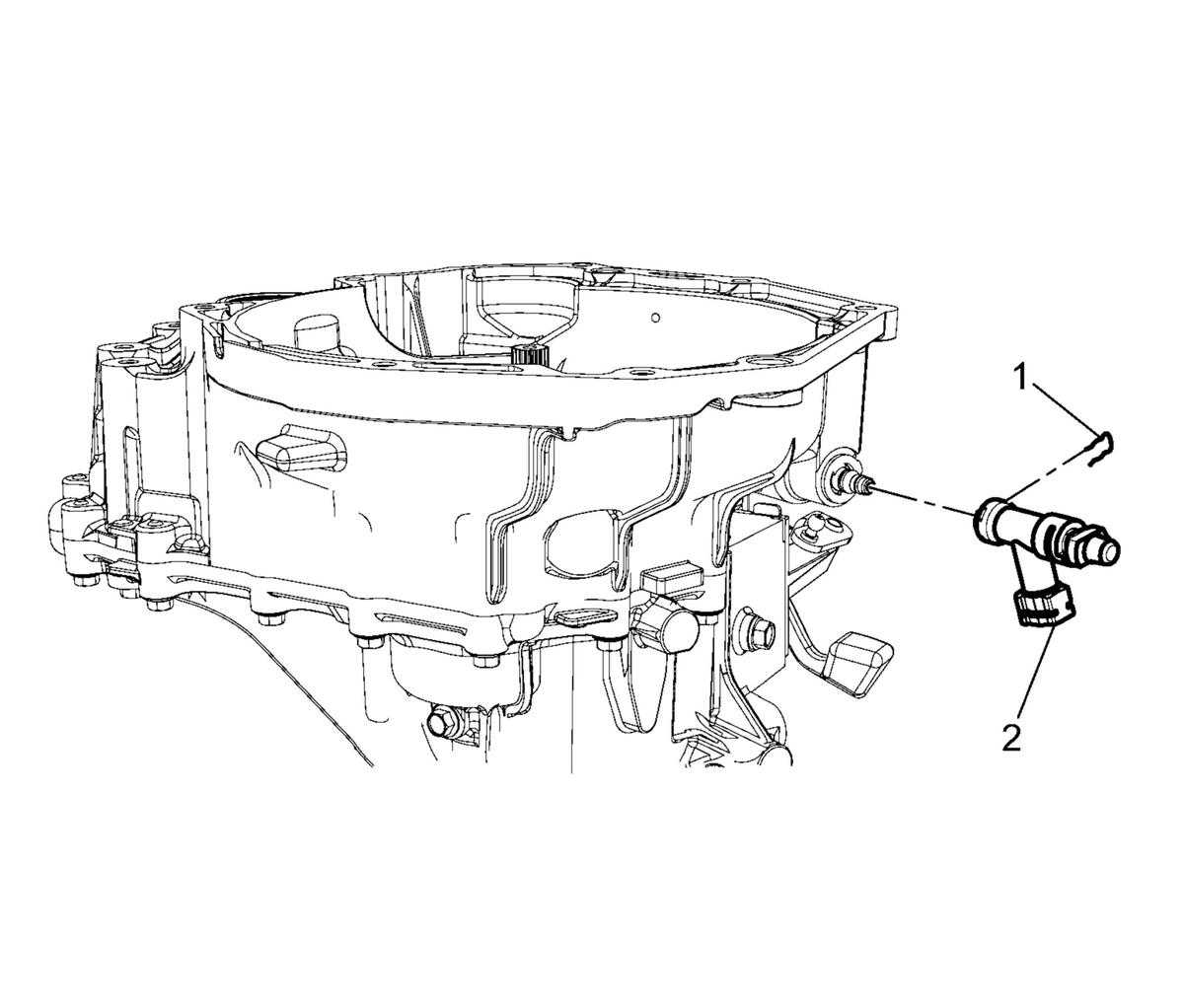

Remove the clutch actuator cylinder pipe elbow clip (1).
Remove the clutch actuator cylinder pipe elbow (2).
Courtesy of GENERAL MOTORS COMPANY

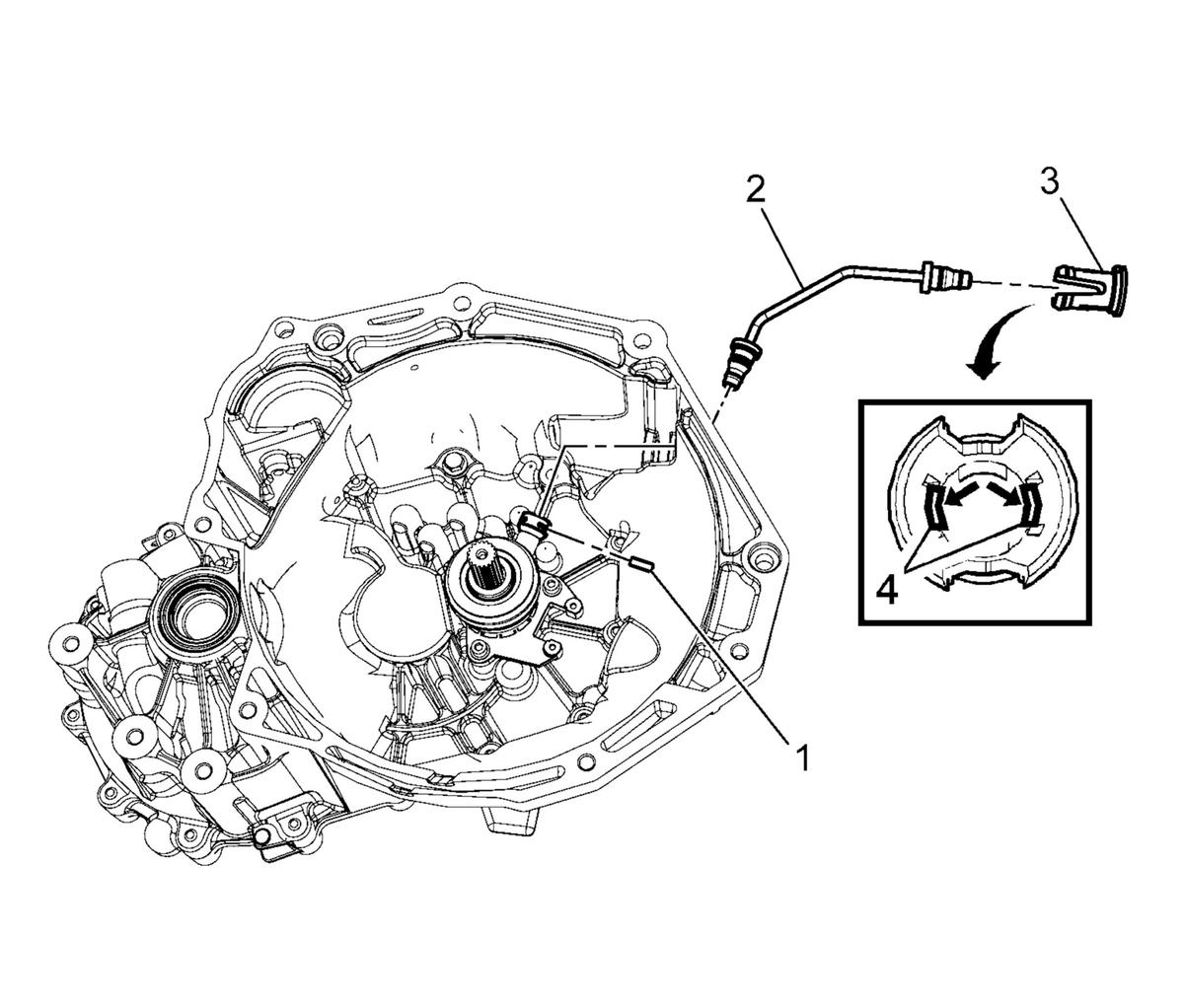

Remove the clutch actuator cylinder clip (1).
Remove the clutch actuator cylinder pipe (2) and sleeve (3) from transmission right side case.

NOTE:

Push the key (4) of the clutch actuator cylinder pipe sleeve using a screw driver.

Remove the clutch actuator cylinder pipe sleeve (3) from the clutch actuator cylinder pipe.
Courtesy of GENERAL MOTORS COMPANY

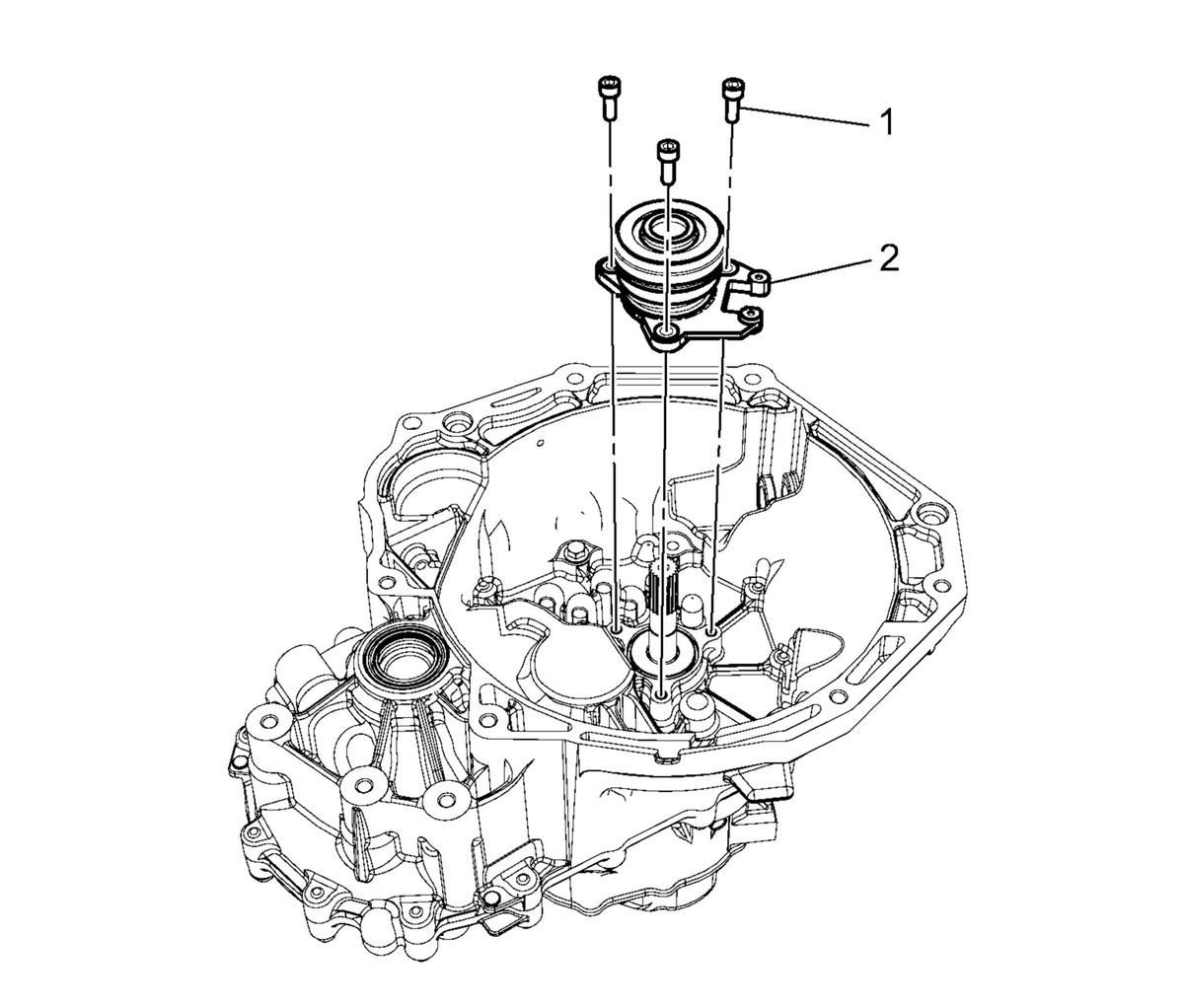

Remove the 3 clutch actuator cylinder bolts (1).
Remove the clutch actuator cylinder (2).
Courtesy of GENERAL MOTORS COMPANY

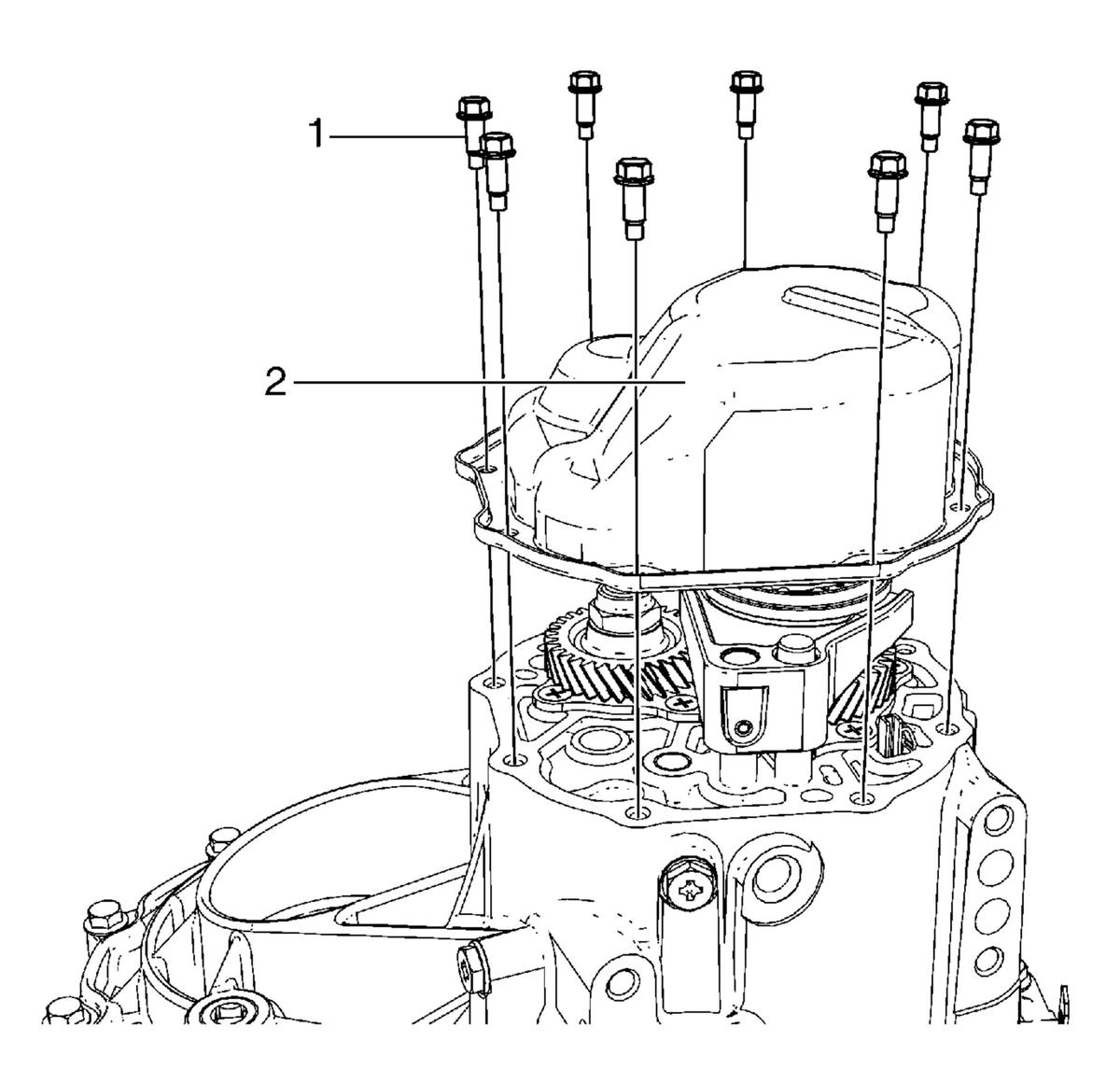

Remove 8 side cover bolts (1).
Remove side cover (2) using a rubber hammer.
Remove the sealant on the side cover and the transmission case.
Courtesy of GENERAL MOTORS COMPANY

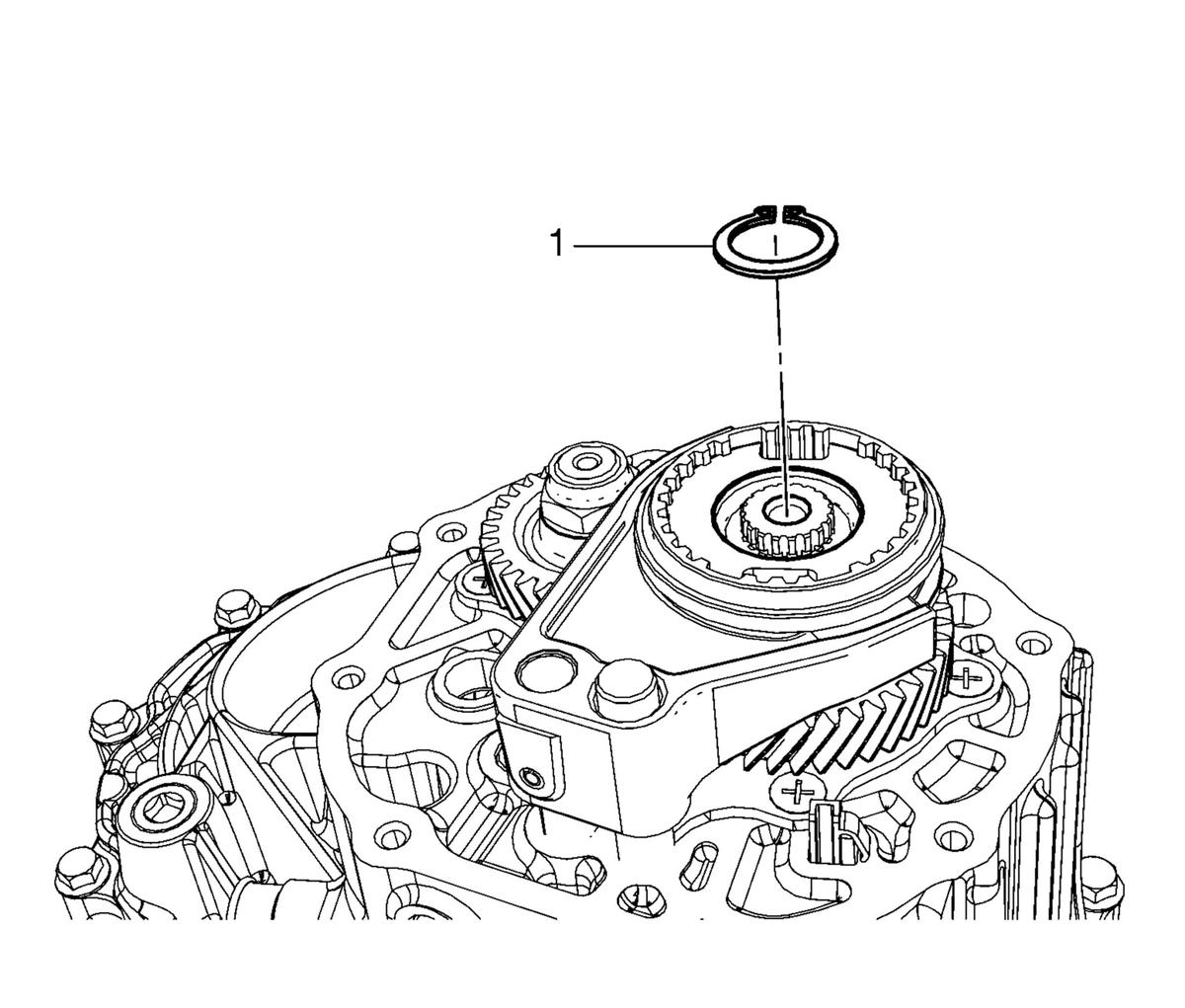

Remove the input shaft circlip (1).
Courtesy of GENERAL MOTORS COMPANY

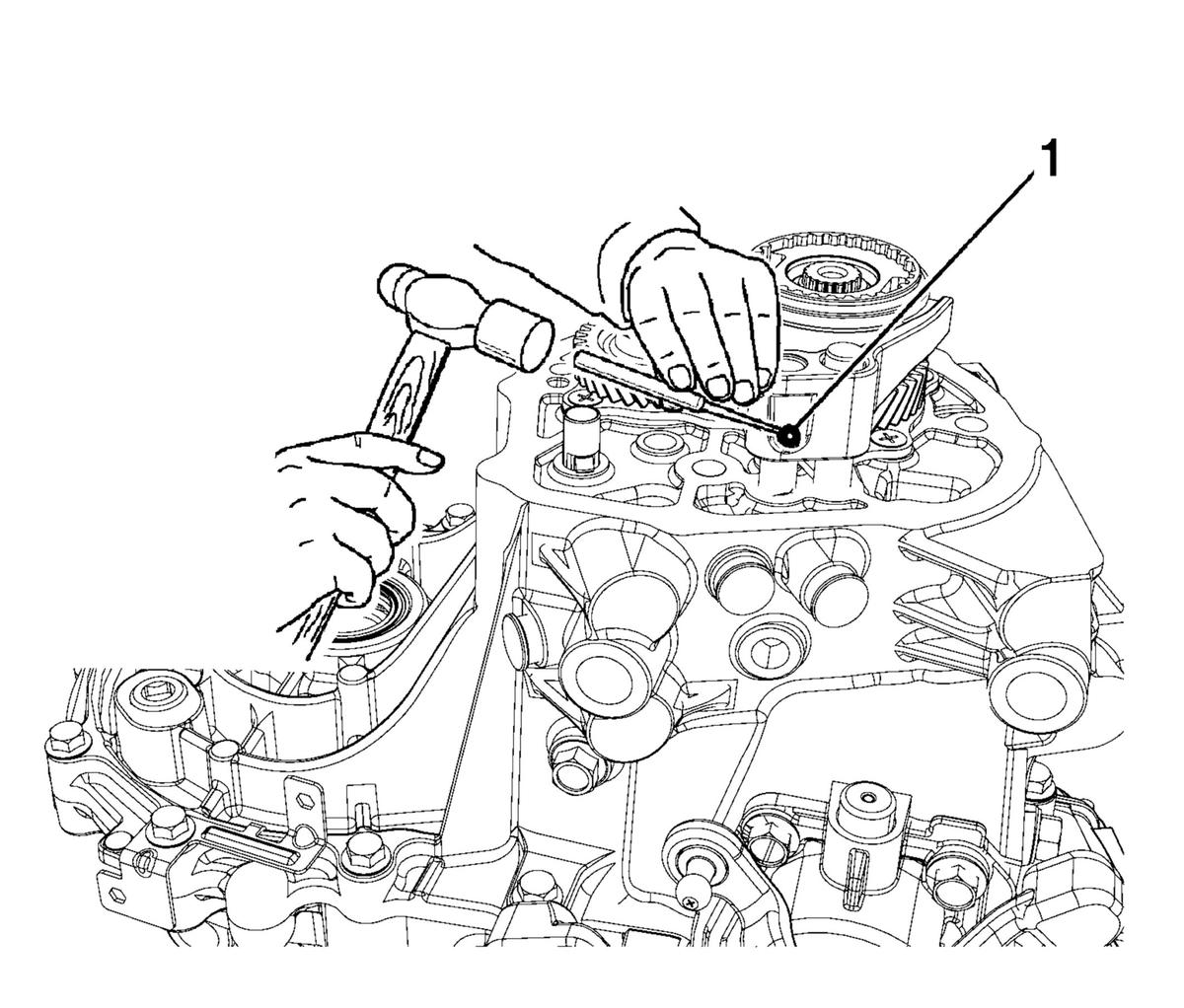

Remove the 5th gear shift fork pin (1) using a pin punch and a hammer.
Courtesy of GENERAL MOTORS COMPANY

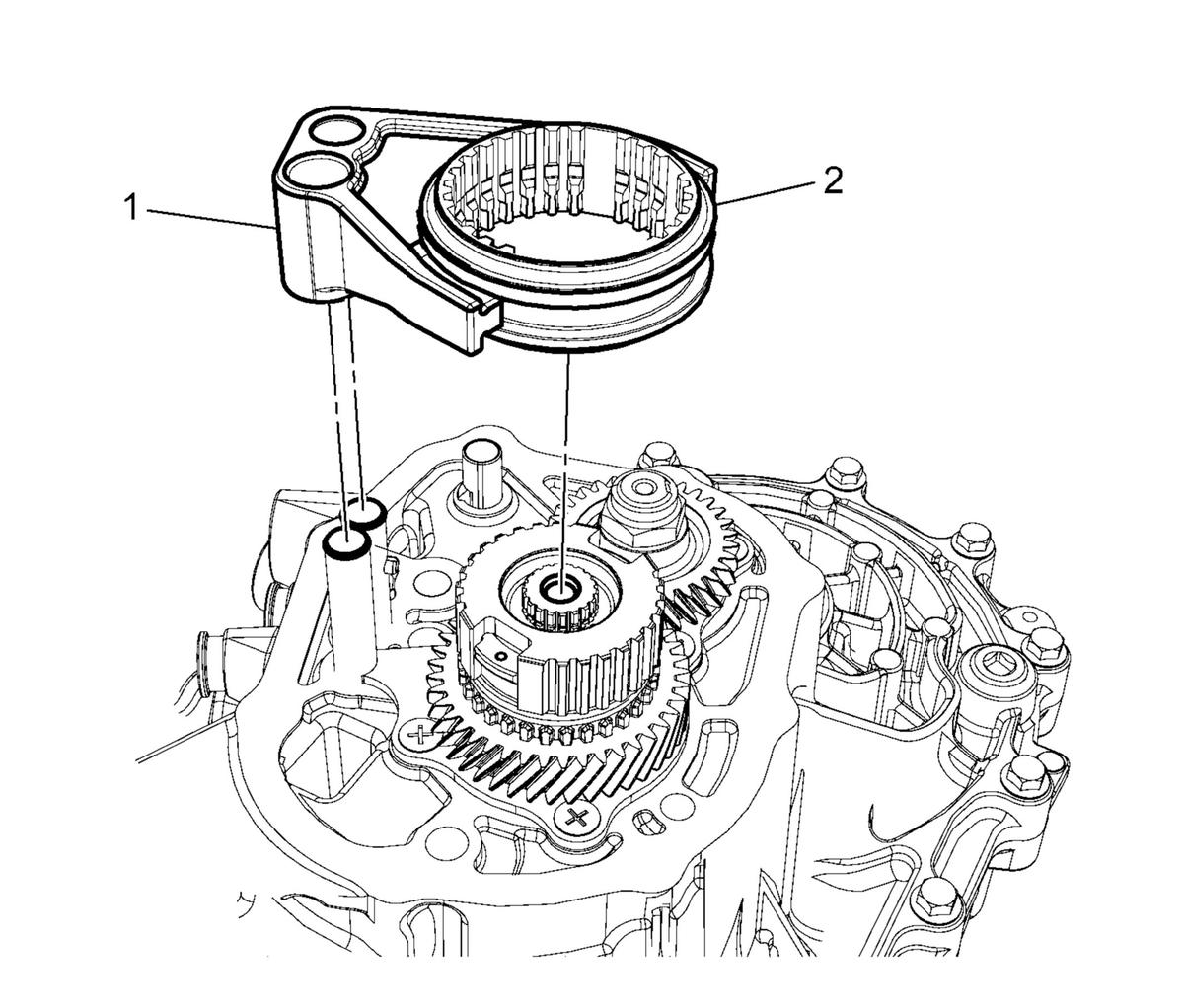

Pull and remove the 5th gear fork (1) and the synchronizer sleeve (2) together.
Courtesy of GENERAL MOTORS COMPANY

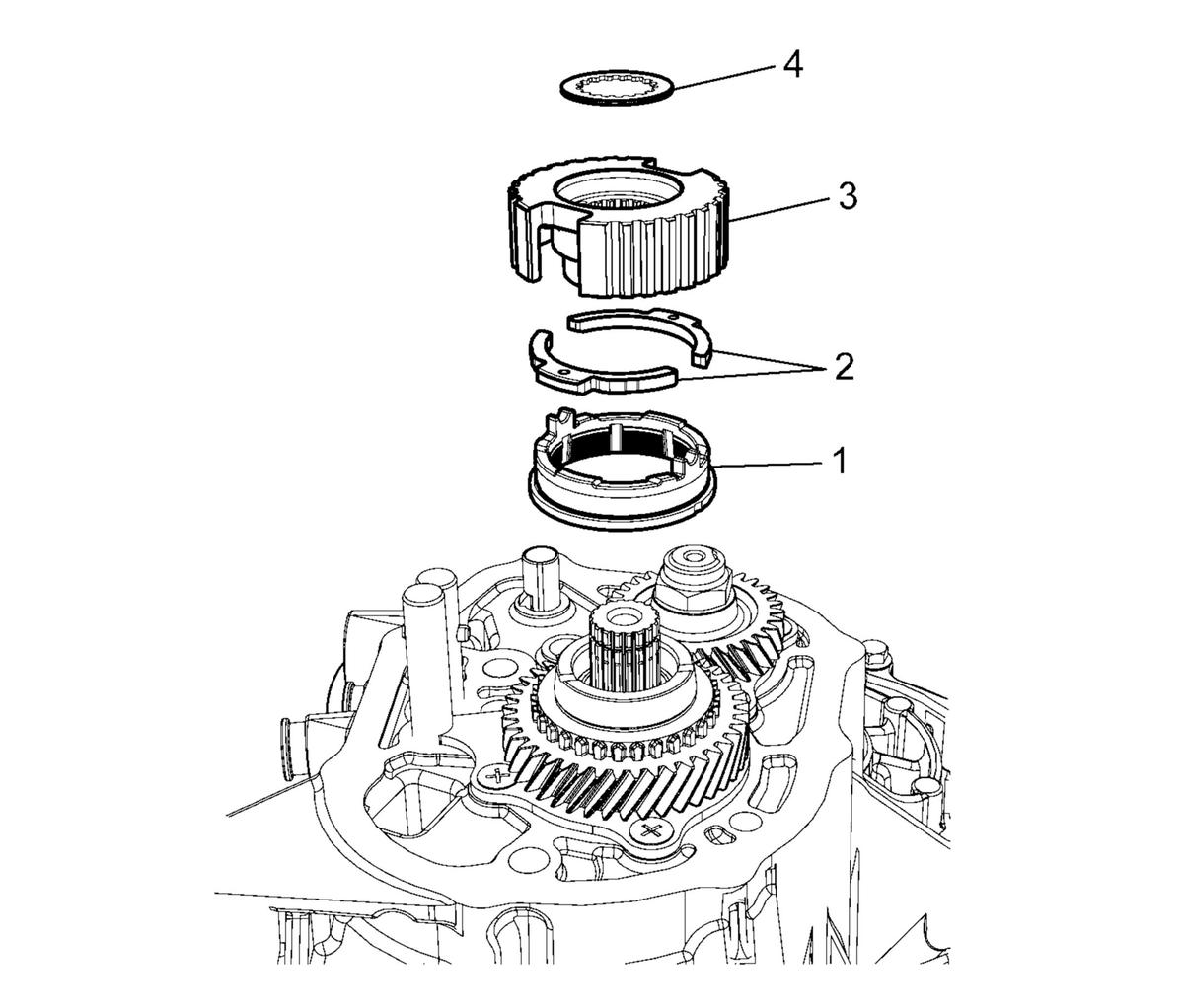

Remove the 5th gear synchronizer hub plate (4) from the 5th synchronizer hub.
Remove the 5th synchronizer hub (3), 2 levers (2) and the synchronizer ring (1).
Fig 1: Identifying Input Shaft 5th Gear
Courtesy of GENERAL MOTORS COMPANY

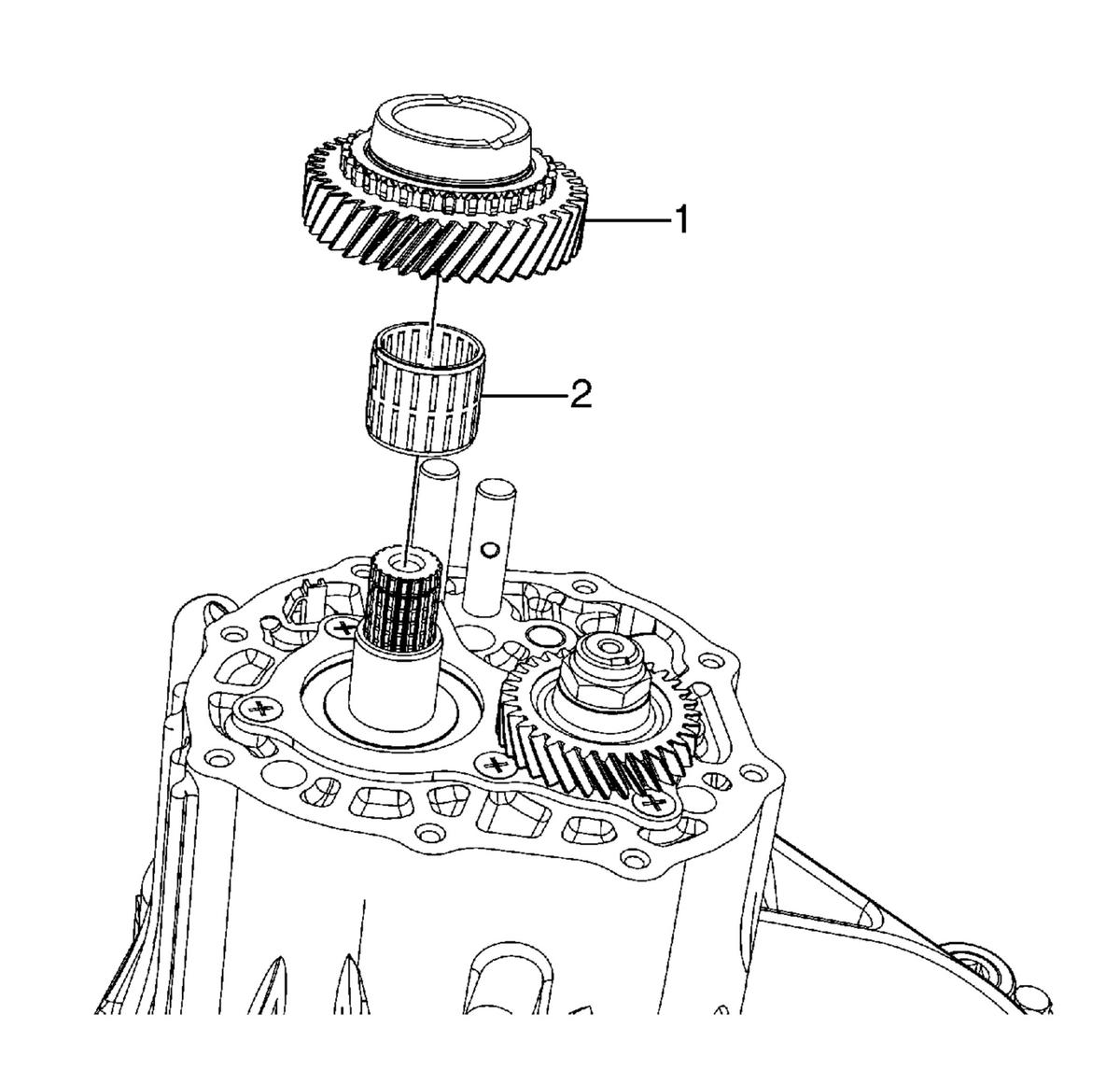

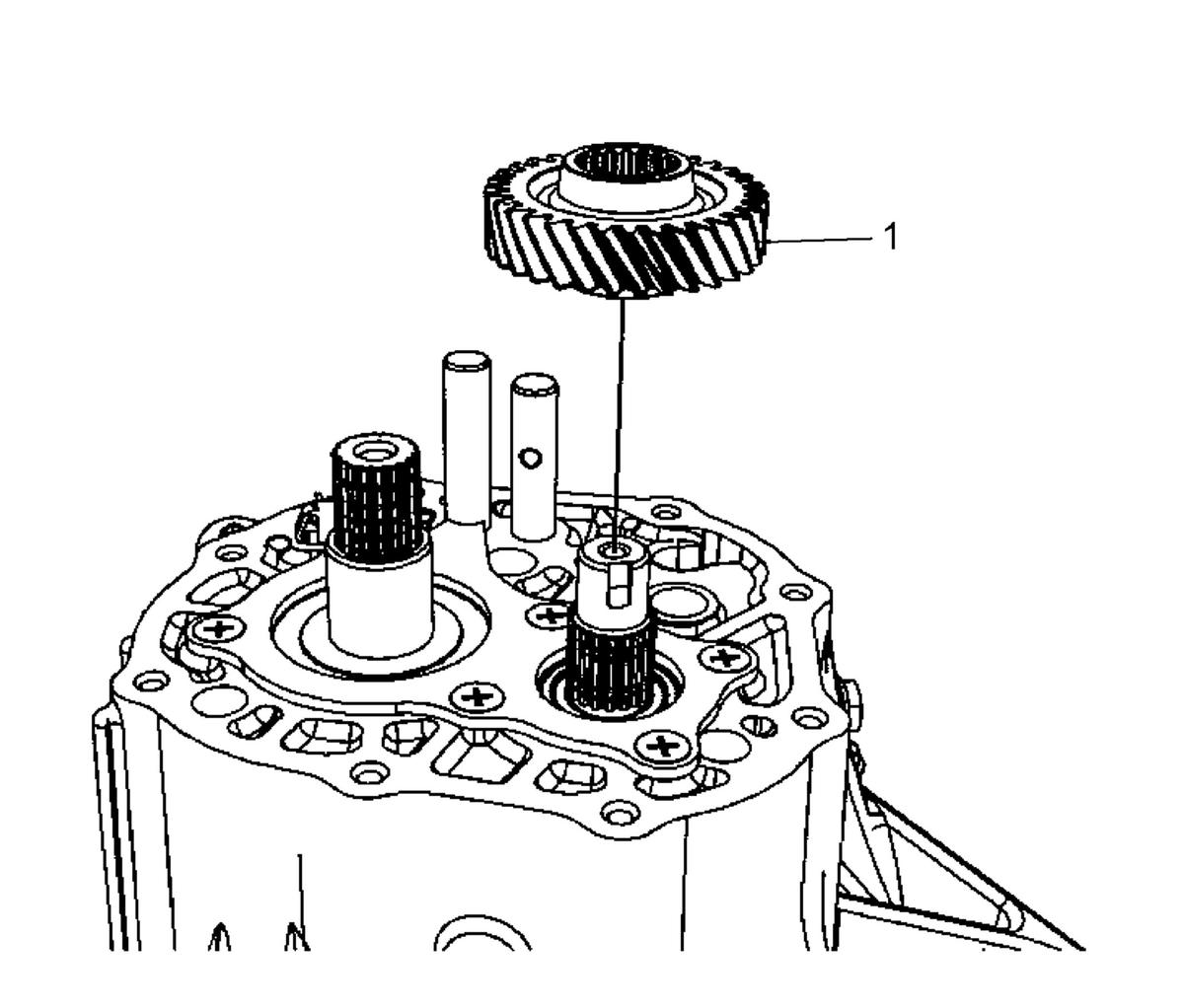

Pull and remove the input shaft 5th gear (1).
Remove the input shaft 5th gear bearing (2).
Courtesy of GENERAL MOTORS COMPANY

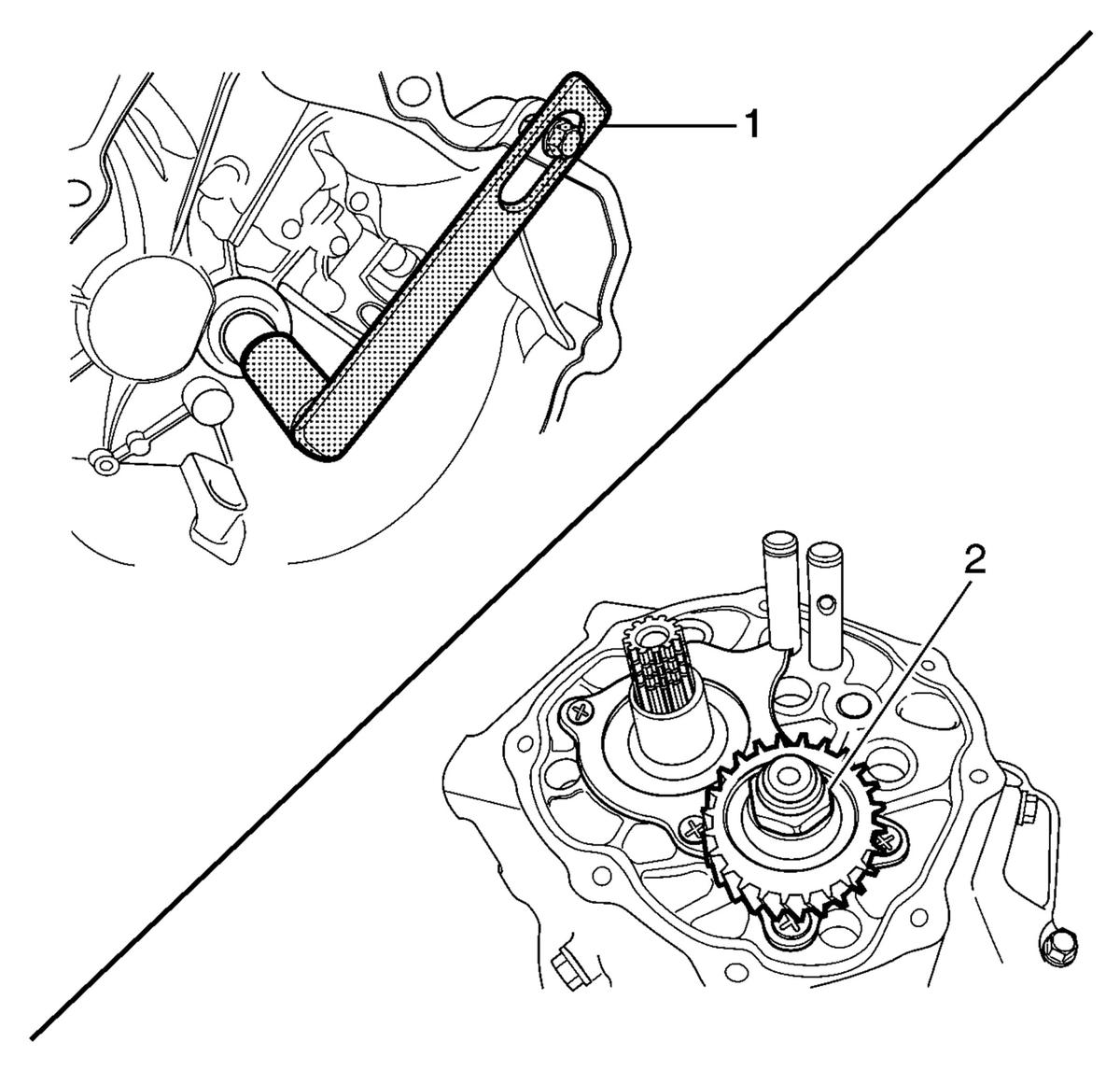

Hold the input shaft using the DT-49084 input shaft holder (1).
Remove the caulking and the counter shaft 5th gear nut (2).
Courtesy of GENERAL MOTORS COMPANY

Remove the counter shaft 5th gear (1) from the counter shaft.
Courtesy of GENERAL MOTORS COMPANY

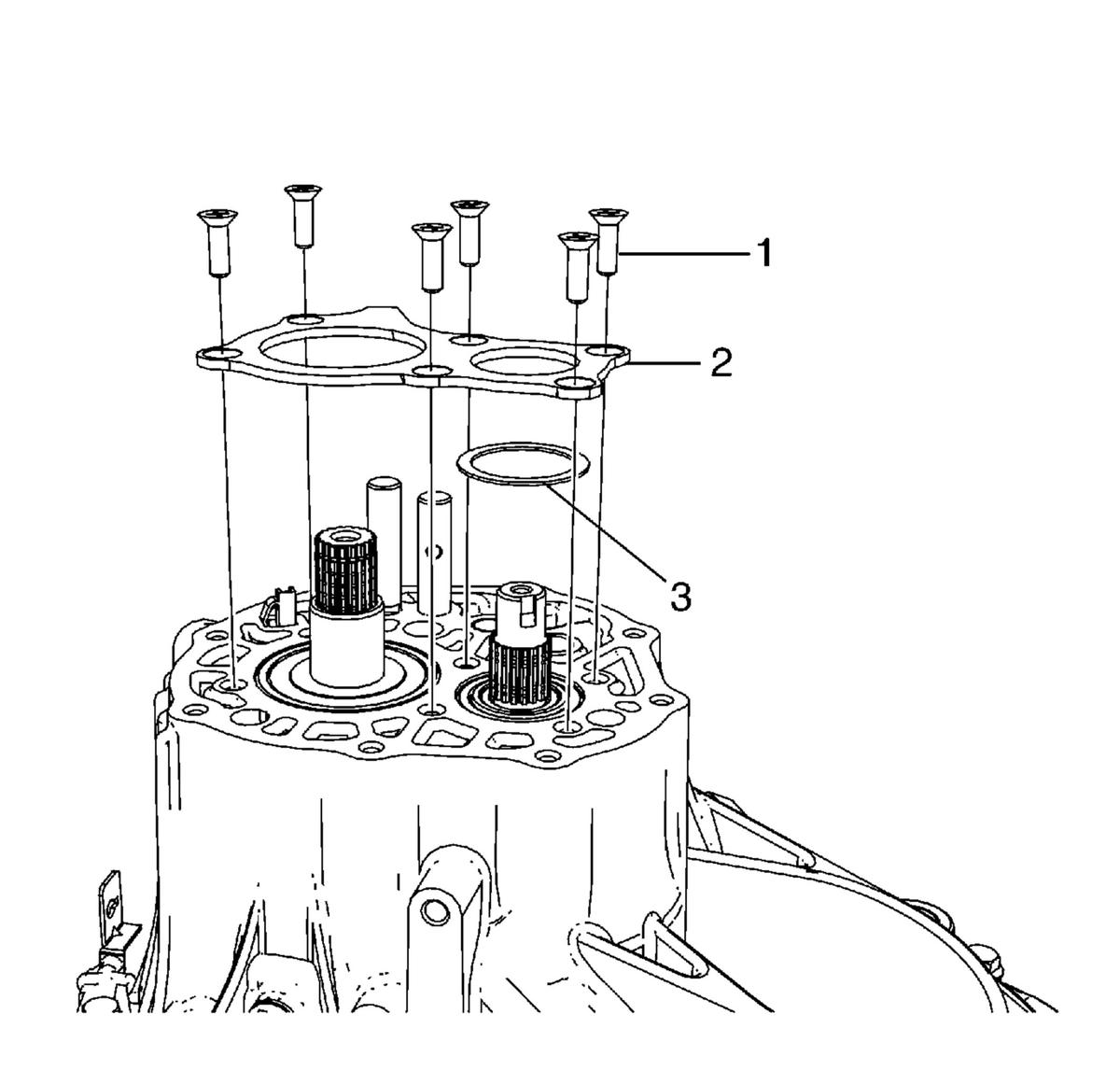

Remove 6 left case plate screws (1).
Remove the left case plate (2).
Remove the countershaft bearing shim (3).
Courtesy of GENERAL MOTORS COMPANY

NOTE:
The case (Left) cannot be removed without removing the reverse idle gear shaft bolt.

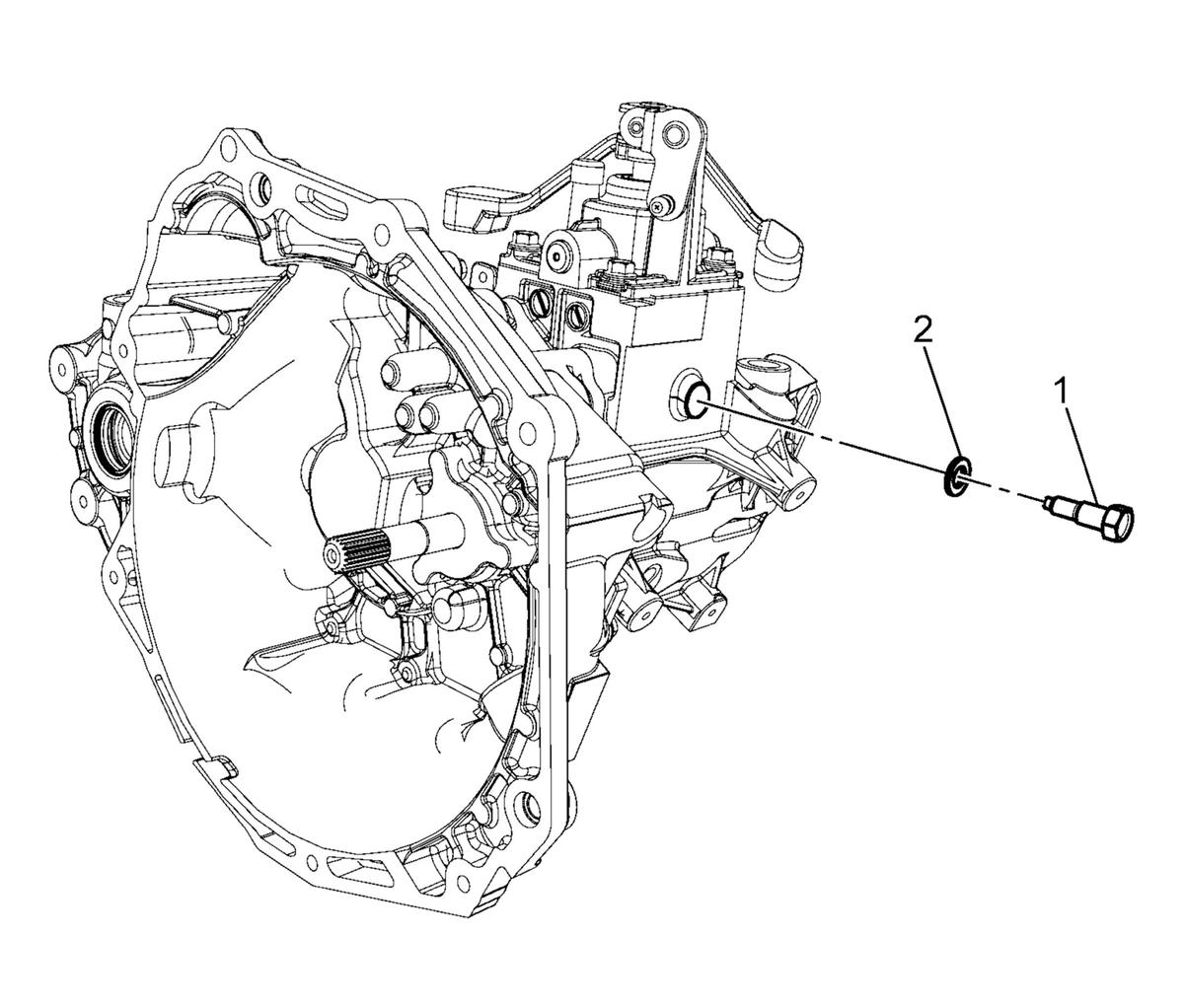

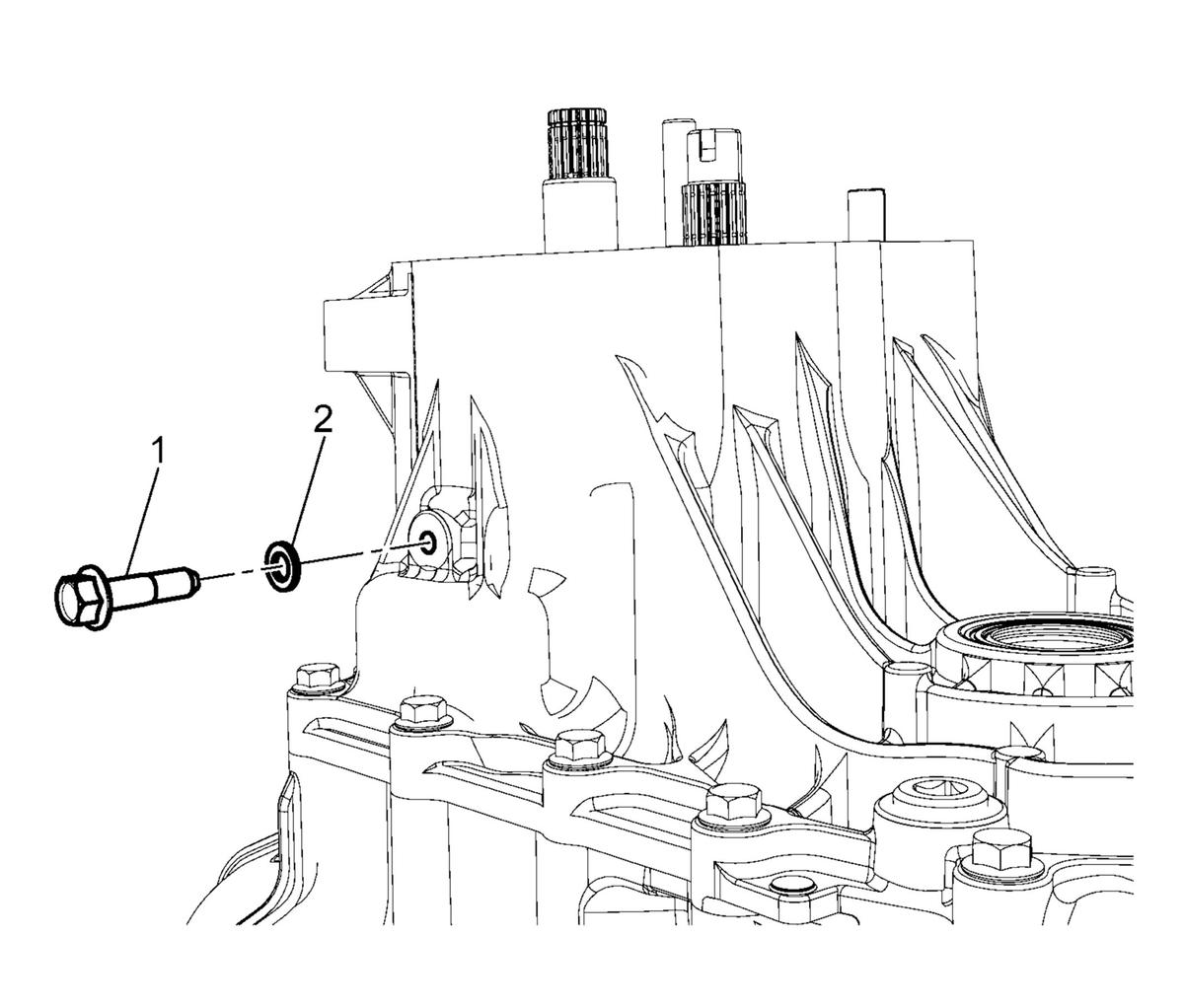

Remove the reverse idle gear shaft bolt (1) and gasket (2).
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Certainly remove the shift interlock bolt. Otherwise, shift control housing assembly cannot be removed.

Remove the shift interlock washer (2) and bolt (1).
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Shift the transmission into NEUTRAL.

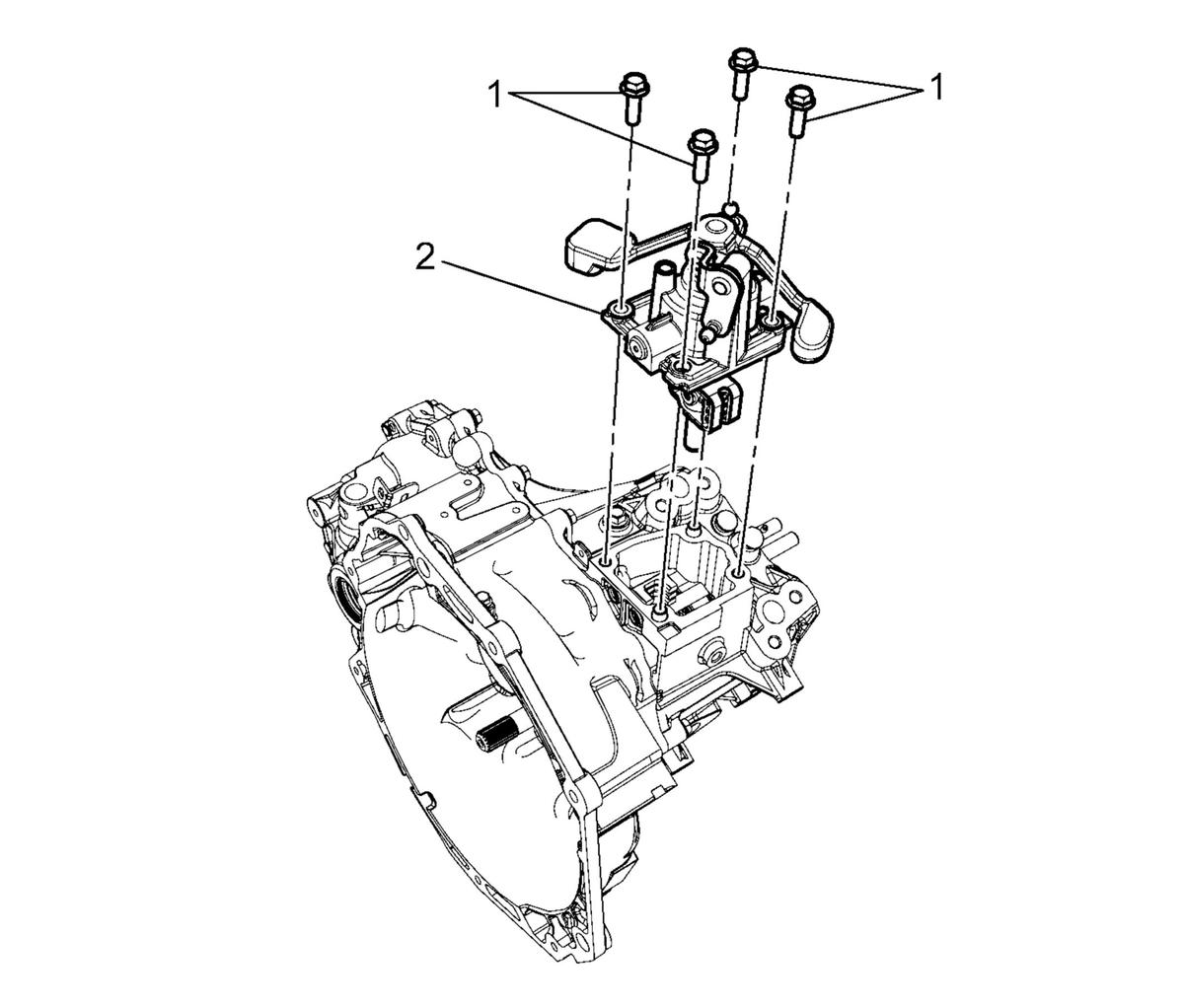

Remove the 4 shift control housing bolts (1).
Remove the shift control housing assembly (2).
Remove the sealant on the shift control housing and the transmission case.
Courtesy of GENERAL MOTORS COMPANY

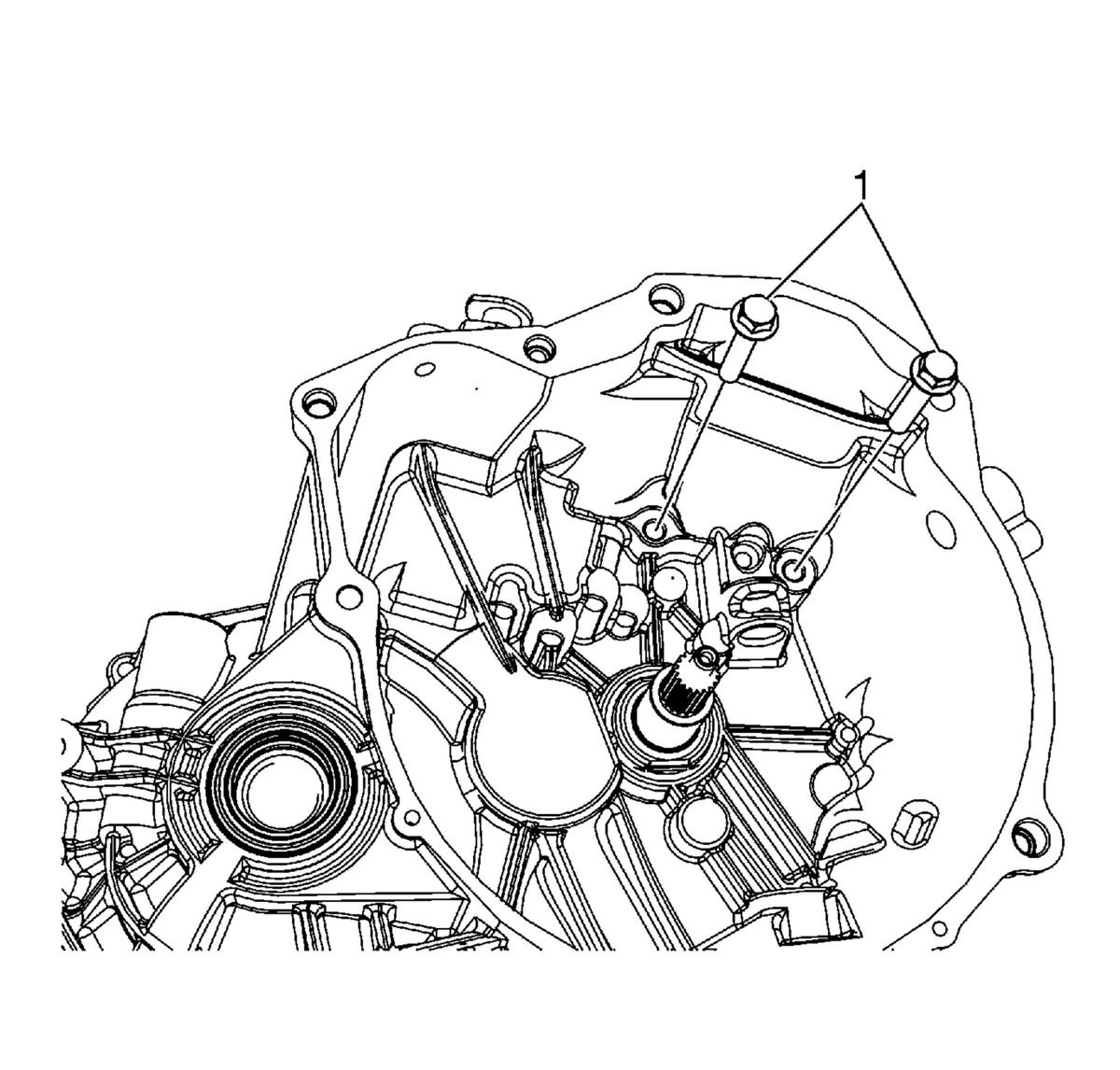

Remove the 2 bolts (1) from the right case side.
Courtesy of GENERAL MOTORS COMPANY

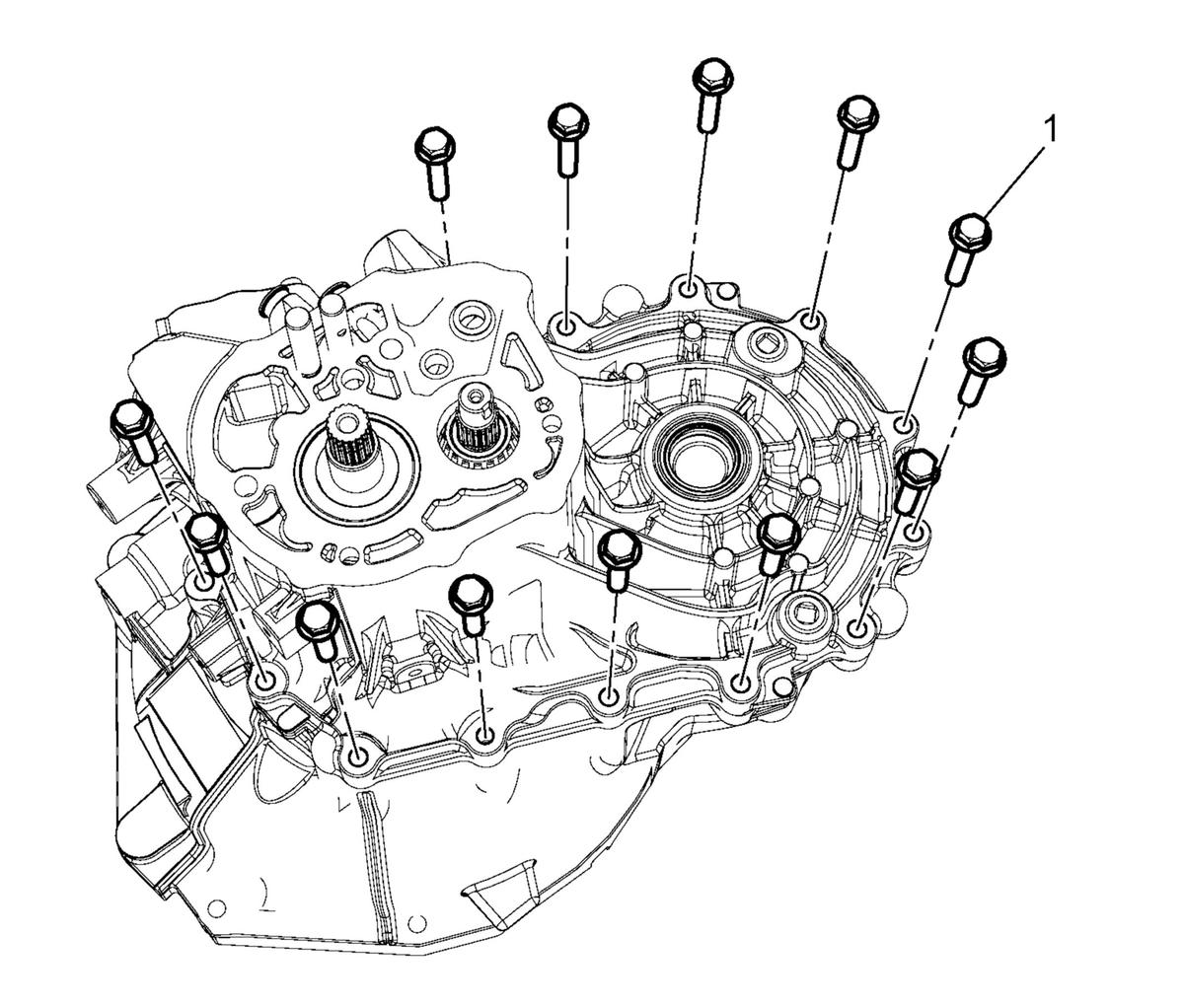

Remove 13 bolts (1) from the left case side.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Inspect the detent for damage. If the detent is damaged, remove and discard the detent.

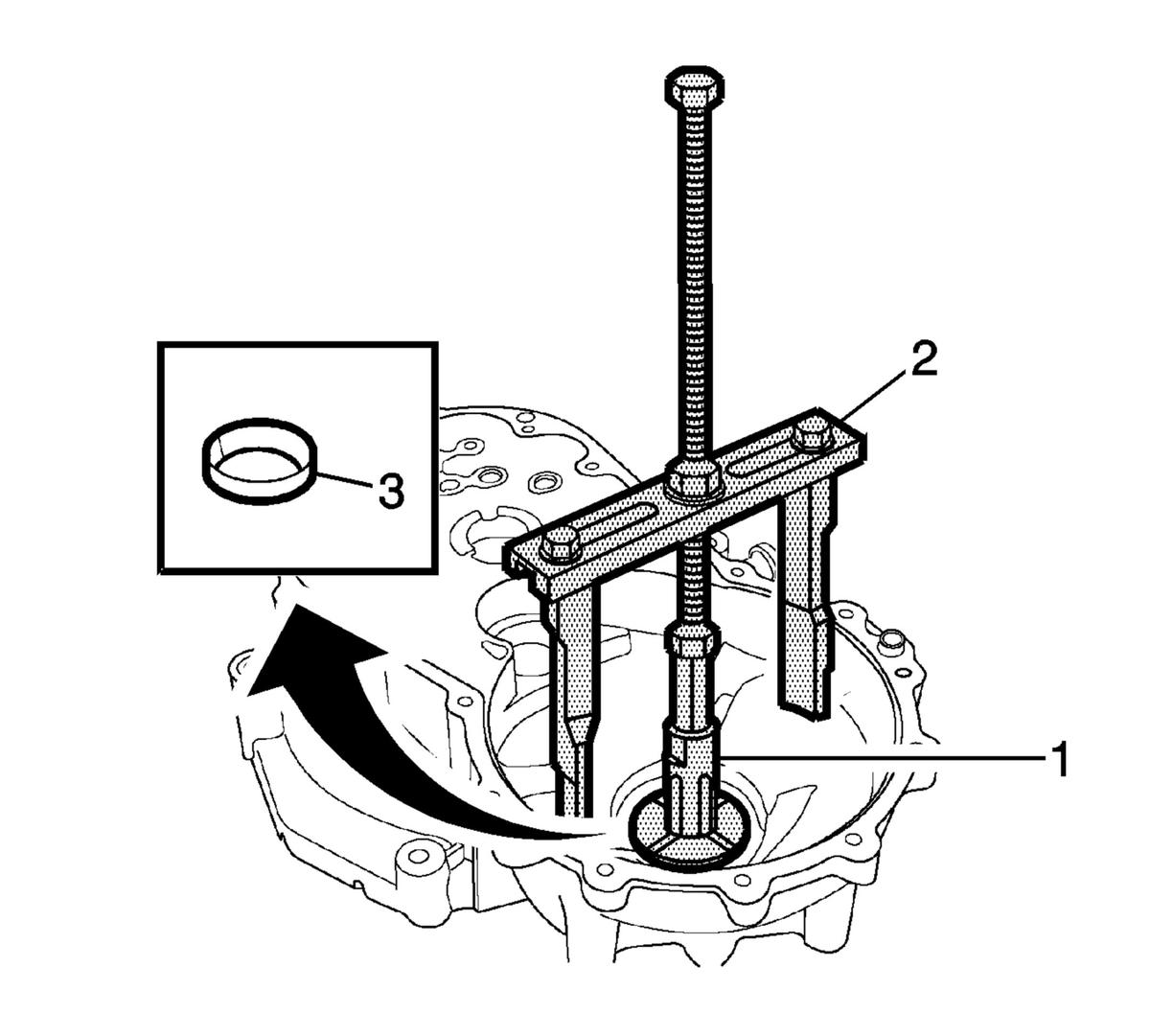

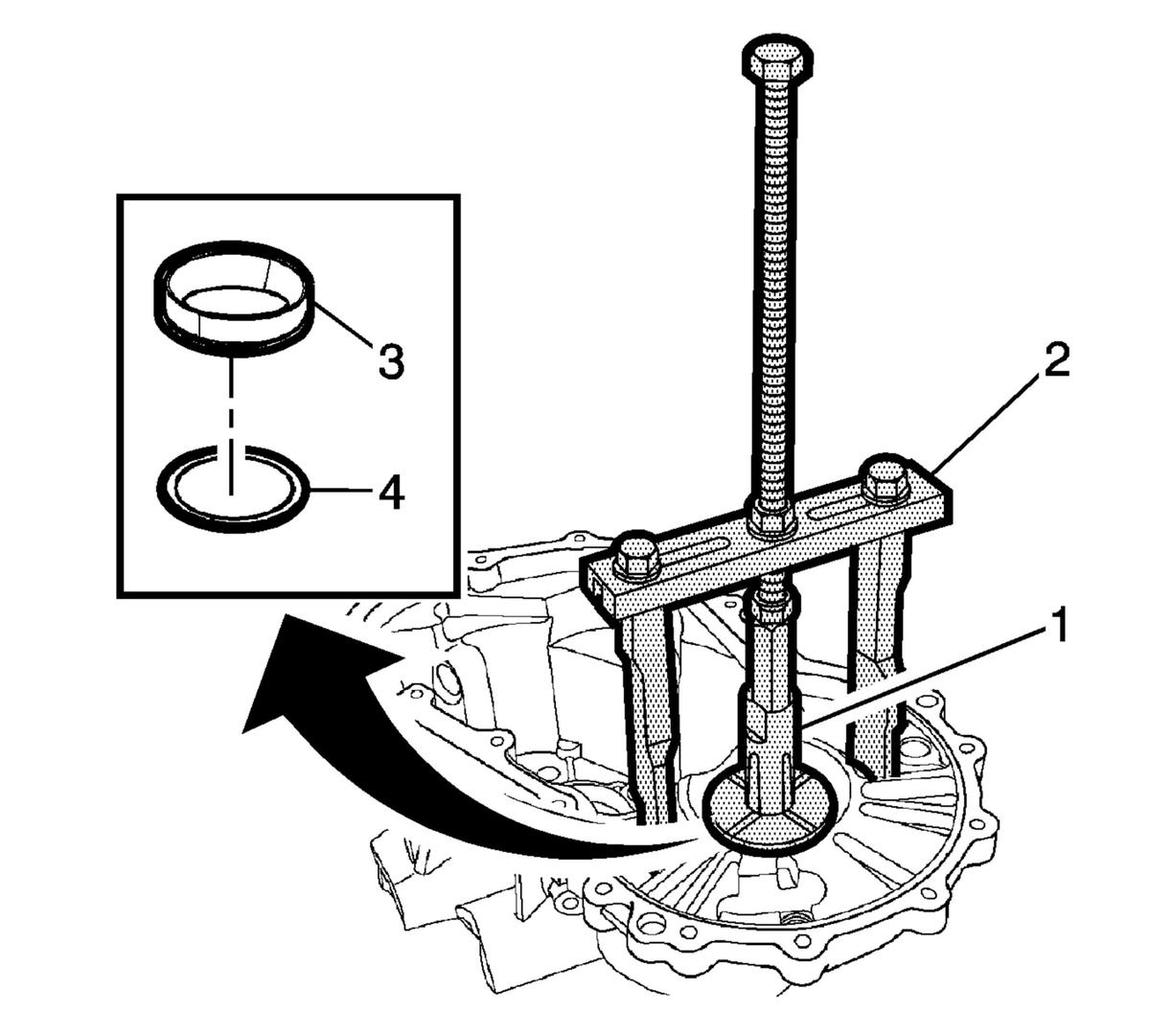

Remove the shift shaft detent (3) using the DT-727 remover (1) and GE-328 - B Puller (2).
Courtesy of GENERAL MOTORS COMPANY

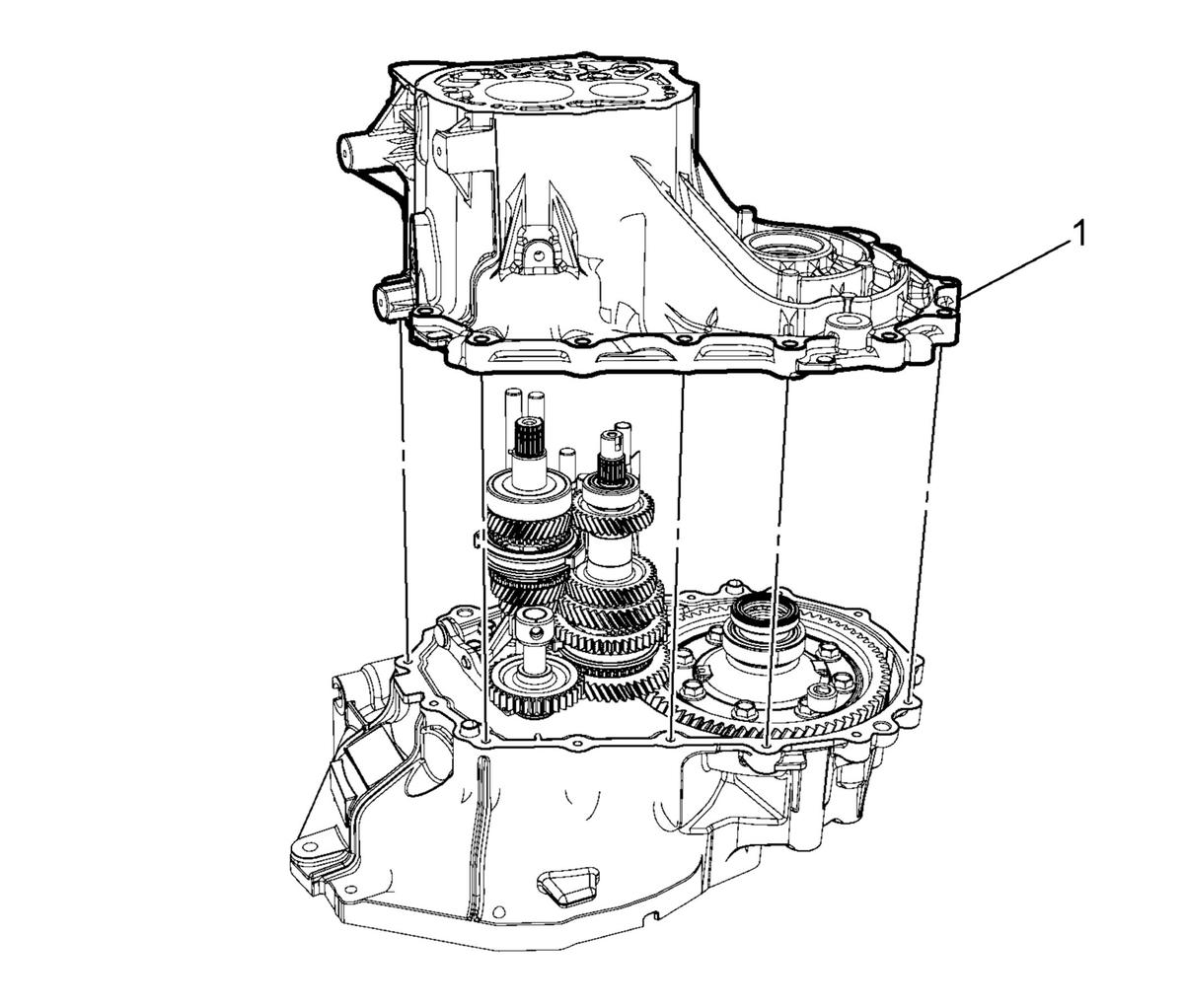

Remove the left side case by hitting with a rubber hammer lightly.
Remove the sealant on the case.
Courtesy of GENERAL MOTORS COMPANY

Remove the reverse gear shift lever washer (2) and bolts (1).
Remove the reverse gear shift lever (3).
Courtesy of GENERAL MOTORS COMPANY

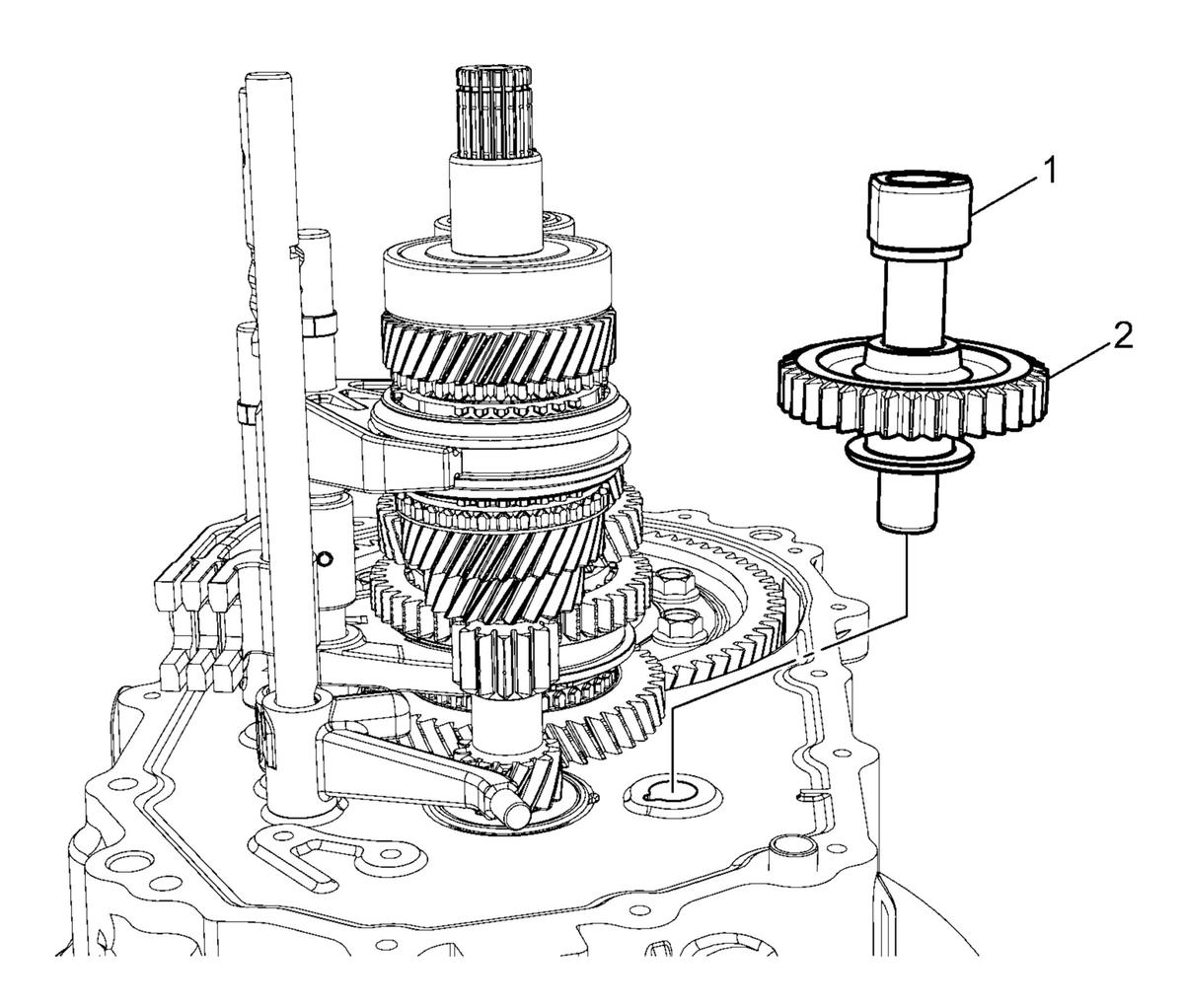

Remove the reverse idle gear (2) and shaft (1).
Remove the reverse idle gear (2) from the shaft assembly.
Courtesy of GENERAL MOTORS COMPANY

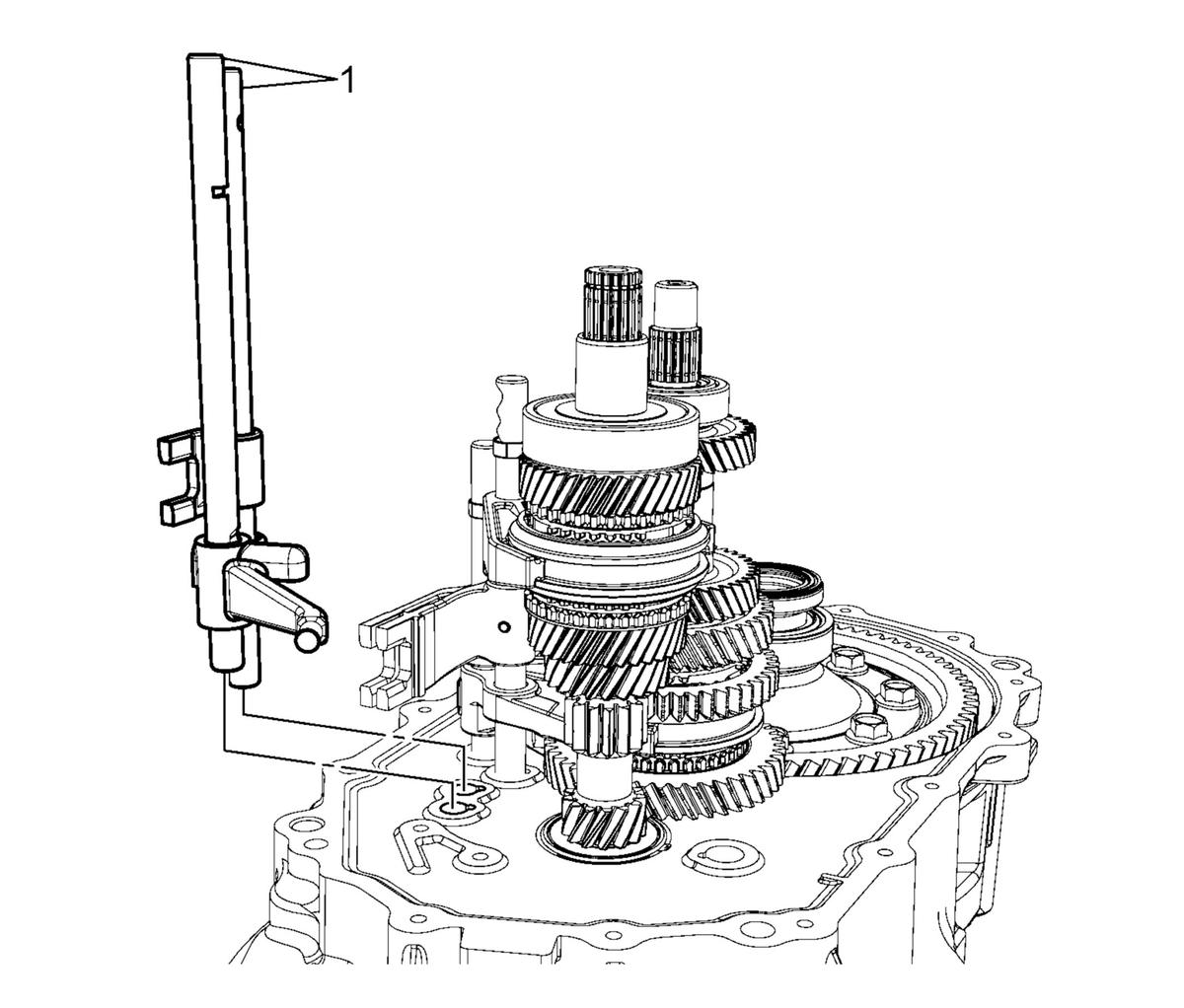

Remove the 5th and reverse gear shift shaft (1).
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Be careful not to damage the teeth of the counter shaft pinion and the differential ring gear.

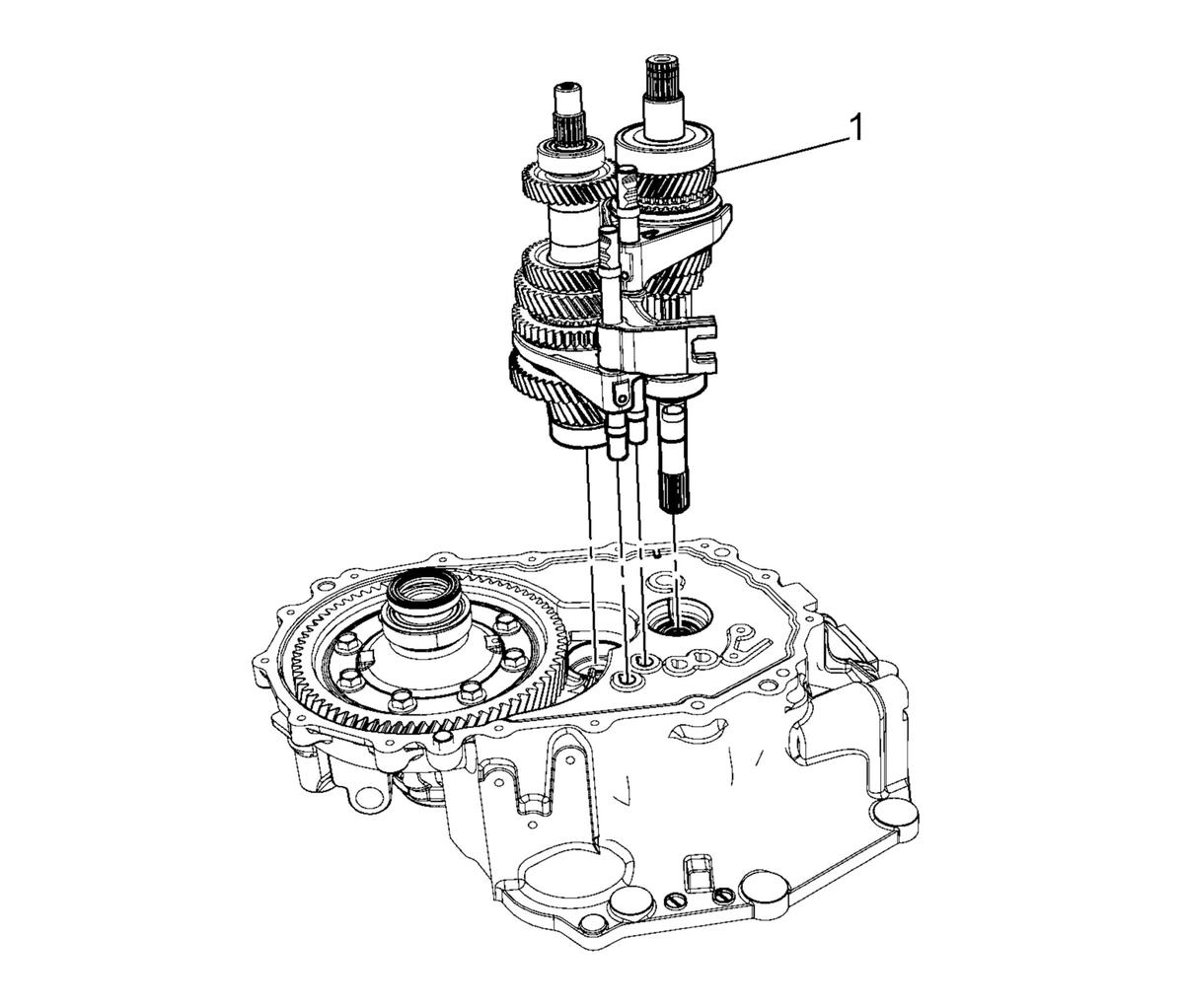

Remove the gear unit and the shift shaft assembly (1) together.
Remove the high and the low speed shift shaft assembly from the gear unit.
Courtesy of GENERAL MOTORS COMPANY

Insert a wooden prying device into the lower side of the differential.

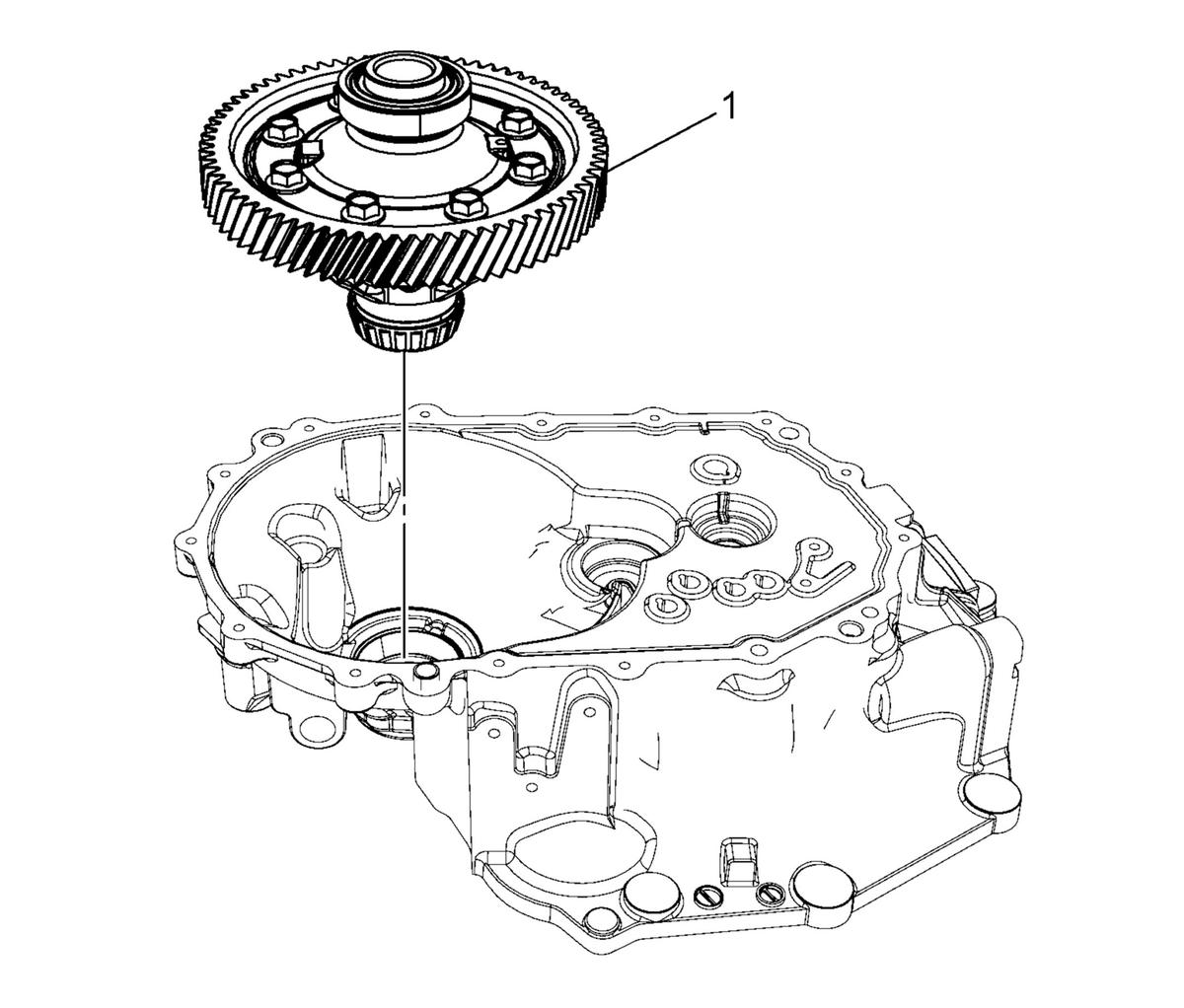

Remove the differential assembly (1) by moving it right and left.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Push the key of the oil gutter from the left side case using a screw driver.

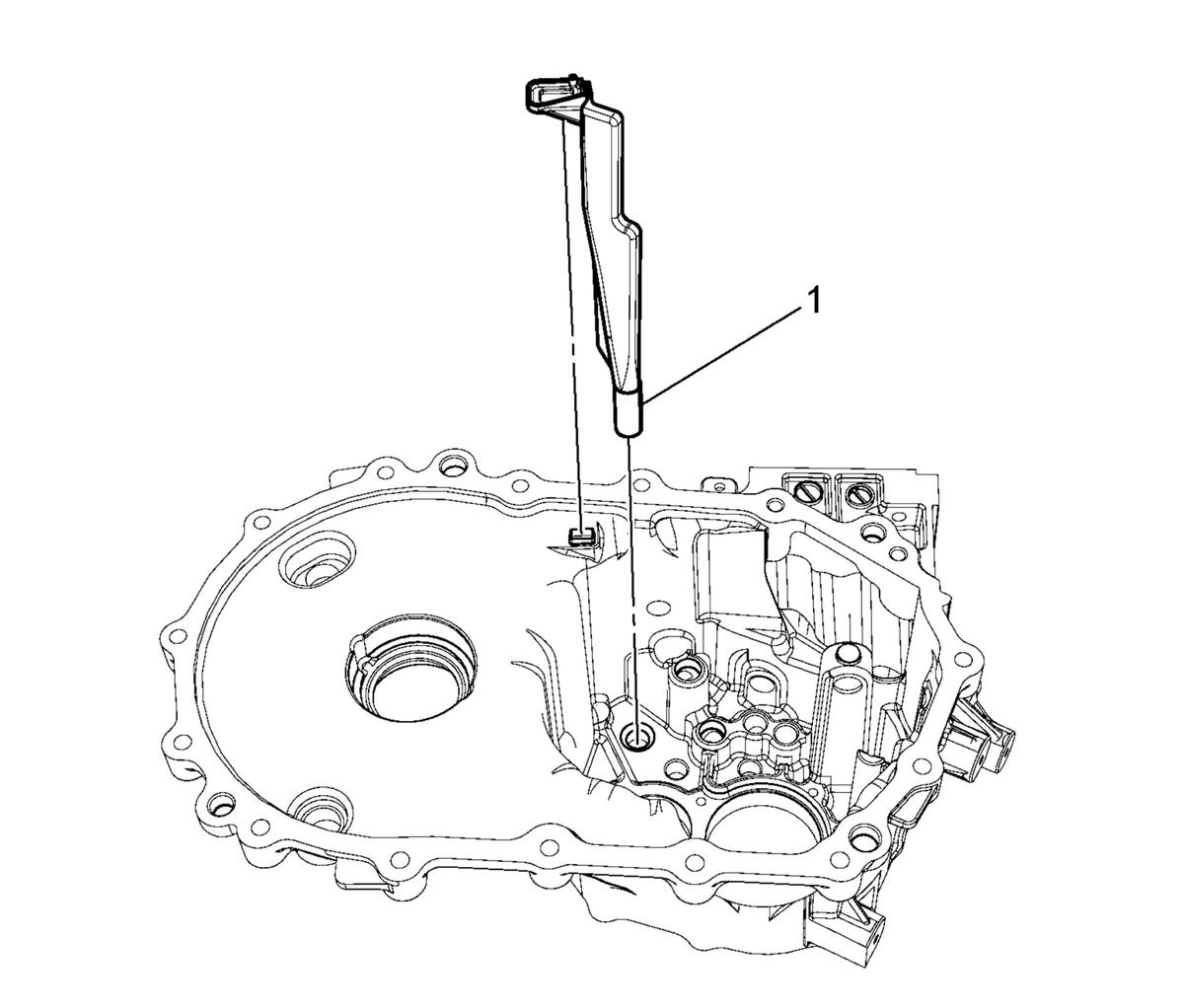

Remove the oil gutter (1).
Courtesy of GENERAL MOTORS COMPANY

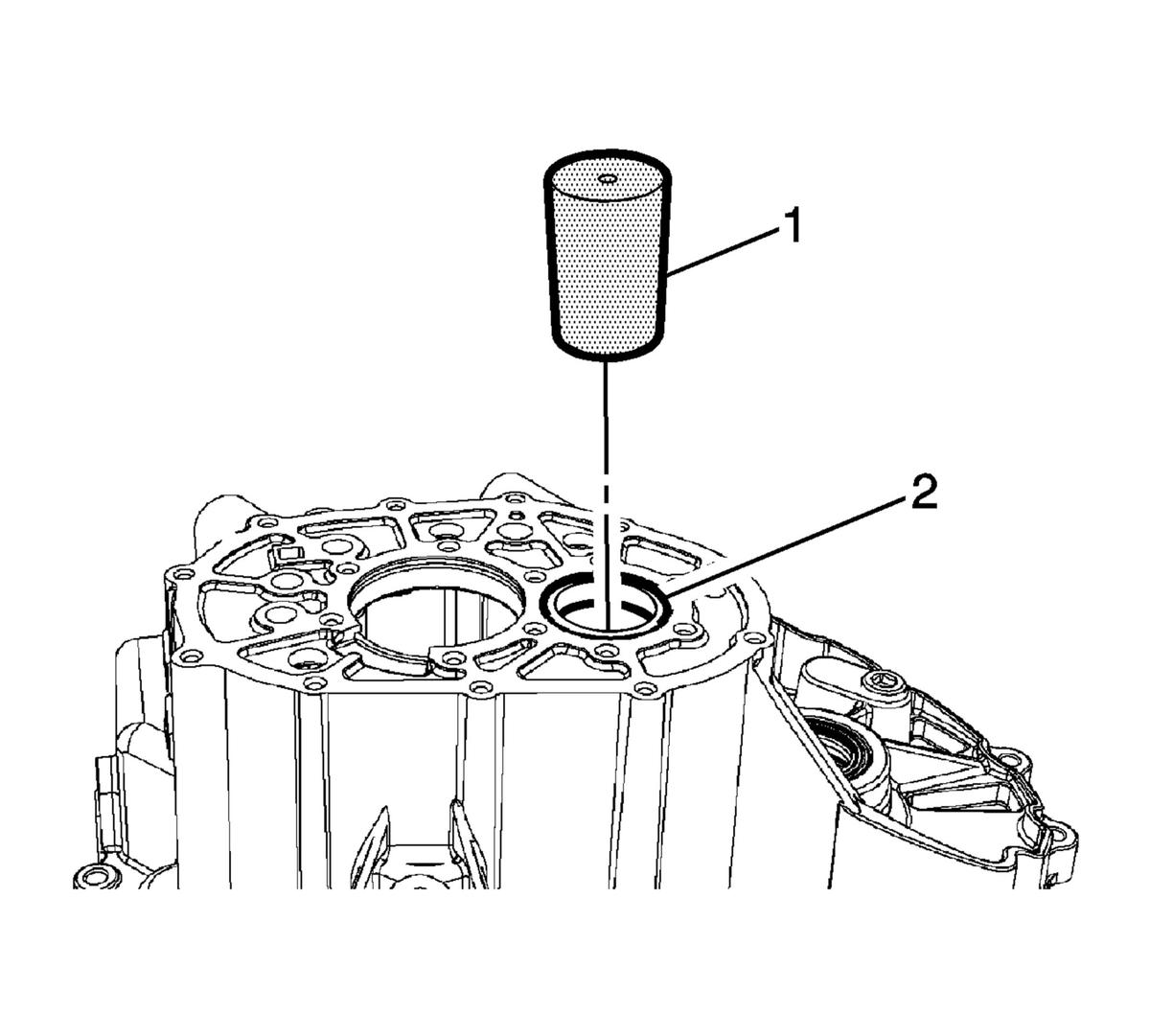

Remove the counter shaft bearing cup (2) using the DT-50504 counter shaft bearing cup remover/installer (1) and a hammer.
Courtesy of GENERAL MOTORS COMPANY

Remove the differential left side bearing cup (3) using the DT-50500 differential bearing cup remover (1) and the DT-50505 bridge (2).
Remove the differential left side bearing shim (4).
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Do not reuse the differential right side oil seal.

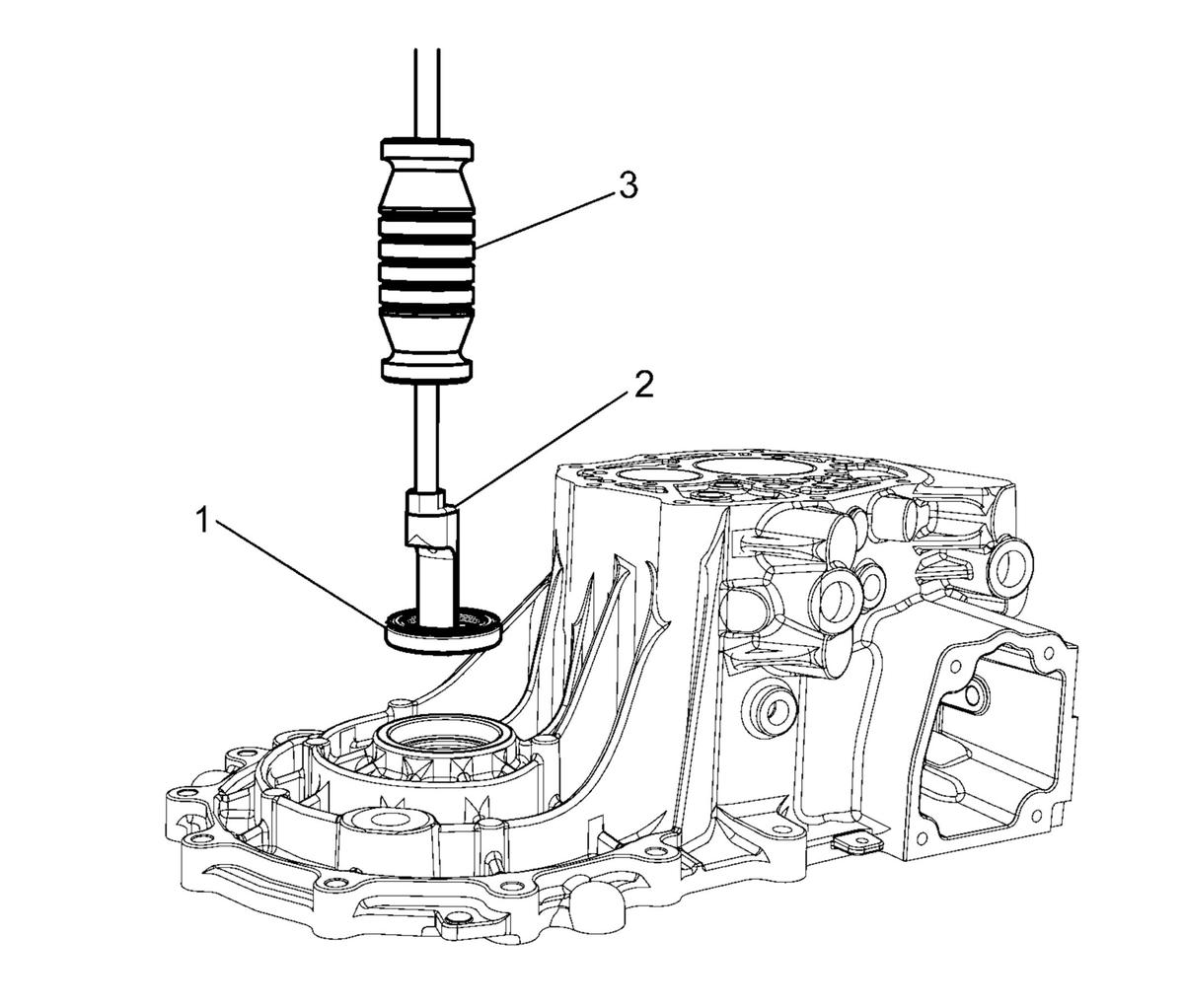

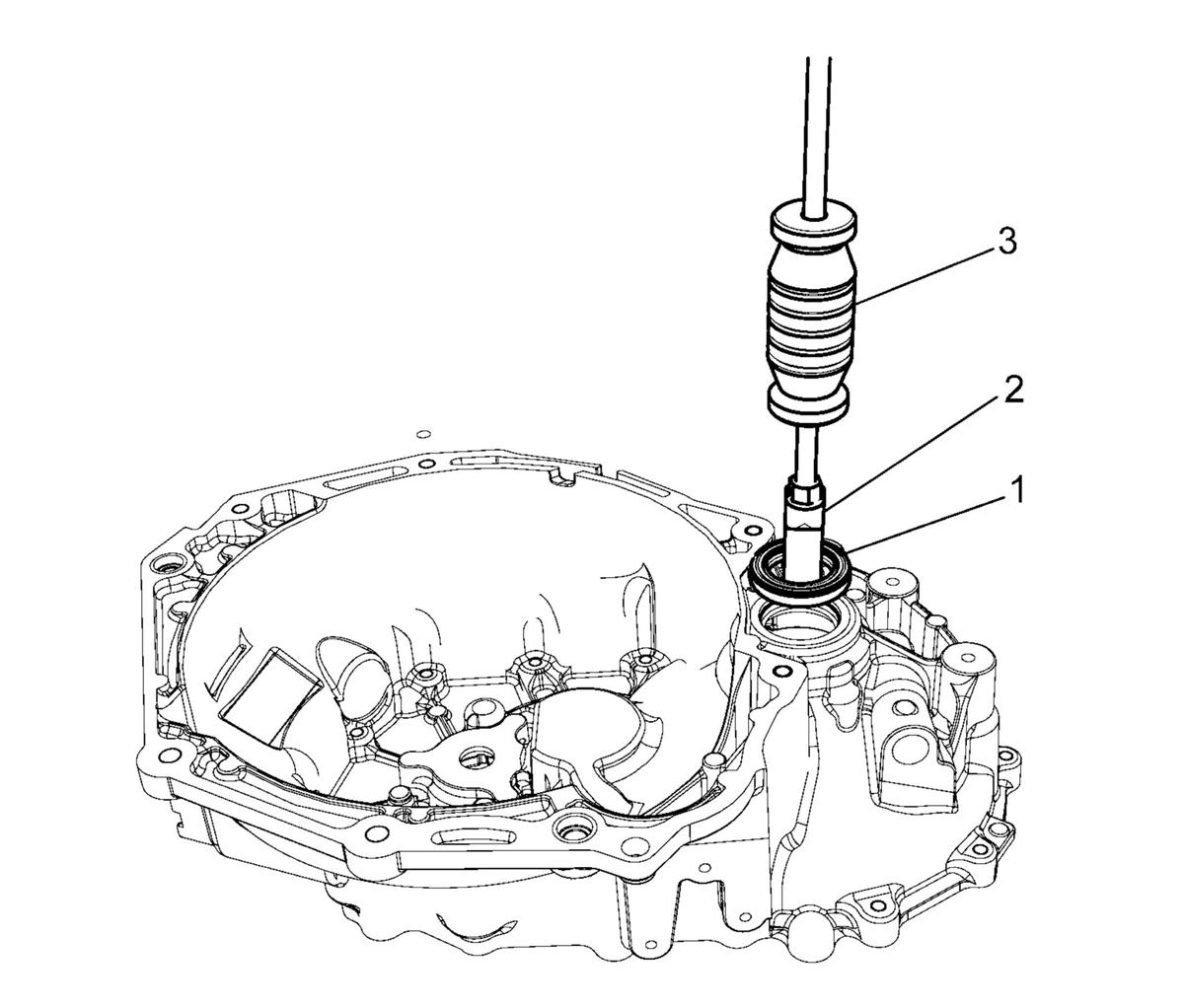

Remove the differential right side oil seal (1) using the DT-7004 sliding hammer and the DT-586 seal remover hook (2).
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Do not reuse the input shaft right side seal.

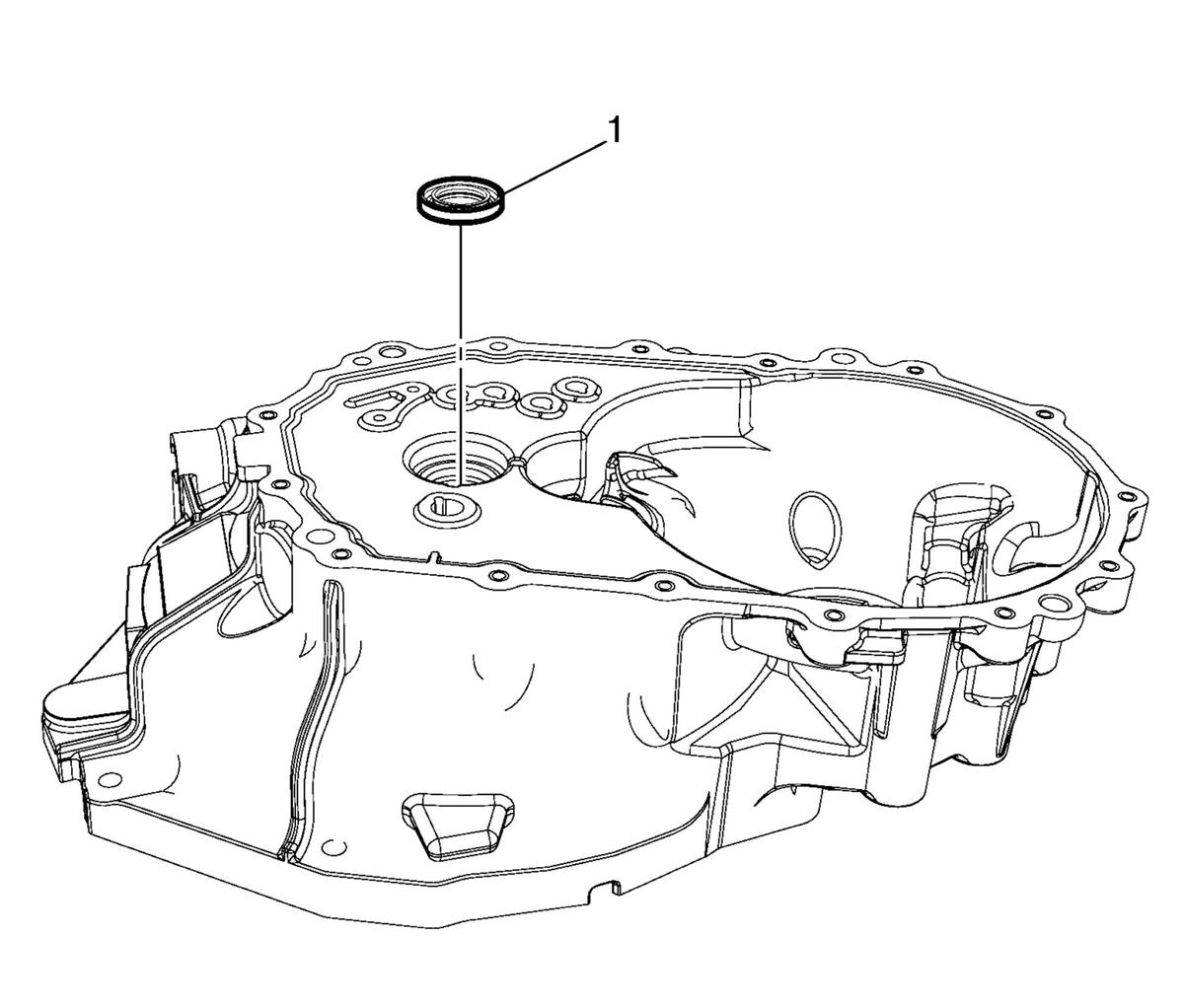

Remove the input shaft right side seal (1) using a screwdriver.
Courtesy of GENERAL MOTORS COMPANY

Remove the differential right side bearing cup (3) using the DT-50500 differential bearing cup remover (1) and the DT-50505 bridge (2).
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Do not reuse the differential left side oil seal.

Remove the differential left side oil seal (1) using the DT-586 seal remover hook (2) and DT-7004 sliding hammer (3).
