Installation Procedure
WARNING: This page is about a different variant/trim than selected.

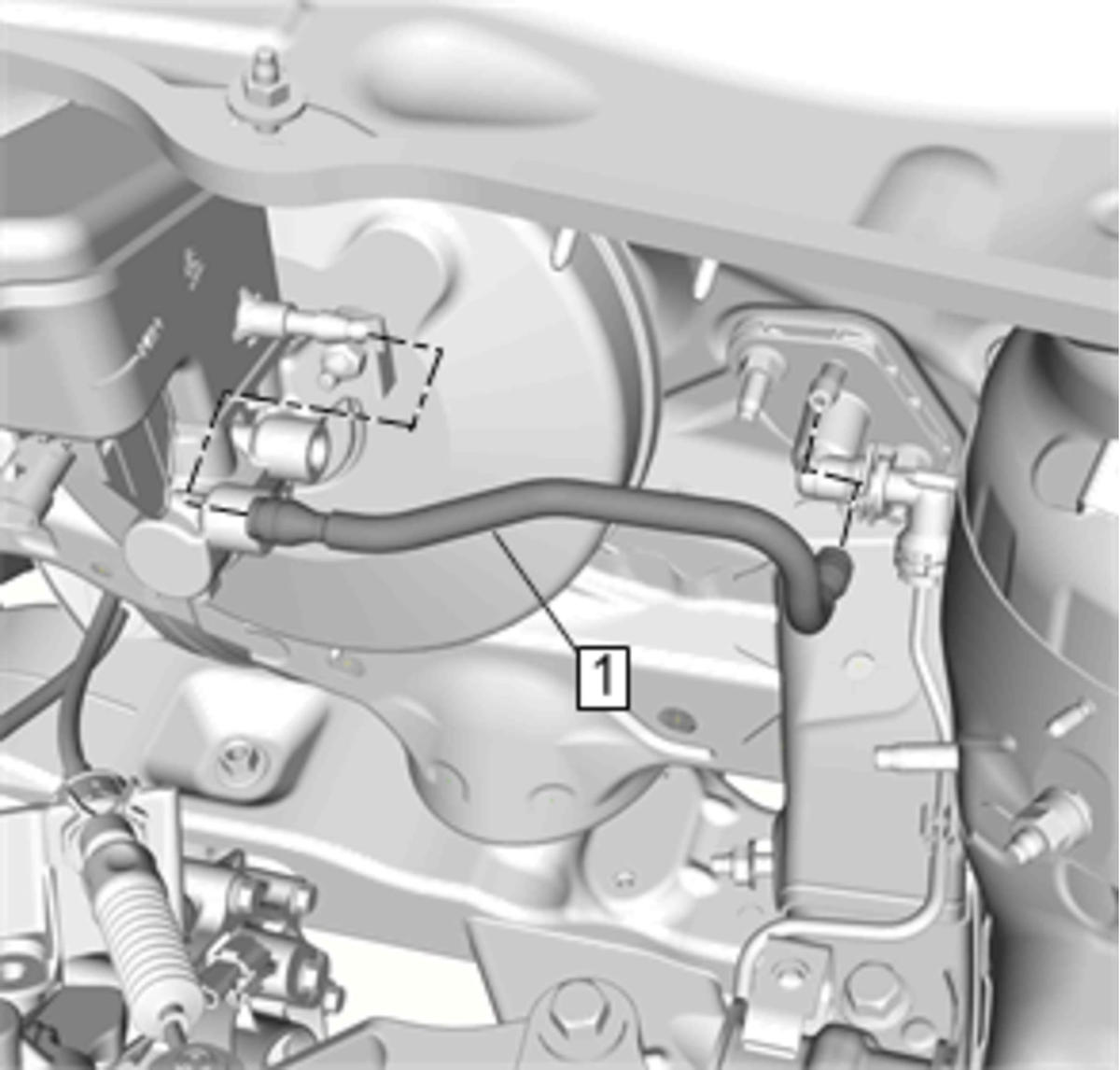

Install the NEW clutch master cylinder reservoir hose (1) to the reservoir tank and the clutch master cylinder.
- Install the brake pressure modulator valve bracket. Refer to Brake Pressure Modulator Valve Bracket Replacement .
- Bleed the hydraulic clutch system. Refer to Hydraulic Clutch System Bleeding .
- Install the battery tray. Refer to Battery Tray Replacement (without Engine Block Heater)Battery Tray Replacement (with Engine Block Heater) .
