Removal Procedure

WARNING: This page is about a different variant/trim than selected.

Remove the transmission. Refer to Transmission Replacement (With 1.0L Engine)Transmission Replacement (With 1.4L Engine) .
Remove the clutch actuator cylinder pipe elbow. Refer to Clutch Actuator Cylinder Pipe Elbow Replacement .
Courtesy of GENERAL MOTORS COMPANY

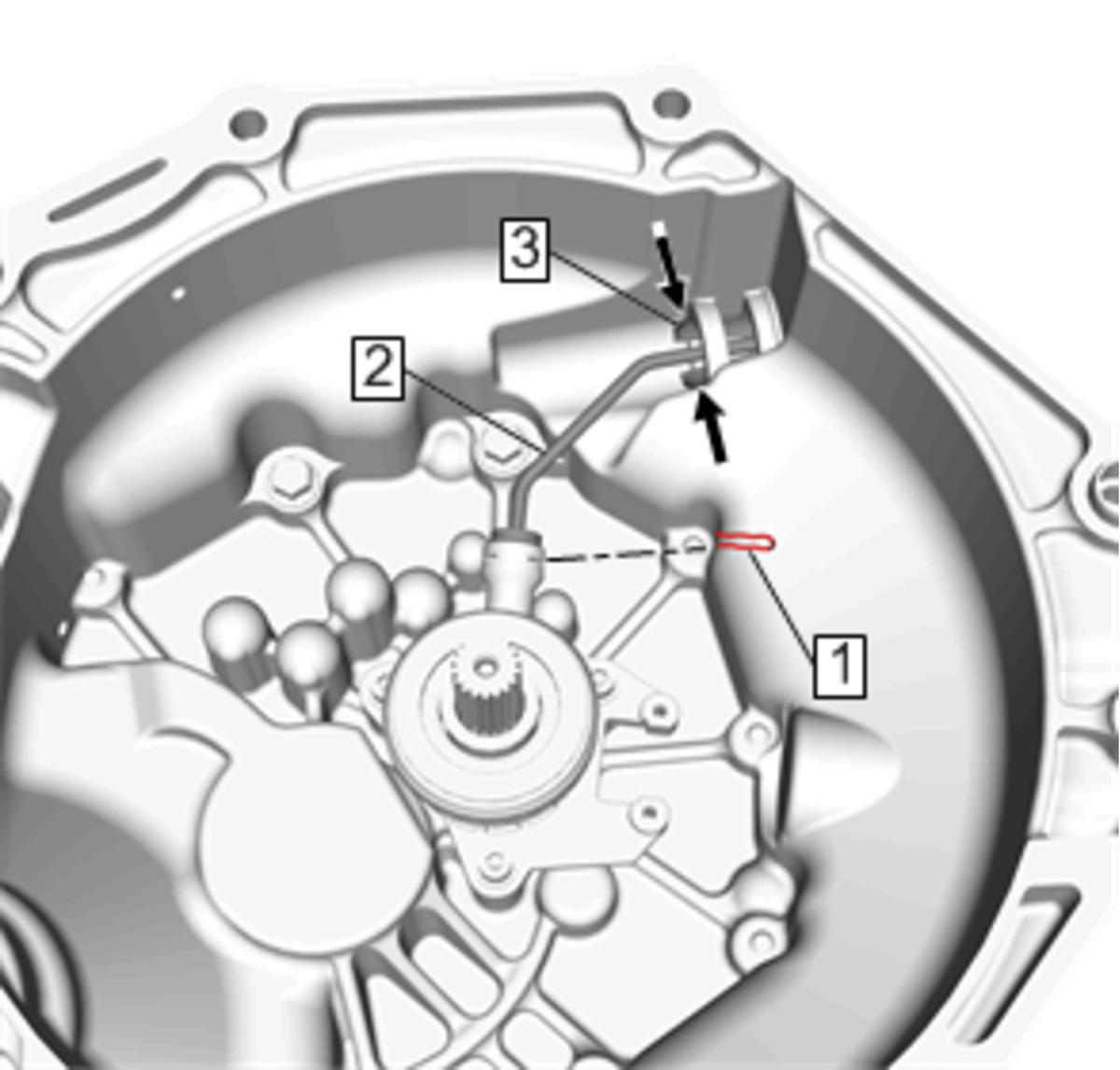

Remove the retaining clip (1) from the clutch actuator cylinder.
Squeeze the fastening sleeve (arrows) and push the fastening sleeve (3) and clutch actuator cylinder pipe (2) out of the transmission housing.
Courtesy of GENERAL MOTORS COMPANY

NOTE:

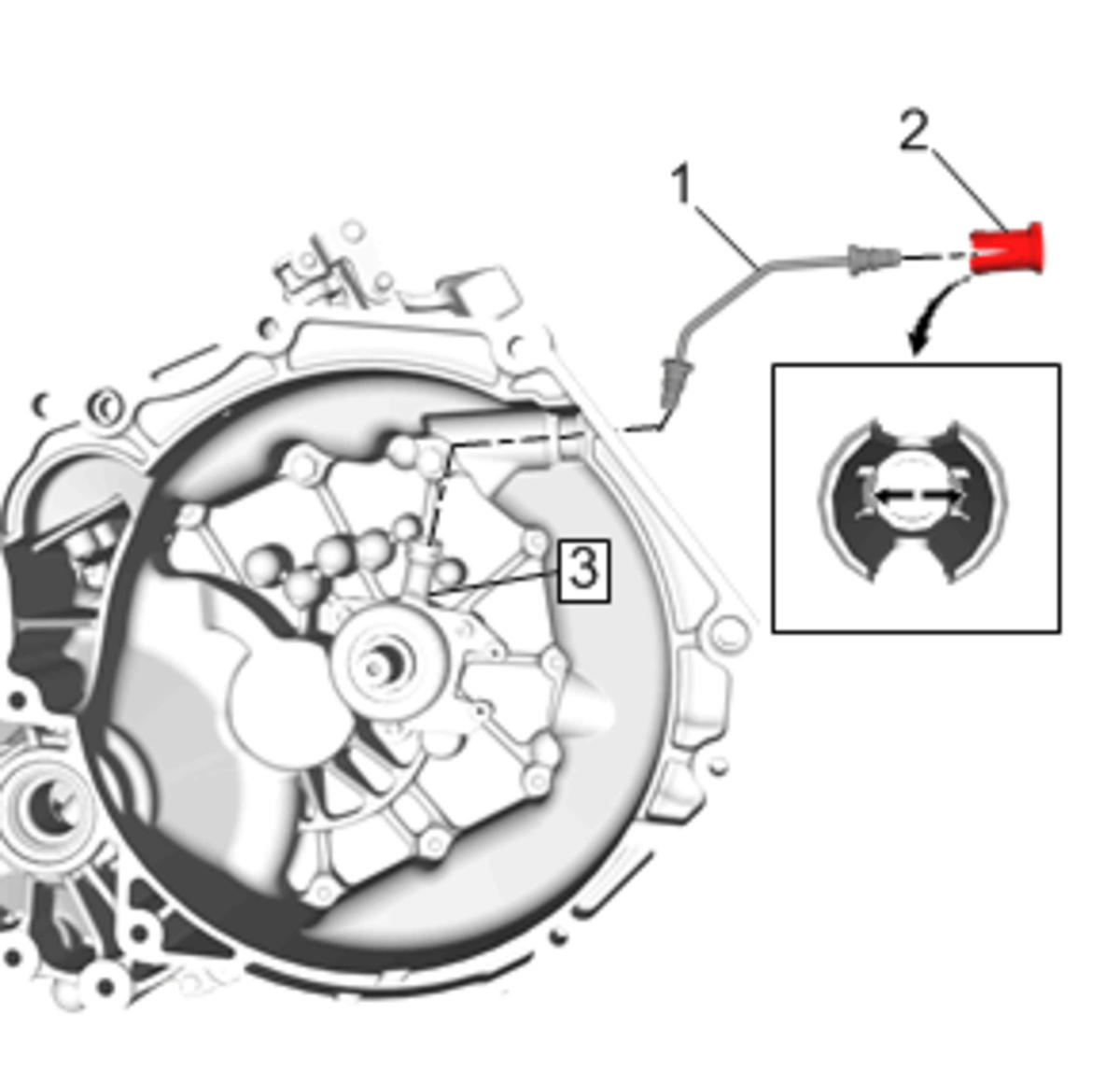

Release the fastening sleeve keys (arrows) using a screwdriver or equivalent to remove the fastening sleeve.

Remove the clutch actuator cylinder pipe (1) from the fastening sleeve (2).
