Installation Procedure
WARNING: This page is about a different variant/trim than selected.
Install the clutch actuator cylinder pipe (1) into the fastening sleeve (2).
- Install the clutch actuator cylinder pipe (1) with the fastening sleeve (2) into the transmission housing.
- Install the clutch actuator cylinder pipe (1) to the clutch actuator cylinder (3).

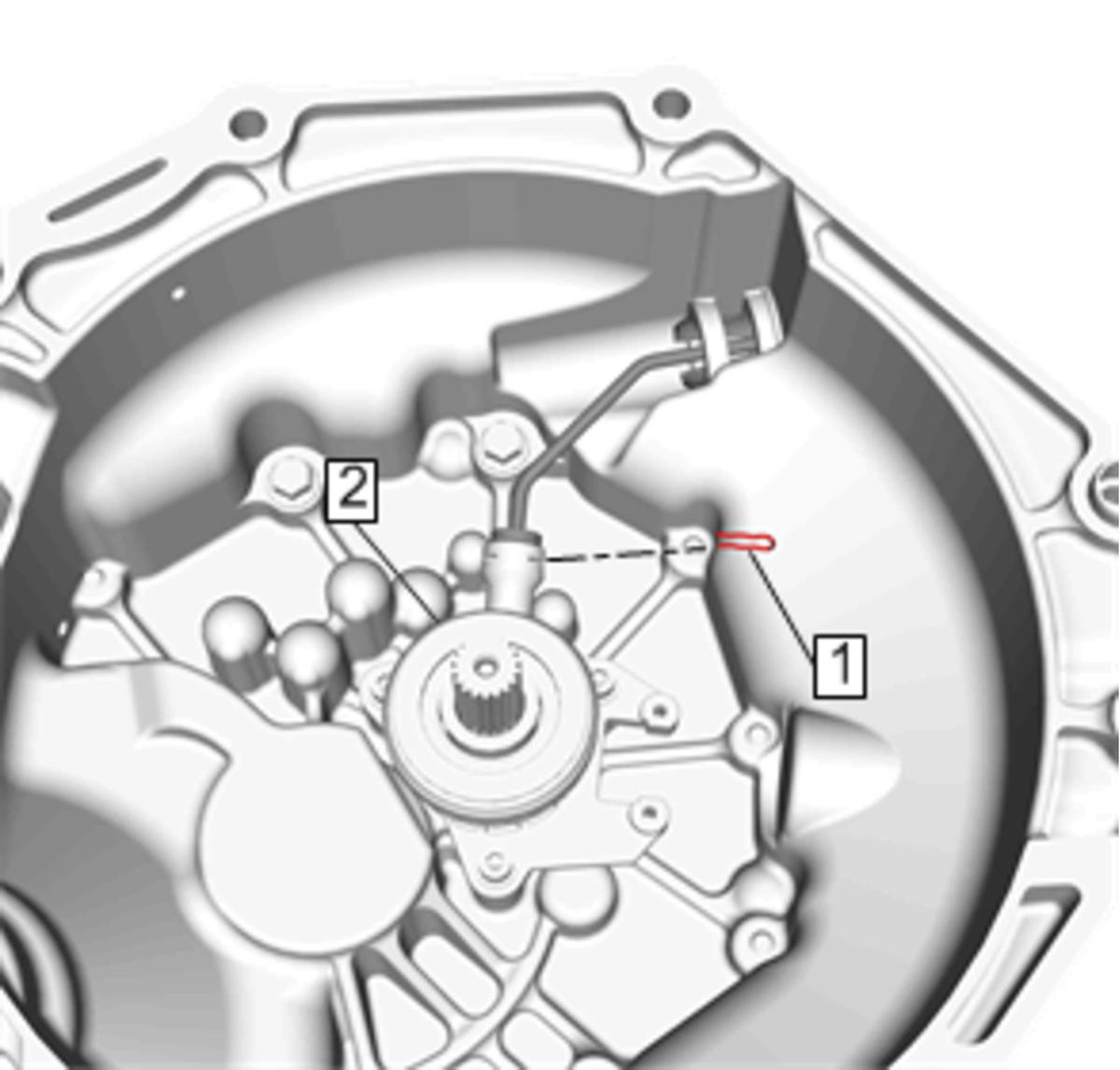

Install the retaining clip (1) to the clutch actuator cylinder (2).
- Install the clutch actuator cylinder pipe elbow. Refer to
- Install the transmission. Refer to Transmission Replacement (With 1.0L Engine)Transmission Replacement (With 1.4L Engine) .
