Installation Procedure
WARNING: This page is about a different variant/trim than selected.
- Install the clutch actuator cylinder front pipe in the vehicle.

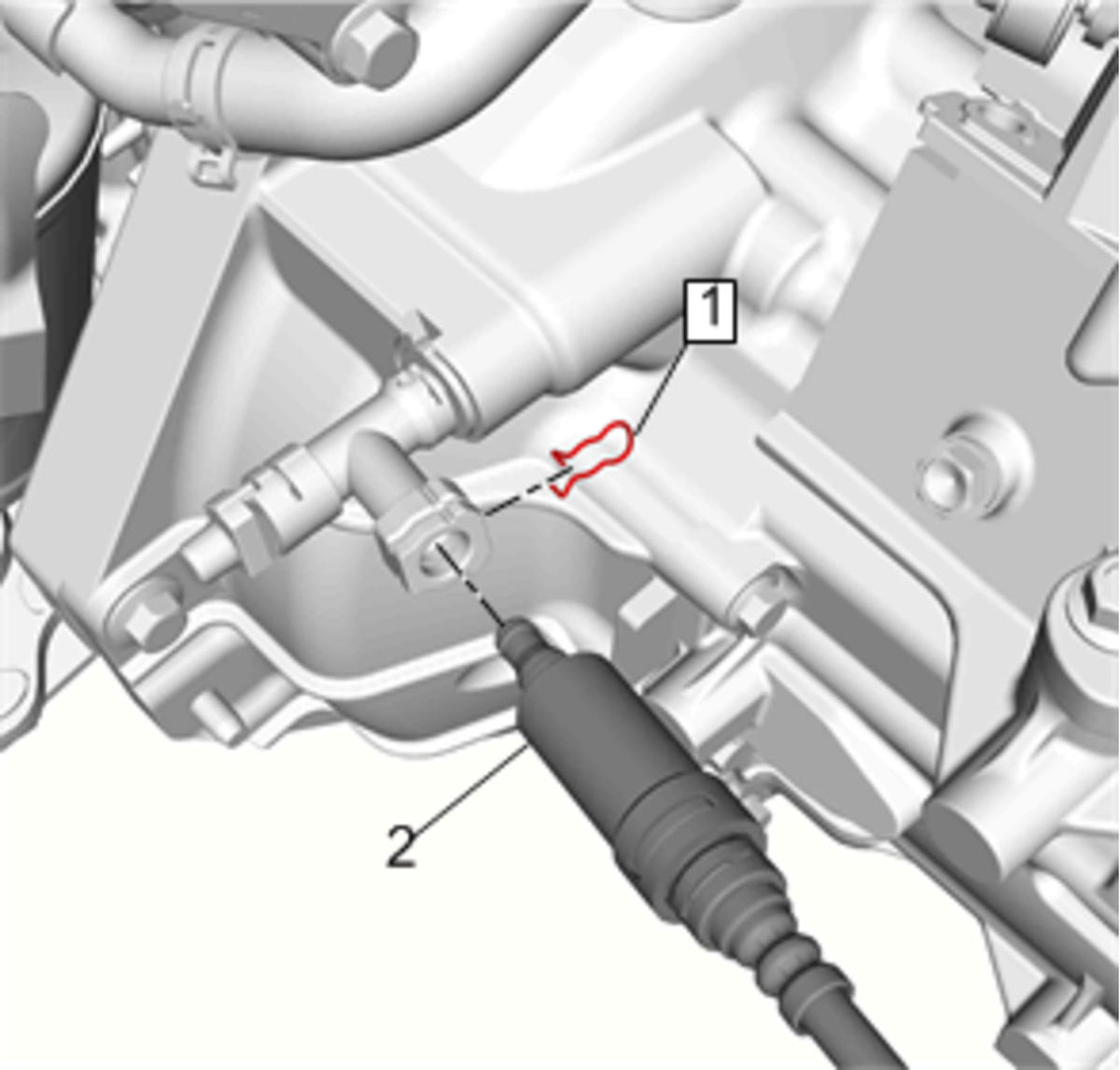

Connect the clutch actuator cylinder front pipe (2) to the clutch actuator cylinder pipe elbow.
- Install the retaining clip (1).

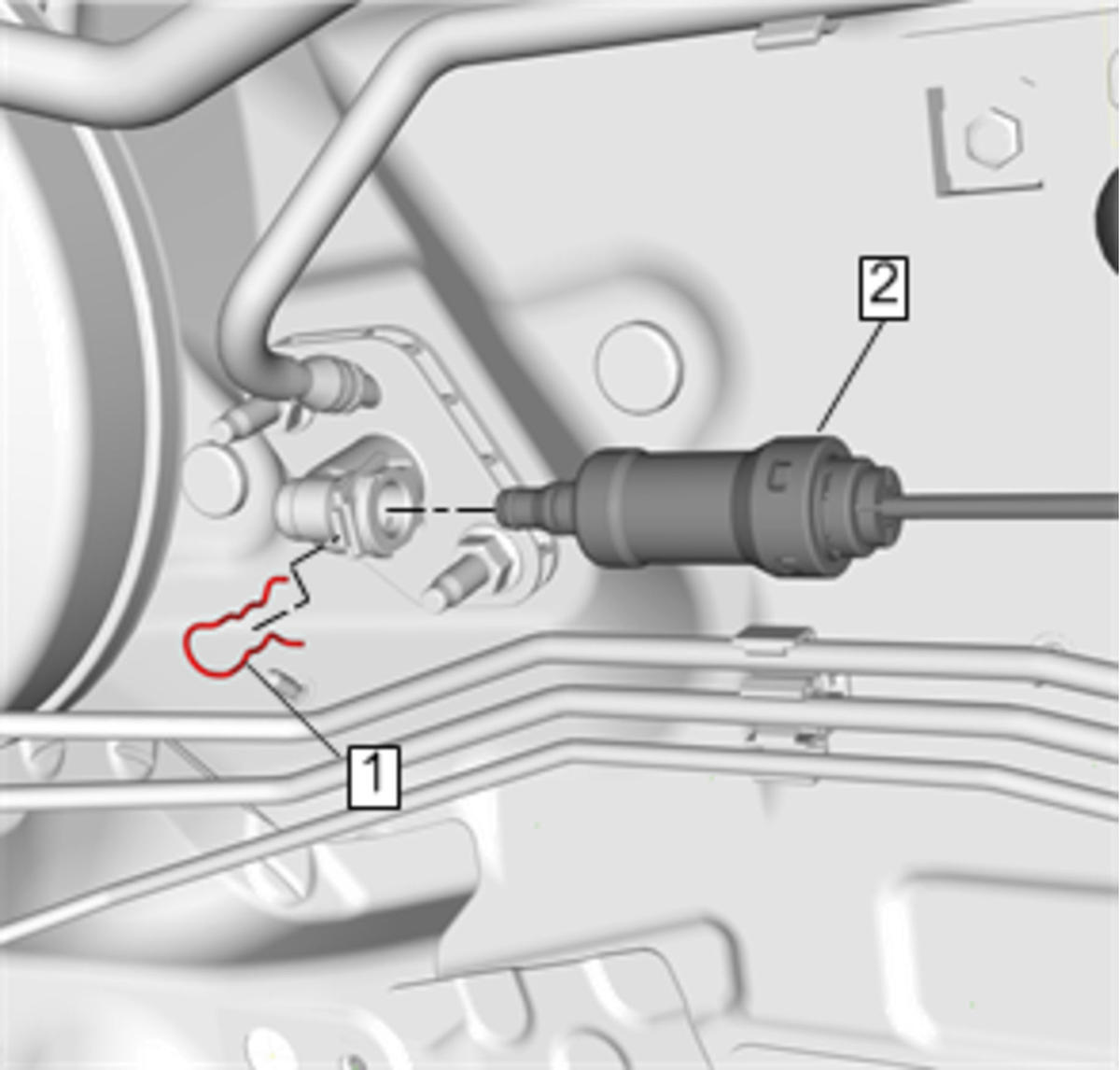

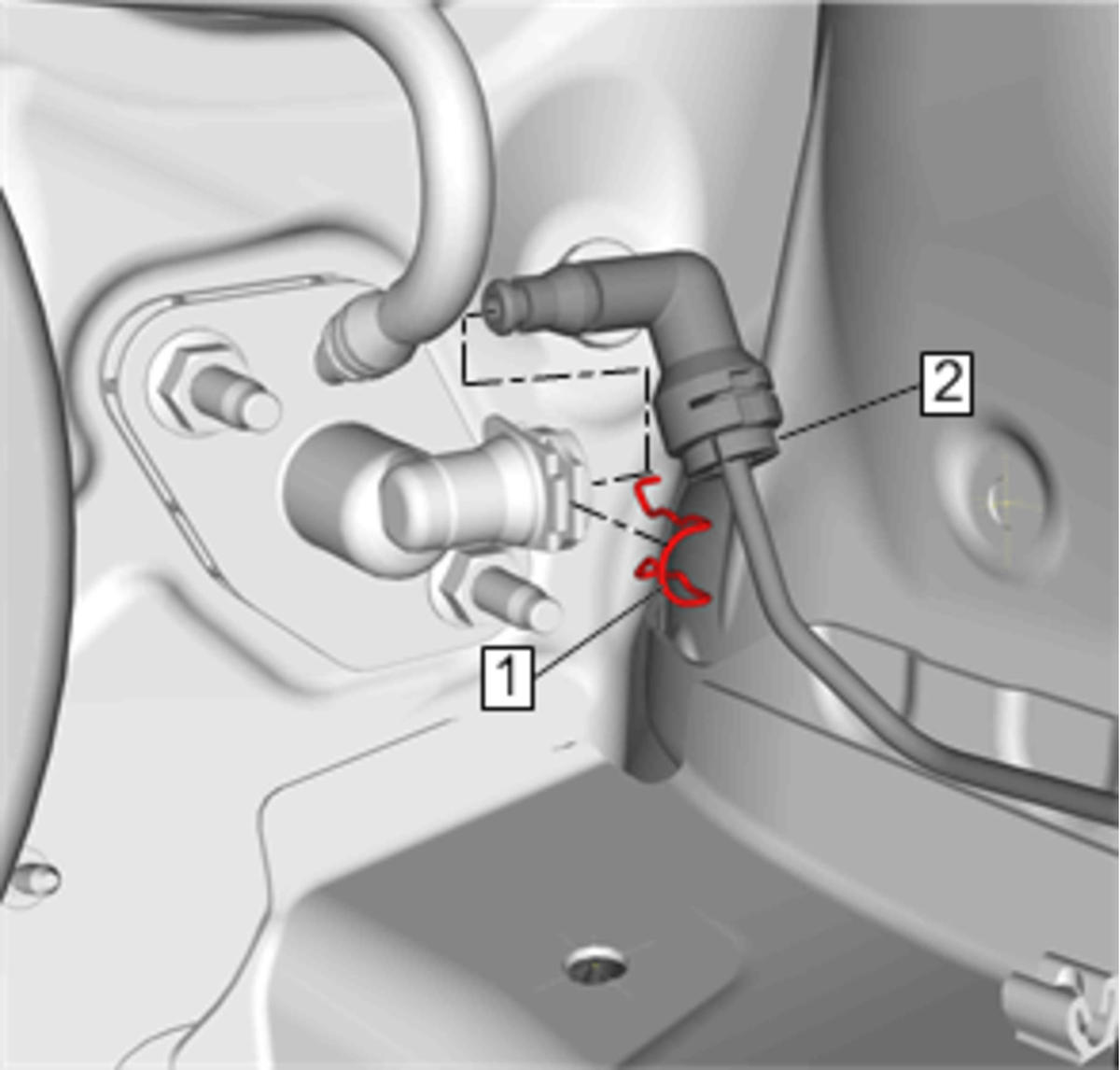

Connect the clutch actuator cylinder front pipe (2) to the clutch master cylinder.
- Install the retaining clip (1).

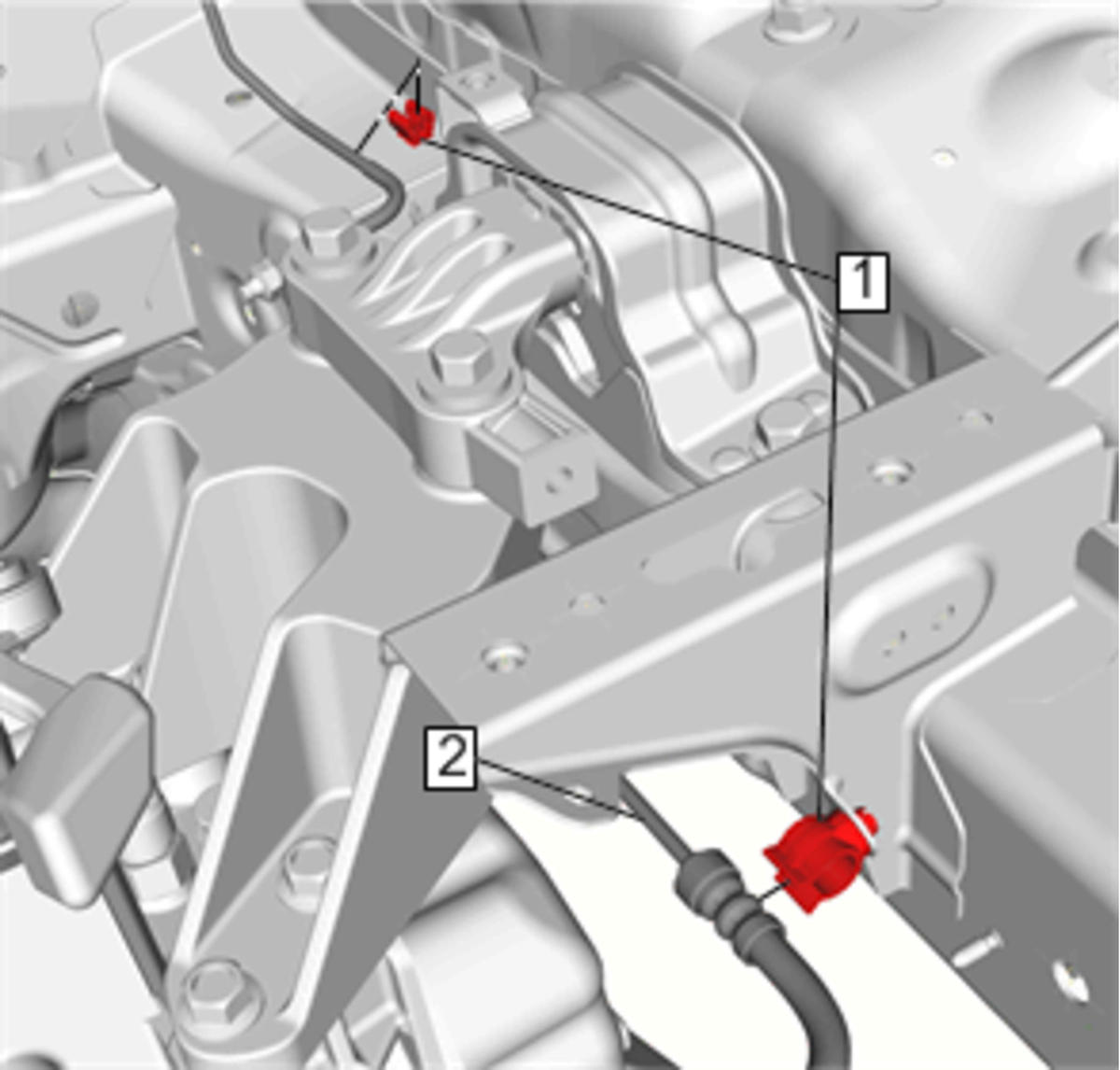

Install the clutch actuator cylinder front pipe (2) to the retainers (1).
- Install the brake pressure modulator valve bracket. Refer to Brake Pressure Modulator Valve Bracket Replacement .
- Bleed the hydraulic clutch system. Refer to Hydraulic Clutch System Bleeding .
- Install the battery tray. Refer to Battery Tray Replacement (without Engine Block Heater)Battery Tray Replacement (with Engine Block Heater) .
