Vehicle, Engine and Transmission ID and VIN Location, Derivative and Usage
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

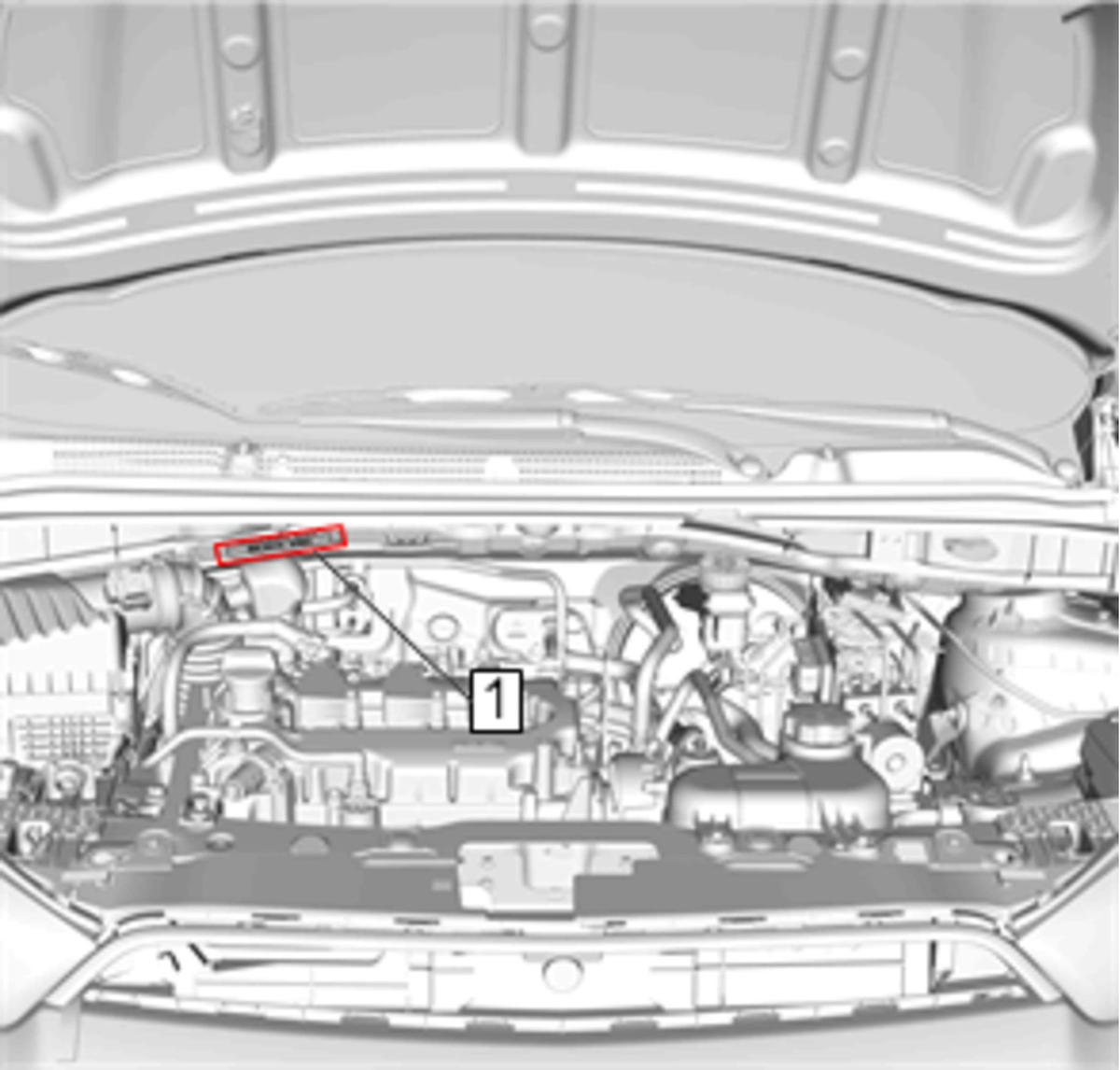

Stamping on the plenum lower panel (1)
Vehicle Identification Number (VIN) System - ISO VIN (VNV/VNW) Type
| Position | Definition | Character | Description |
|---|---|---|---|
| 1 - 3 | Manufacturer | KLY | MINI CAR (Korea Market) |
| KL1 | CHEVROLET | ||
| KL3 | HOLDEN | ||
| 4 | Carline | D | for CD(M400), Global Mini |
| 5 | Trim Series | F | FWD, MT |
| A | FWD, AT | ||
| C | FWD, CVT | ||
| 6, 7 | Body Style | 48 | 4-Door Hatchback, 4-Windows |
| 8 | Engine Type | 7 | L5Q, L3, 1.0L, MFI, ALUM, GEN 1 |
| A | LV7, L4, 1.4L, MFI, DOHC, VVT, ALUM, GEN 1, VAR 1 | ||
| E | LVG, L3, 1.1L, MFI, DOHC, VVT, ALUM, GEN 1 | ||
| 9 | Purpose | 4 | NE4, Euro 6 |
| 9 | NE9, Euro 5, Euro 5+ | ||
| J | NT4, Euro 4 | ||
| 1 | NT3, Euro 3 | ||
| E | NT2 & Other emission level, Euro 2 | ||
| D | Korea Market | ||
| 10 | Model Year or Production Year | H | 2017 |
| 11 | Plant Code | C | Changwon plant, Korea |
| 12 - 17 | Consecutive no. | - | - |
Vehicle Identification Number (VIN) System - US PC VIN (VNU) Type
| Position | Definition | Character | Description |
|---|---|---|---|
| 1 - 3 | Manufacturer | KL1 | CHEVROLET (Non US/Canada/Mexico) |
| KL8 | CHEVROLET Passenger Car (US/Canada/Mexico) | ||
| 4, 5 | Car line / Series | CD | T/L : LM (Israel) |
| T/L : LS (General/Mexico) | |||
| CJ | T/L : LS (Israel) | ||
| T/L : LT (General/Mexico) | |||
| CM | T/L : LT (Israel) | ||
| T/L : LTZ (General/Mexico) | |||
| CH | T/L : LTZ (Israel) | ||
| CA | 1DR48&1SA US/CAN Spark LS (Manual) | ||
| CB | 1DR48&1SB US/CAN Spark LS (Automatic) | ||
| CC | 1DS48&1SC US/CAN Spark LT (Manual) | ||
| CD | 1DS48&1SD US/CAN Spark LT (Automatic) | ||
| CE | 1DT48&1SE US/CAN Spark LTZ (Manual) | ||
| CF | 1DT48&1SF US/CAN Spark LTZ (Automatic) | ||
| 6 | Body Style | 6 | 48-Sedan, 4-Door, 4 Window, Hatchback |
| 7 | Restraint System | A | AR1 Active Manual Belts, Airbag Delete |
| B | AJ3 Active Manual Belts, Airbag - Driver only - Front | ||
| C | AK5 Active Manual Belts, Airbag - Driver & Passenger-Front (1st row) | ||
| E | AYC Active Manual Belts, Airbag-Driver & Passenger-Front (1st row), Seat side, Roof side | ||
| S | AYF Active Manual Belts, Airbags - Driver & Passenger Front (1st row), Front Seat Side (1st row) & Rear Seat Side (2nd row), Roof Side (all seating rows), Driver & Passenger knee (1st row) | ||
| 8 | Engine | 0 | EN0, ENGINE-NONE |
| 7 | L5Q, L3, 1.0L, MFI, ALUM, GEN 1 | ||
| A | LV7, L4, 1.4L, MFI, DOHC, VVT, ALUM, GEN 1, VAR 1 | ||
| 9 | Check Digit | 0 - 9, X | Calculated by POMS |
| 10 | Model Year | H | 2017 |
| 11 | Plant Code | C | Changwon plant, Korea |
| 12 - 17 | Consecutive no. | - | - |
1.0L (L5Q), 1.1L (LVG), 1.4L (LV7) Engine ID and VIN Derivative Location
Refer to Engine Identification .
Y4A/Y4M Transmission ID and VIN Derivative Location
Refer to Transmission Identification Information .
Jatco CVT Transmission ID and VIN Derivative Location
Refer to Transmission Identification Information .
