Transmission Identification Information
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

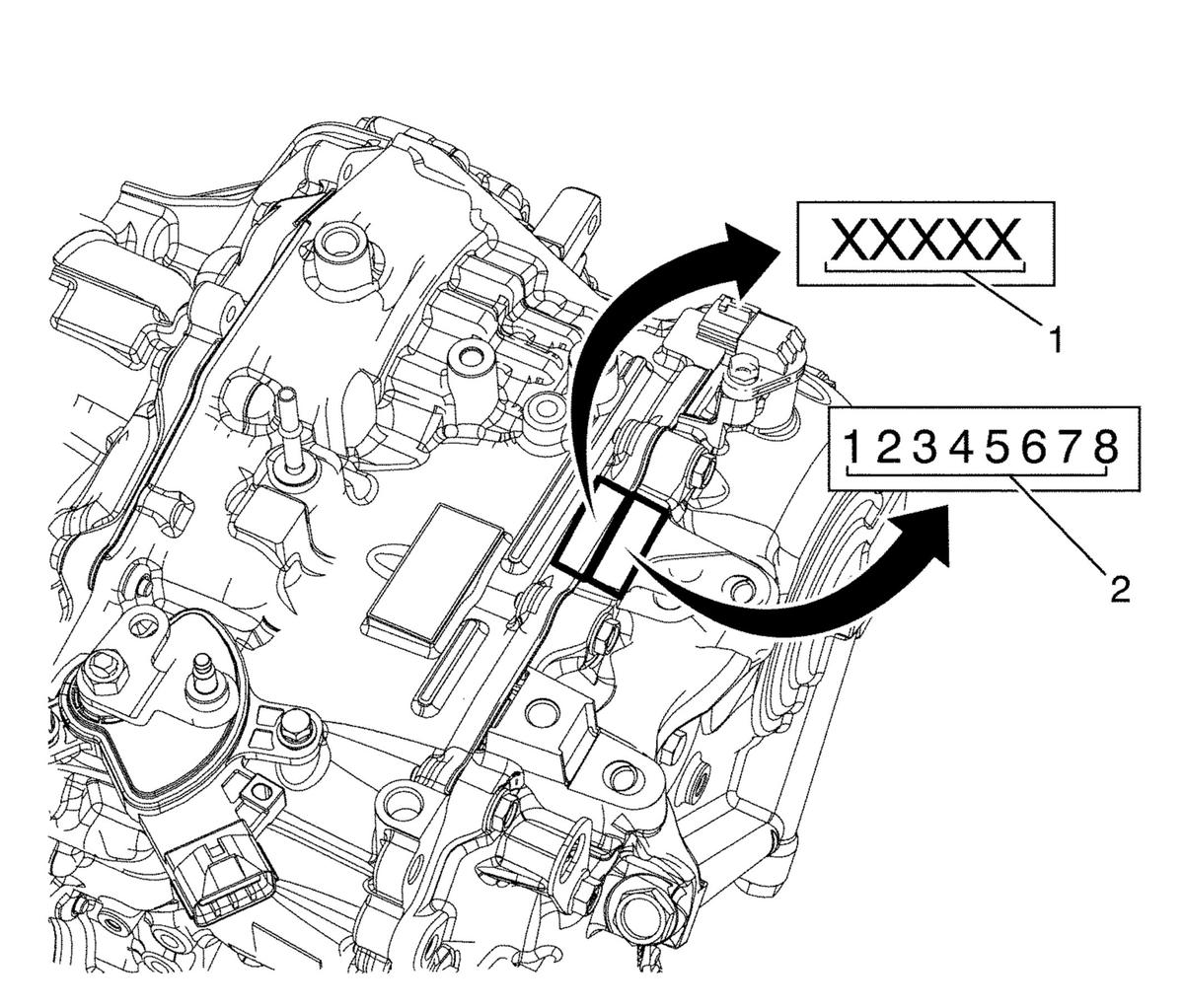

| Position | Data |
|---|---|
| 1 | Last Five Digits of CVT Assembly Part Number |
| 2 | GM 8 Digit Part Number 1 = Last one digit of production year 2 = Production month (1 - 9 = Jan. - Sep., X = Oct., Y = Nov., Z = Dec.) 3 = Indication of production line 45678 = Production number (Indication of serial number) |

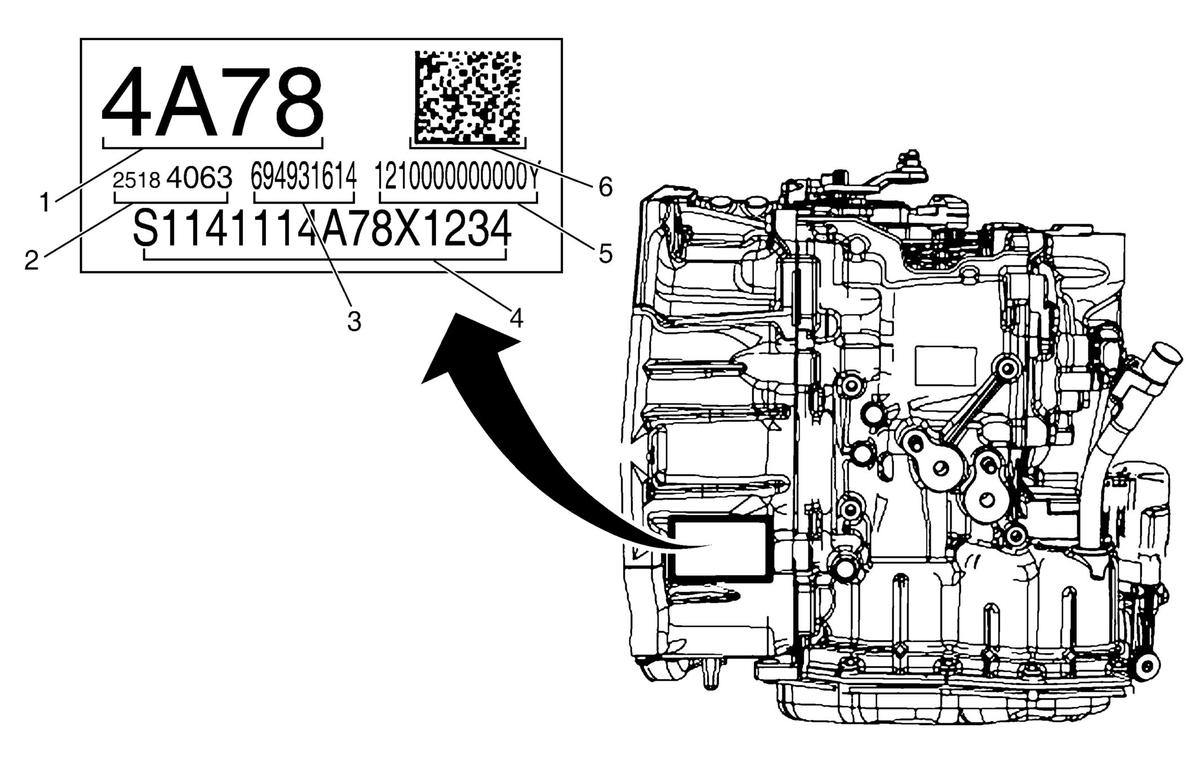

| Position | Data |
|---|---|
| 1 | Broadcast Code |
| 2 | GM Part Number |
| 3 | Manufacturing/Assembly DUNS ID |
| 4 | GM Defined Trace Code |
| 5 | GM Vehicle Partitioning Production Structure Code |
| 6 | Data Encoded in 2D |
