Front Side Door Window Frame Outer Rear Blackout Tape Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

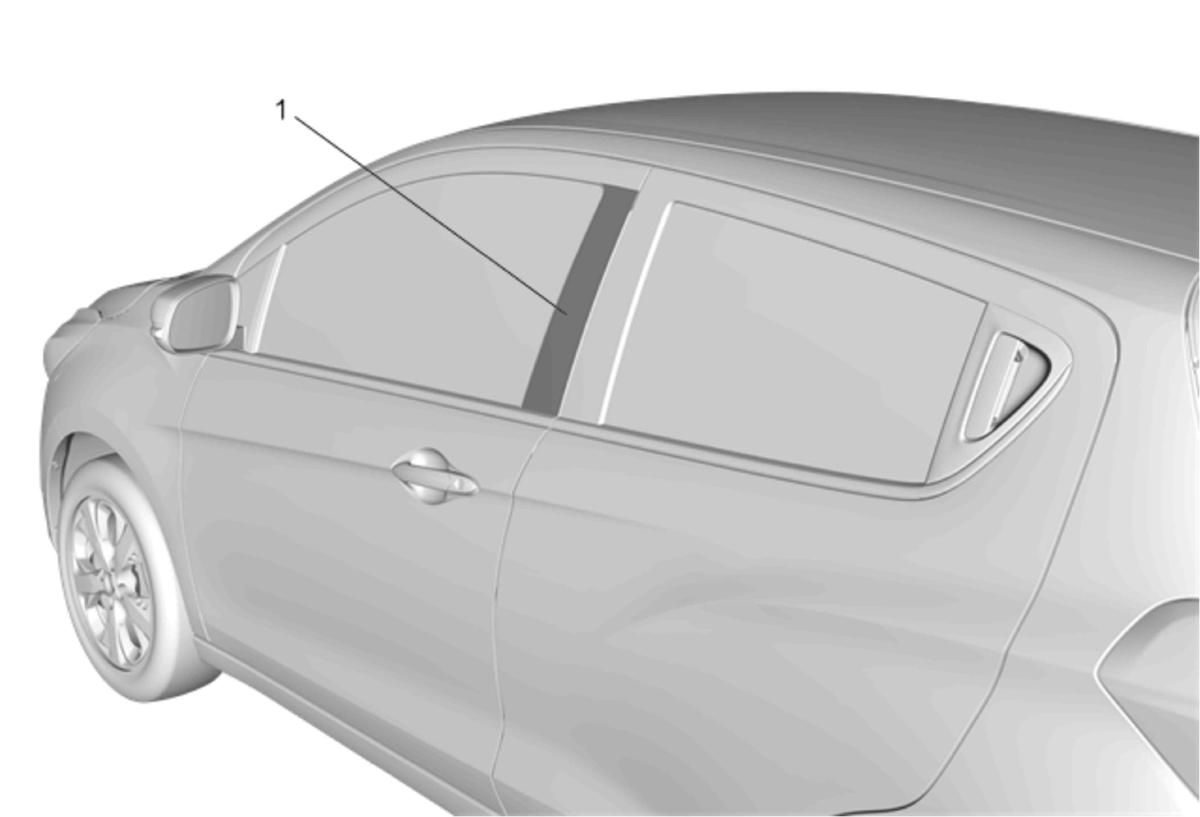

Fig 1: Front Side Door Window Frame Rear Applique Tape

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front side door window belt reveal molding. Refer to Front Side Door Window Belt Reveal Molding Replacement . Grasp upper corner of the window weatherstrip, pull downward releasing the assembly from the door frame. NOTE: Do not need to remove the weatherstrip assembly. Just partially peel off the weatherstrip to attach the tape.
1	Front Side Door Window Frame Rear Applique Tape Procedure Fit the tape pre-mask line to the panel character line. Peel off the inside paper. Attach the tape to the door panel. Press the tape by using a squeegee or equivalent. Peel off the outside paper. Wrap the corner areas of the tape. Inspect the tape is properly attached. NOTE: This applique is an adhesive tape.

Callout

Component Name

Preliminary Procedures

Remove the front side door window belt reveal molding. Refer to Front Side Door Window Belt Reveal Molding Replacement .
Grasp upper corner of the window weatherstrip, pull downward releasing the assembly from the door frame.

NOTE: Do not need to remove the weatherstrip assembly. Just partially peel off the weatherstrip to attach the tape.

Front Side Door Window Frame Rear Applique Tape

Procedure

Fit the tape pre-mask line to the panel character line.
Peel off the inside paper.
Attach the tape to the door panel.
Press the tape by using a squeegee or equivalent.
Peel off the outside paper.
Wrap the corner areas of the tape.
Inspect the tape is properly attached.

NOTE: This applique is an adhesive tape.
