Removal Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Refer to Battery Disconnect Warning .
  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Remove the instrument panel knee bolster (3). Refer to Instrument Panel Knee Bolster Replacement .
    Fig 1: Instrument Panel Knee Bolster
    GM4052319Courtesy of GENERAL MOTORS COMPANY
  3. Remove the instrument panel compartment (2). Refer to Instrument Panel Compartment Replacement .
    Fig 2: Instrument Panel Compartment
    GM4052308Courtesy of GENERAL MOTORS COMPANY
  4. Remove the floor air outlet duct (2). Refer to Floor Air Outlet Duct Replacement - Right Side (Left Hand Drive)Floor Air Outlet Duct Replacement - Right Side (Right Hand Drive) .
    Fig 3: Floor Air Outlet Duct - Right Side (Left Hand Drive)
    GM4051937Courtesy of GENERAL MOTORS COMPANY
  5. Remove the temperature control cable retaining screw (1).

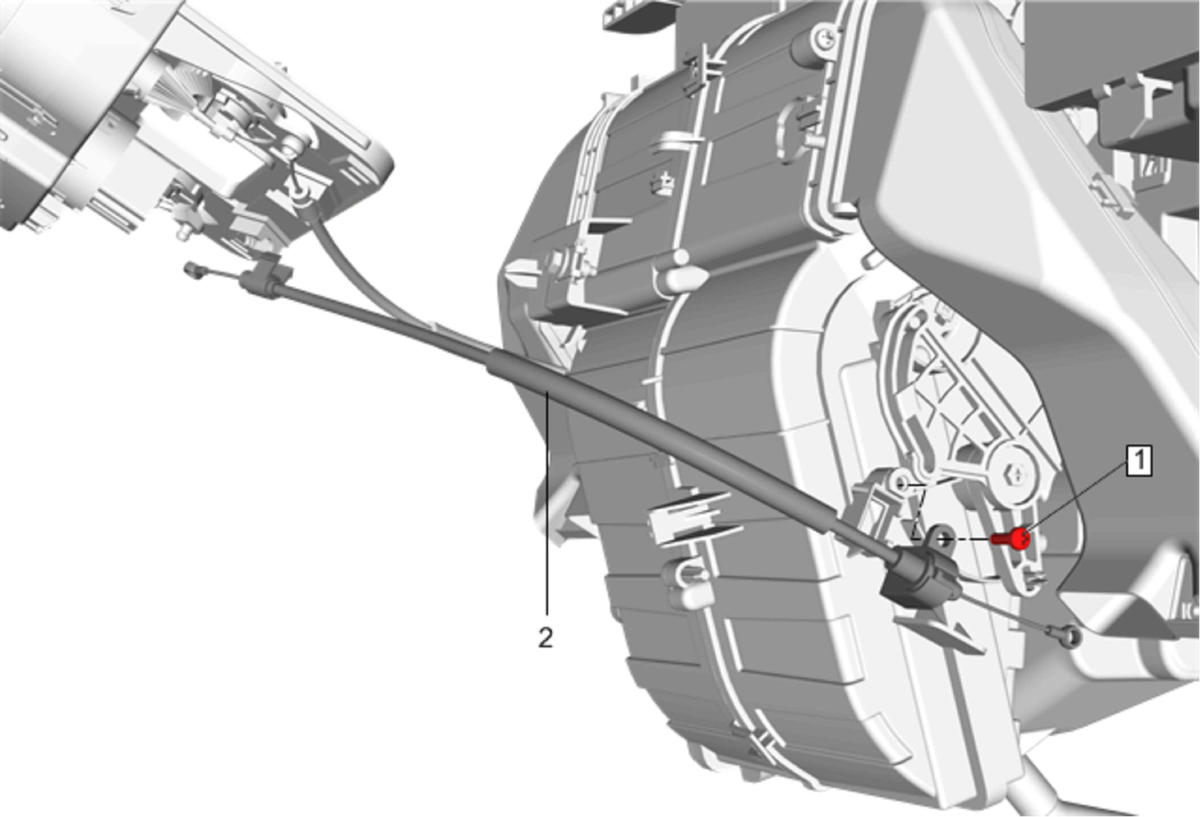

    Fig 4: Temperature Control Cable Retaining Screw
    GM4052218Courtesy of GENERAL MOTORS COMPANY
  6. Detach the temperature control cable (2) from the HVAC module.
  7. Remove the inside air recirculating control cable retaining screw (1).

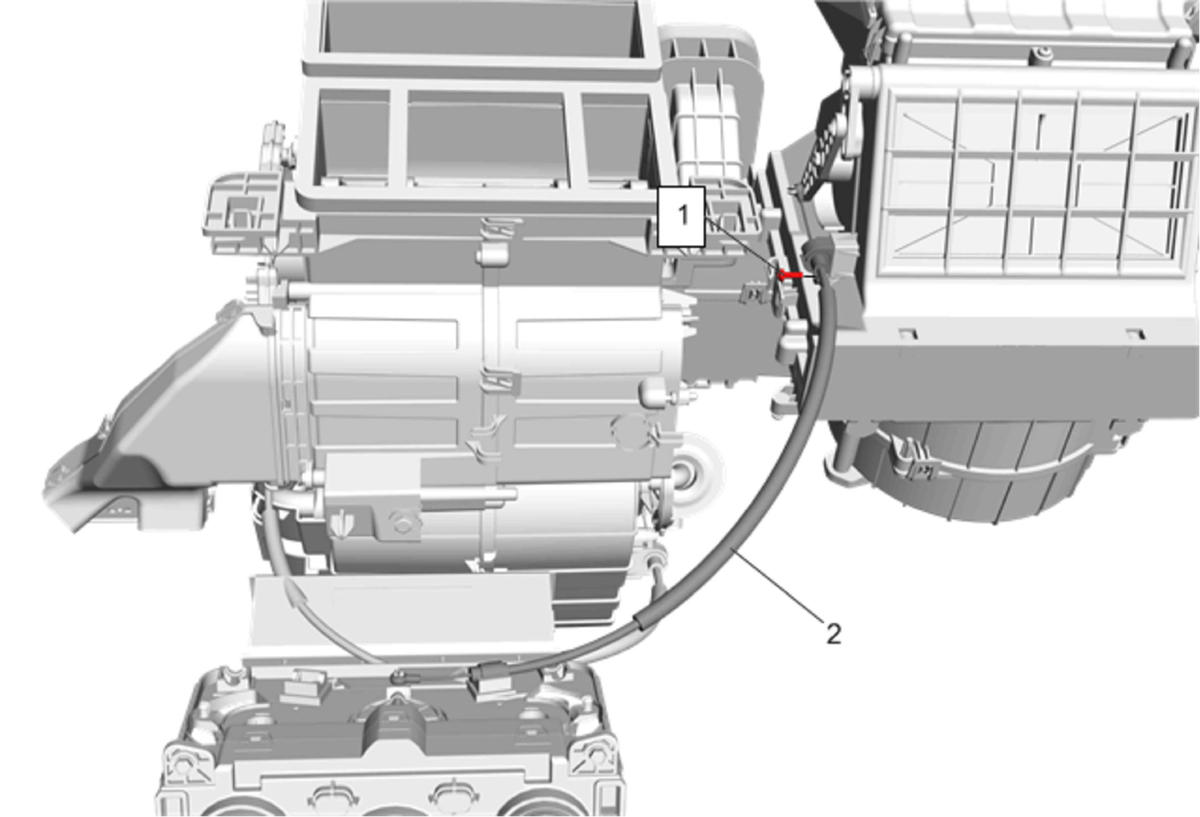

    Fig 5: Inside Air Recirculating Control Cable And Retaining Screw
    GM4168422Courtesy of GENERAL MOTORS COMPANY
  8. Detach the inside air recirculating control cable (2) from the HVAC module.
  9. Remove the mode control cable retaining screw (1).

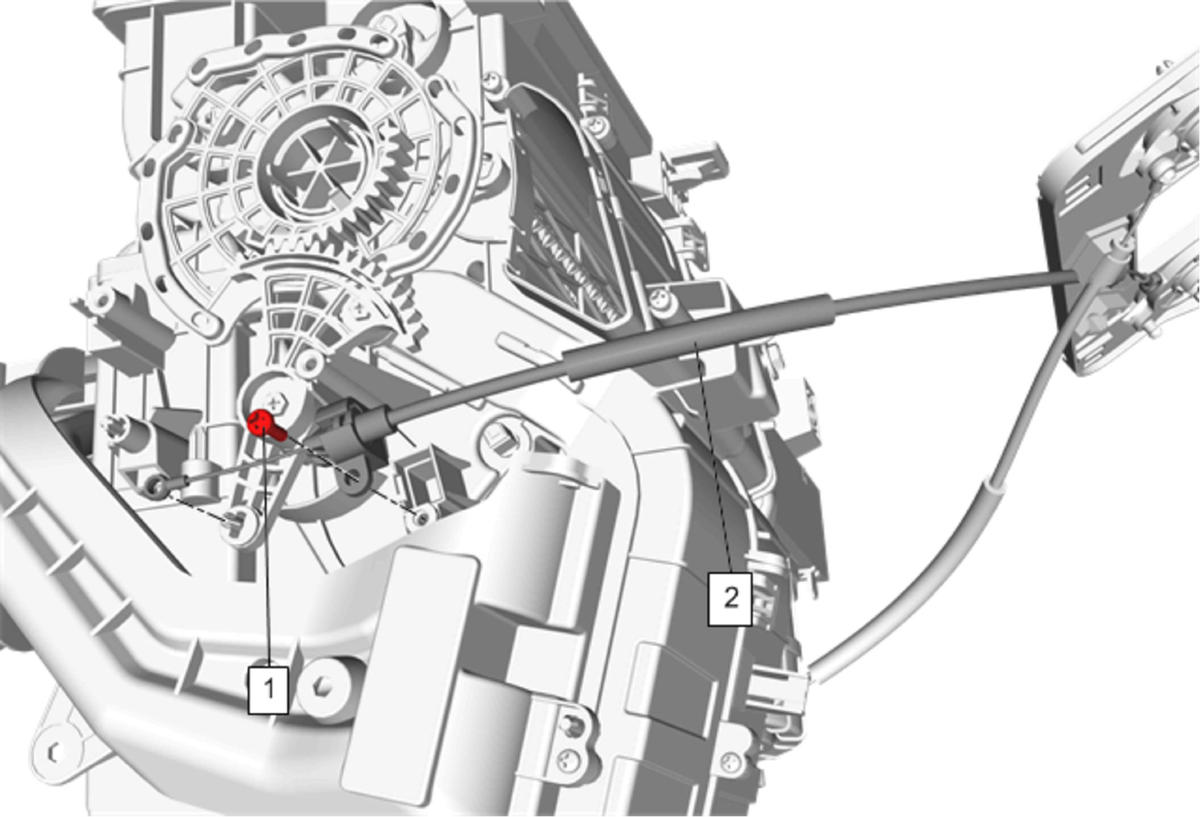

    Fig 6: Mode Control Cable And Retaining Screw
    GM4052199Courtesy of GENERAL MOTORS COMPANY
  10. Detach the mode control cable (2) from the HVAC module.
  11. Remove the instrument panel (I/P) lower trim plate applique (3). Refer to Instrument Panel Lower Trim Plate Applique Replacement .

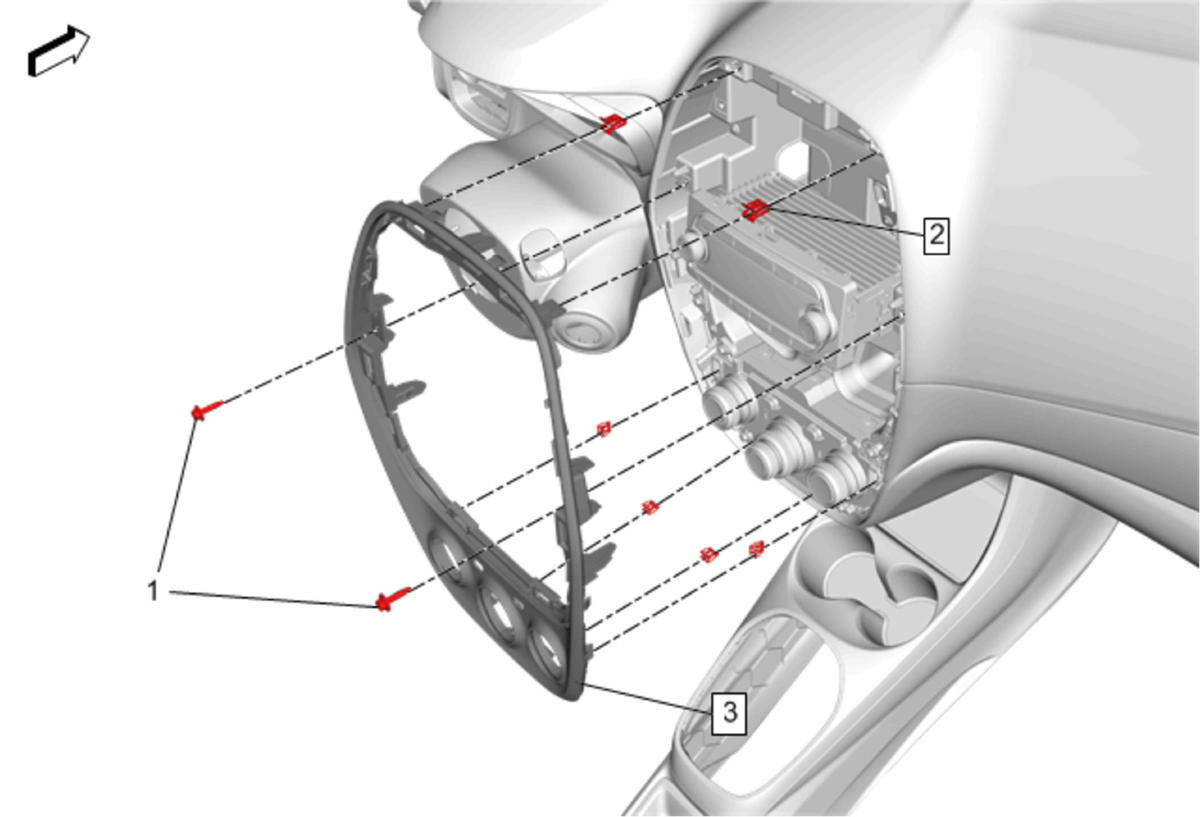

    Fig 7: Instrument Panel (I/P) Lower Trim Plate Applique
    GM4116376Courtesy of GENERAL MOTORS COMPANY
  12. Remove the heater and air conditioning (A/C) control screws (1).

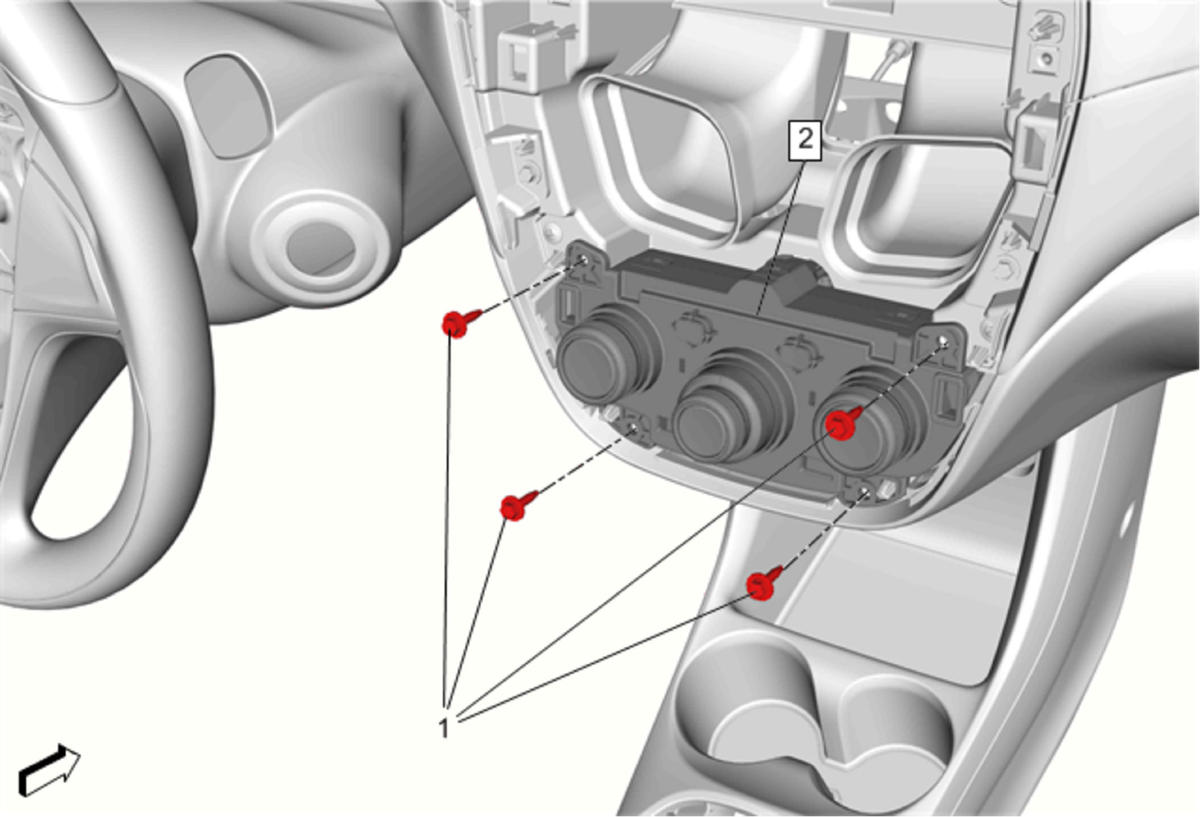

    Fig 8: Heater And Air Conditioning (A/C) Control And Screws
    GM4116382Courtesy of GENERAL MOTORS COMPANY
  13. Slide out the heater and air conditioning (A/C) control (2).
  14. Remove the heater and air conditioning control with cables (1).

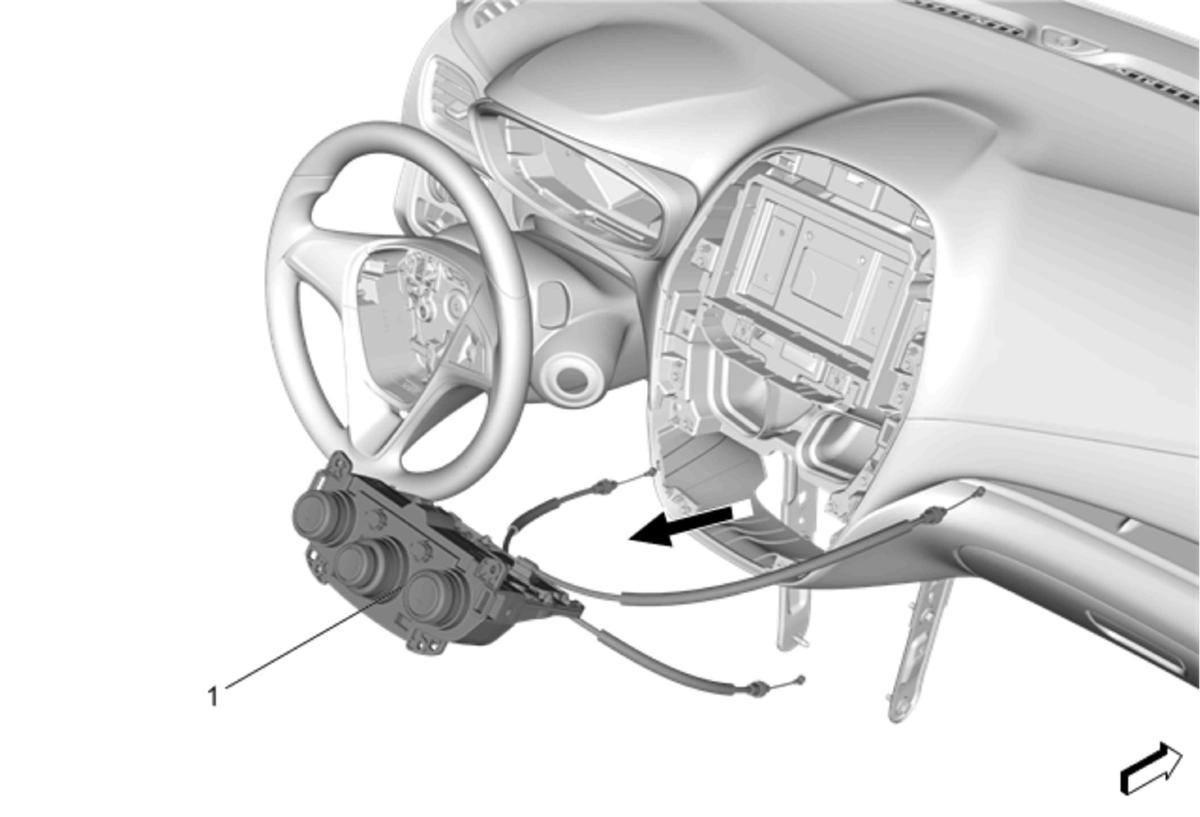

    Fig 9: Heater And Air Conditioning Control With Cables
    GM4236296Courtesy of GENERAL MOTORS COMPANY
