Installation Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the heater and air conditioning control with cables (1) through the opening.

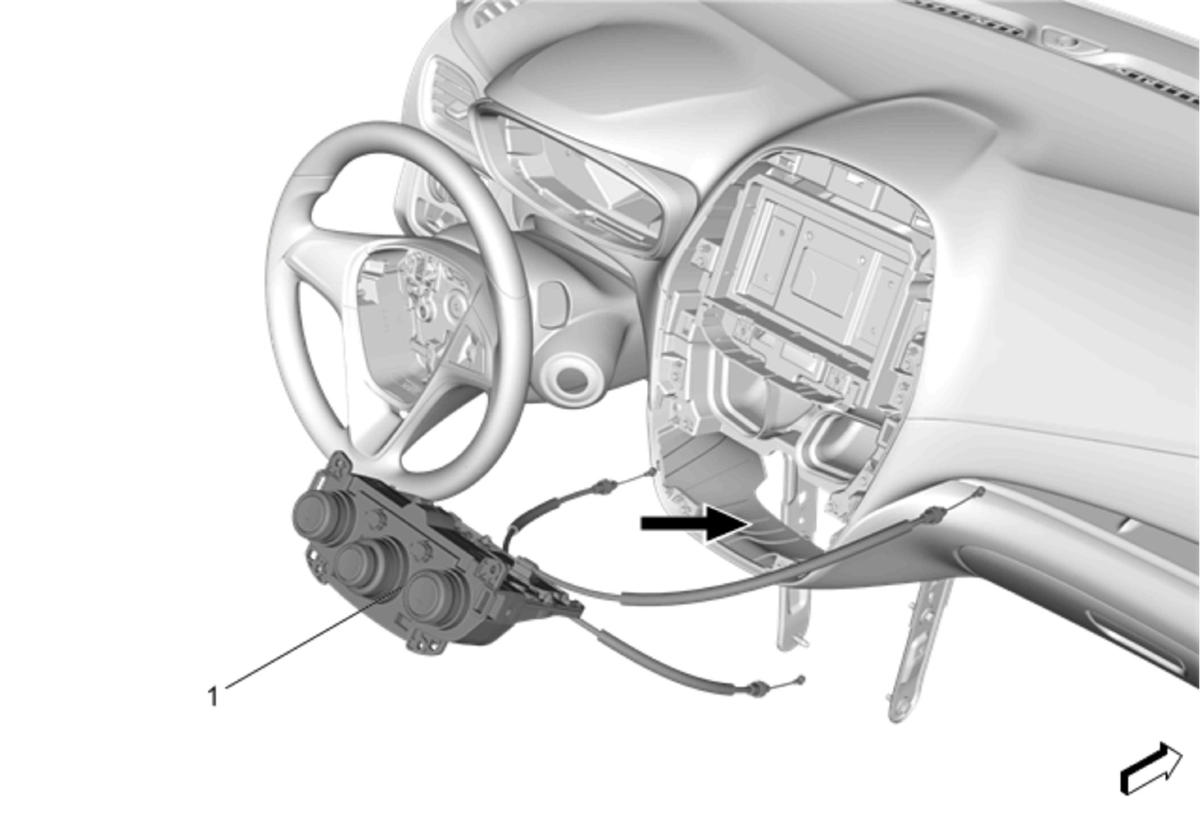

    Fig 1: Heater And Air Conditioning Control With Cables
    GM4236298Courtesy of GENERAL MOTORS COMPANY
  2. Install the heater and A/C control (2).
    Fig 2: Heater And Air Conditioning (A/C) Control And Screws
    GM4116382Courtesy of GENERAL MOTORS COMPANY
    CAUTION: Refer to Fastener Caution .
  3. Install the heater and A/C control screws (1) and tighten to 2.5 N.m (23 lb in).
  4. Install the instrument panel (I/P) lower trim plate applique (3). Refer to Instrument Panel Lower Trim Plate Applique Replacement .
    Fig 3: Instrument Panel (I/P) Lower Trim Plate Applique
    GM4116376Courtesy of GENERAL MOTORS COMPANY
  5. Attach the mode control cable (2) to the HVAC module.
    Fig 4: Mode Control Cable And Retaining Screw
    GM4052199Courtesy of GENERAL MOTORS COMPANY
  6. Install the mode control cable retaining screw (1) and tighten to 1.2 N.m (11 lb in).
  7. Attach the inside air recirculating control cable (2) to the HVAC module.
    Fig 5: Inside Air Recirculating Control Cable And Retaining Screw
    GM4168422Courtesy of GENERAL MOTORS COMPANY
  8. Install the inside air recirculating control cable retaining screw (1) and tighten to 1.2 N.m (11 lb in).
  9. Attach the temperature control cable (2) from the HVAC module.
    Fig 6: Temperature Control Cable Retaining Screw
    GM4052218Courtesy of GENERAL MOTORS COMPANY
  10. Install the temperature control cable retaining screw (1) and tighten to 1.2 N.m (11 lb in).
  11. Install the floor air outlet duct (2). Refer to Floor Air Outlet Duct Replacement - Right Side (Left Hand Drive)Floor Air Outlet Duct Replacement - Right Side (Right Hand Drive) .
    Fig 7: Floor Air Outlet Duct - Right Side (Left Hand Drive)
    GM4051937Courtesy of GENERAL MOTORS COMPANY
  12. Install the instrument panel compartment (2). Refer to Instrument Panel Compartment Replacement .
    Fig 8: Instrument Panel Compartment
    GM4052308Courtesy of GENERAL MOTORS COMPANY
  13. Install the instrument panel knee bolster (3). Refer to Instrument Panel Knee Bolster Replacement .
    Fig 9: Instrument Panel Knee Bolster
    GM4052319Courtesy of GENERAL MOTORS COMPANY
  14. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
