Rear Seat Back Cushion Hinge Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

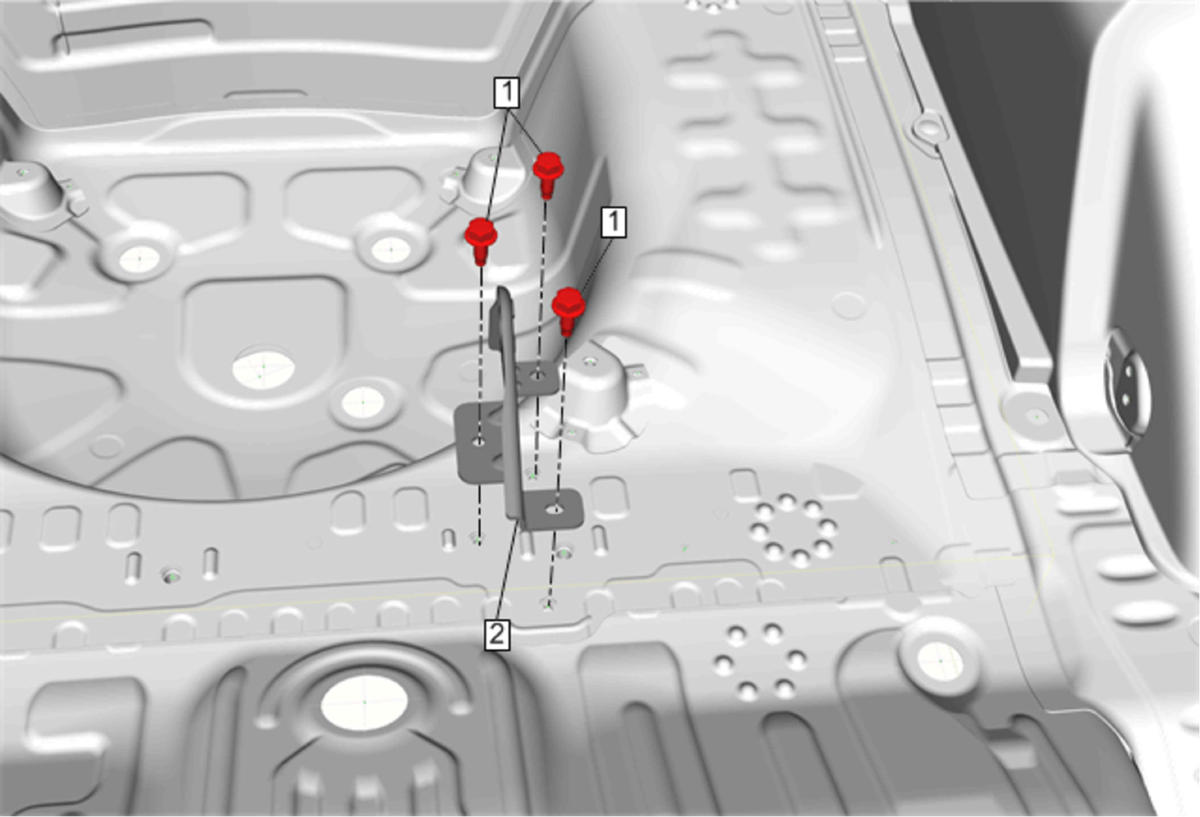

Fig 1: Rear Seat Back Cushion Hinge Replacement
GM4025178Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation (Base) Rear Seat Cushion Removal and Installation (60 Percent Seat) Rear Seat Cushion Removal and Installation (40 Percent Seat) .
  2. Remove the rear seat back cushion. Refer to Rear Seat Back Cushion Removal and Installation (Base) Rear Seat Back Cushion Removal and Installation (40 Percent Seat) Rear Seat Back Cushion Removal and Installation (60 Percent Seat) .
1 Rear Seat Back Cushion Hinge Bolt (Qty: 3)
CAUTION: Refer to Fastener Caution .

Tighten
43 N.m (32 lb ft)
2 Rear Seat Back Cushion Hinge
