Rear Seat Back Cushion Frame Replacement (Base)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

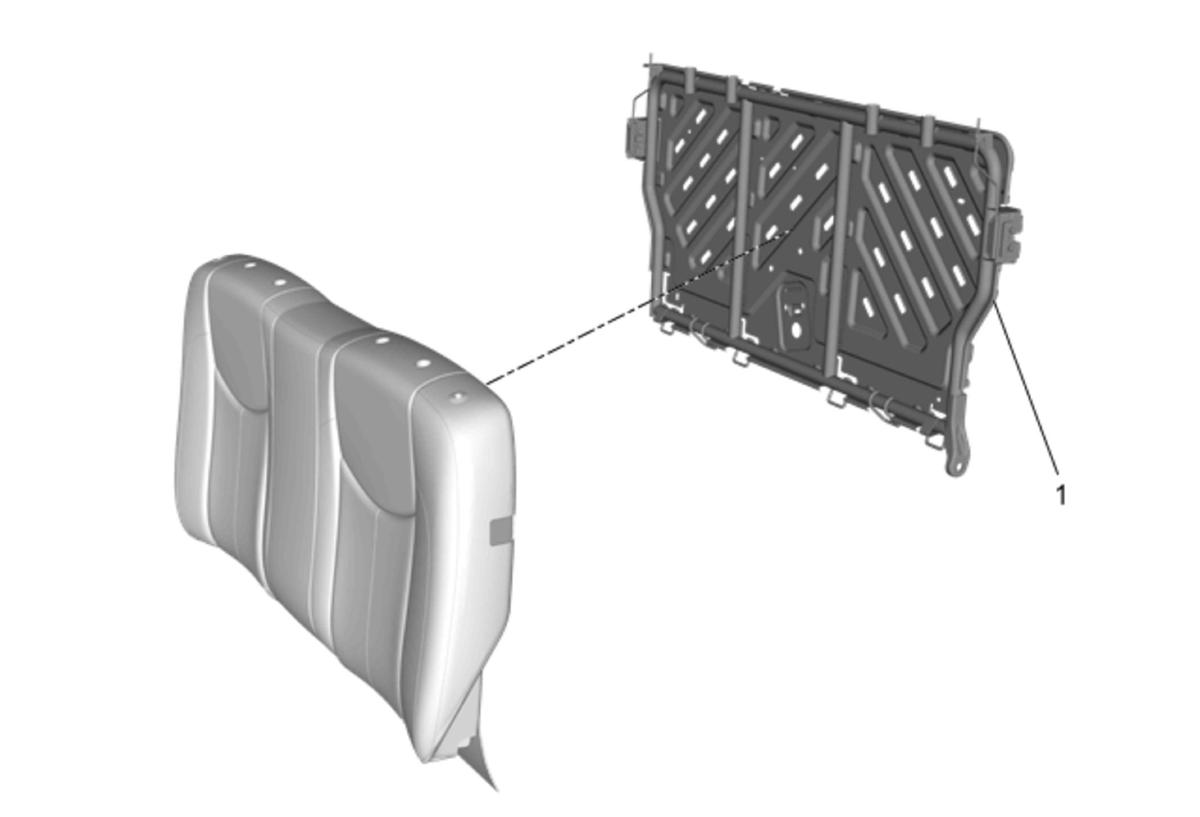

Fig 1: Rear Seat Back Cushion Frame (Base)
GM4750515Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Rear Seat Back Cushion Cover and Pad - Base - Remove - Rear Seat Back Cushion Cover and Pad Replacement (Base)
  2. Rear Seat Head Restraint Replacement
  3. Rear Seat Back Cushion Latch Release Handle Replacement
1 Rear Seat Back Cushion Frame

Procedure

  1. Remove the hog rings and unzip the zippers on both sides of the cover.
  2. Rear Seat Head Restraint Guide - Remove - Rear Seat Head Restraint Guide Replacement
  3. Remove the cover and pad assembly from the rear seat back cushion frame.
  4. Transfer components as necessary.
NOTE: Remove the cover and pad as an assembly. Do not separate the cover from the pad.
