Rear Seat Back Cushion Frame Replacement (40 Percent Seat)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

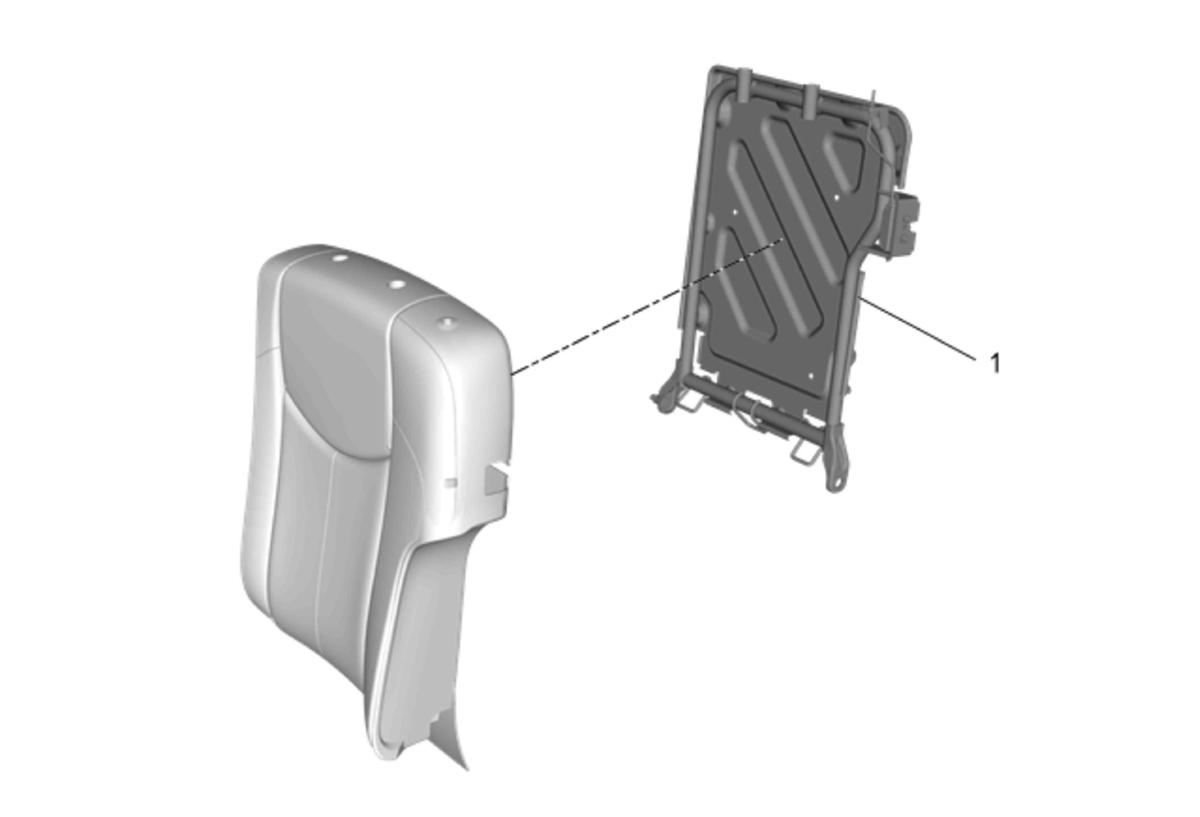

Fig 1: Rear Seat Back Cushion Frame (40 Percent Seat)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Rear Seat Back Cushion Cover and Pad - 40 Percent Seat - Remove - Rear Seat Back Cushion Cover and Pad Replacement (40 Percent Seat) Rear Seat Head Restraint Replacement Rear Seat Back Cushion Latch Release Handle Replacement
1	Rear Seat Back Cushion Frame Procedure Remove the hog rings and unzip the zippers on both sides of the cover. Rear Seat Head Restraint Guide - Remove - Rear Seat Head Restraint Guide Replacement Remove the cover and pad assembly from the rear seat back cushion frame. Transfer components as necessary. NOTE: Remove the cover and pad as an assembly. Do not separate the cover from the pad.

Callout

Component Name

Preliminary Procedures

Rear Seat Back Cushion Cover and Pad - 40 Percent Seat - Remove - Rear Seat Back Cushion Cover and Pad Replacement (40 Percent Seat)
Rear Seat Head Restraint Replacement
Rear Seat Back Cushion Latch Release Handle Replacement

Rear Seat Back Cushion Frame

Procedure

Remove the hog rings and unzip the zippers on both sides of the cover.
Rear Seat Head Restraint Guide - Remove - Rear Seat Head Restraint Guide Replacement
Remove the cover and pad assembly from the rear seat back cushion frame.
Transfer components as necessary.

NOTE: Remove the cover and pad as an assembly. Do not separate the cover from the pad.
