Rear Side Door Outside Handle Rod Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

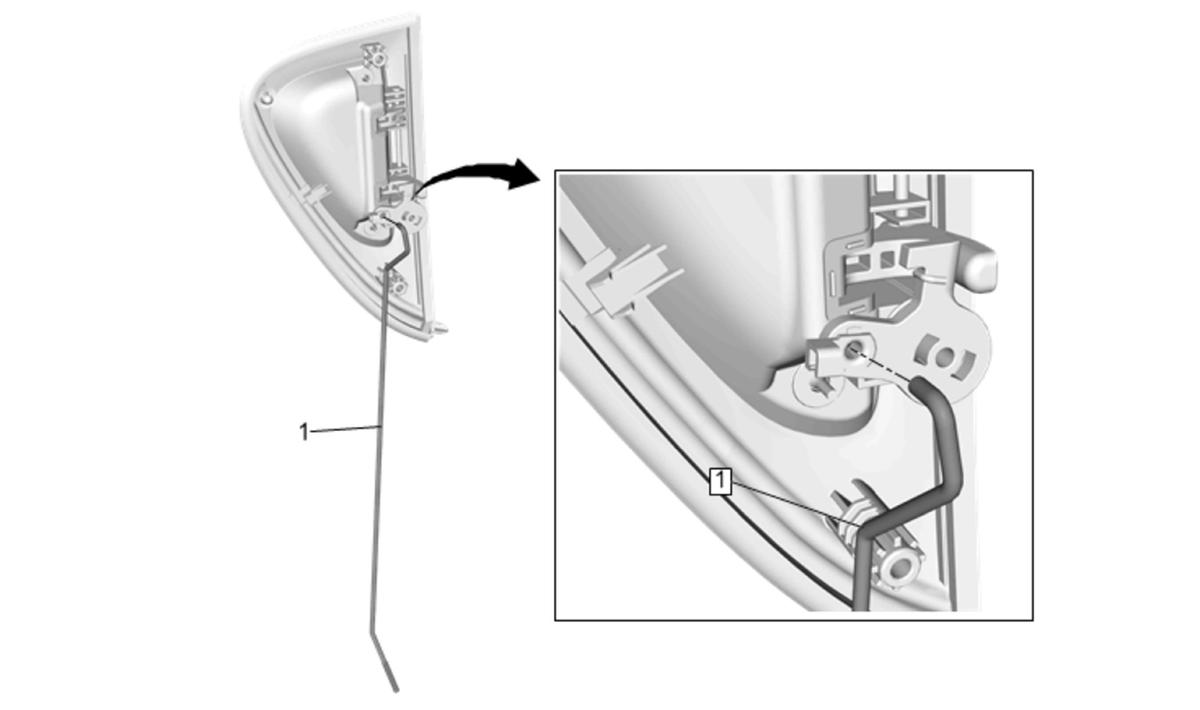

Fig 1: Rear Side Door Outside Handle Rod

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear side door outside handle. Refer to Rear Side Door Outside Handle Replacement .
1	Rear Side Door Outside Handle Rod Procedure Use a flat-head tool to open the retainer from the outside handle. In order to prevent outside handle lever pre-load, lock the outside handle shall be fully secured to the door prior to securing integral lock clip to outside handle rod. Integral lock clip shall be in the full up position while securing to outside handle rod. Refer to Rear Side Door Outside Handle Rod Adjustment . NOTE: Inspect the door lock system for proper operation before installing the door trim.

Callout

Component Name

Preliminary Procedure
Remove the rear side door outside handle. Refer to Rear Side Door Outside Handle Replacement .

Rear Side Door Outside Handle Rod

Procedure

Use a flat-head tool to open the retainer from the outside handle.
In order to prevent outside handle lever pre-load, lock the outside handle shall be fully secured to the door prior to securing integral lock clip to outside handle rod. Integral lock clip shall be in the full up position while securing to outside handle rod. Refer to Rear Side Door Outside Handle Rod Adjustment .

NOTE:

Inspect the door lock system for proper operation before installing the door trim.
