Front and Rear Side Door Outside Handle Rod Clip Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

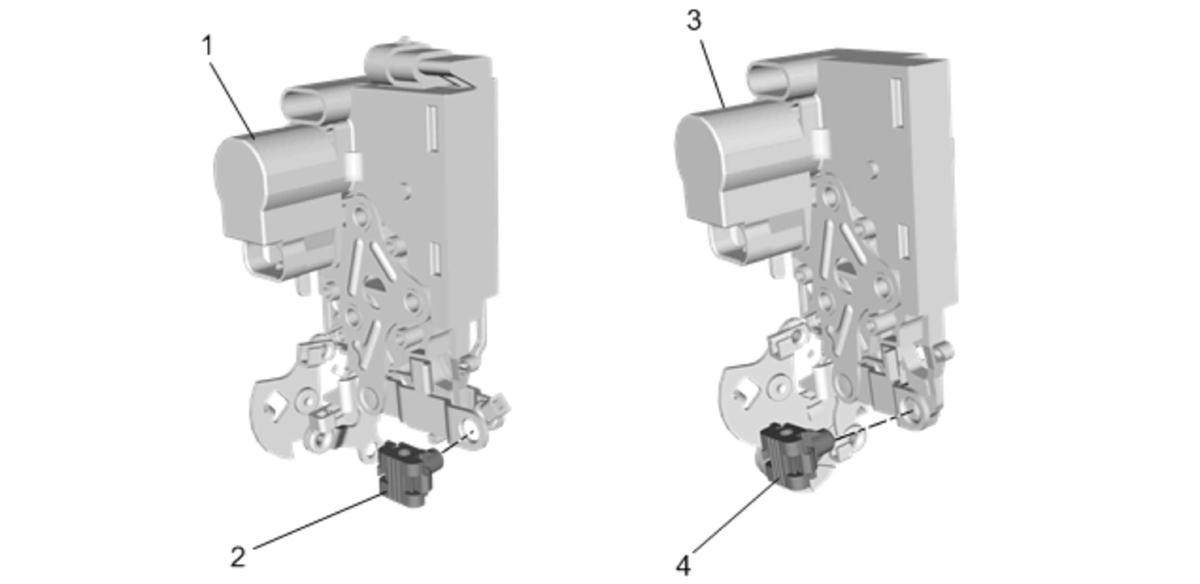

Fig 1: Front and Rear Side Door Outside Handle Rod Clip

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front side door lock for front side door outside handle rod clip. Refer to Front Side Door Lock Replacement . Remove the rear side door lock for rear side door outside handle rod clip. Refer to Rear Side Door Lock Replacement .
1	Front Side Door Lock Assembly
2	Front Side Door Outside Handle Rod Clip Procedure Using the appropriate tool, remove the old outside door handle rod clip from the side door lock.
3	Rear Side Door Lock Assembly
4	Rear Side Door Outside Handle Rod Clip Procedure Using the appropriate tool, remove the old outside door handle rod clip from the side door lock.
