Front Side Door Lock Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

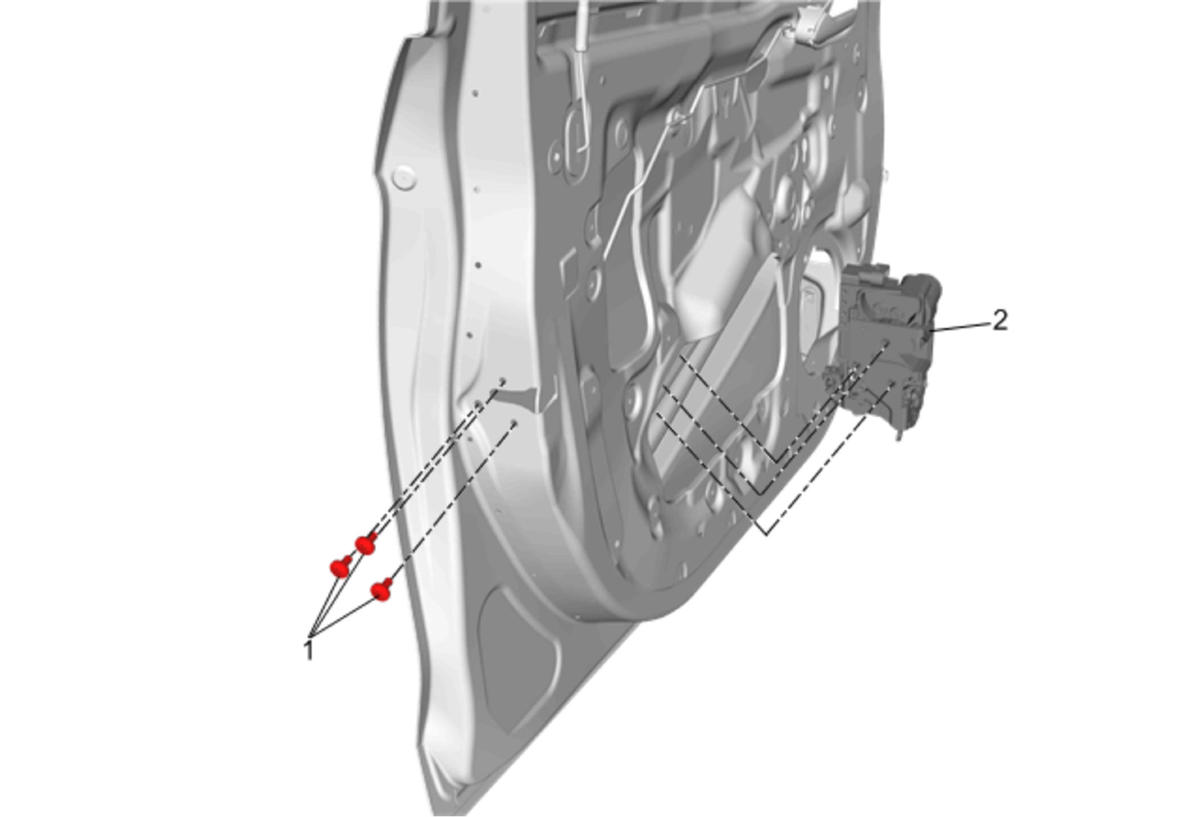

Fig 1: Front Side Door Lock

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front side door trim. Refer to Front Side Door Trim Replacement . Remove the water deflector. Disconnect the front side door outside handle rod, inside handle rod, locking rod and lock cylinder rod.
1	Front Side Door Lock Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 8.5 N.m (75 lb in)
2	Front Side Door Lock Assembly Procedure Disconnect the door lock electrical connector.

Callout

Component Name

Preliminary Procedures

Remove the front side door trim. Refer to Front Side Door Trim Replacement .
Remove the water deflector.
Disconnect the front side door outside handle rod, inside handle rod, locking rod and lock cylinder rod.

Front Side Door Lock Screw (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Tighten
8.5 N.m (75 lb in)

Front Side Door Lock Assembly
Procedure
Disconnect the door lock electrical connector.
