Front Side Door Outside Handle Bracket Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

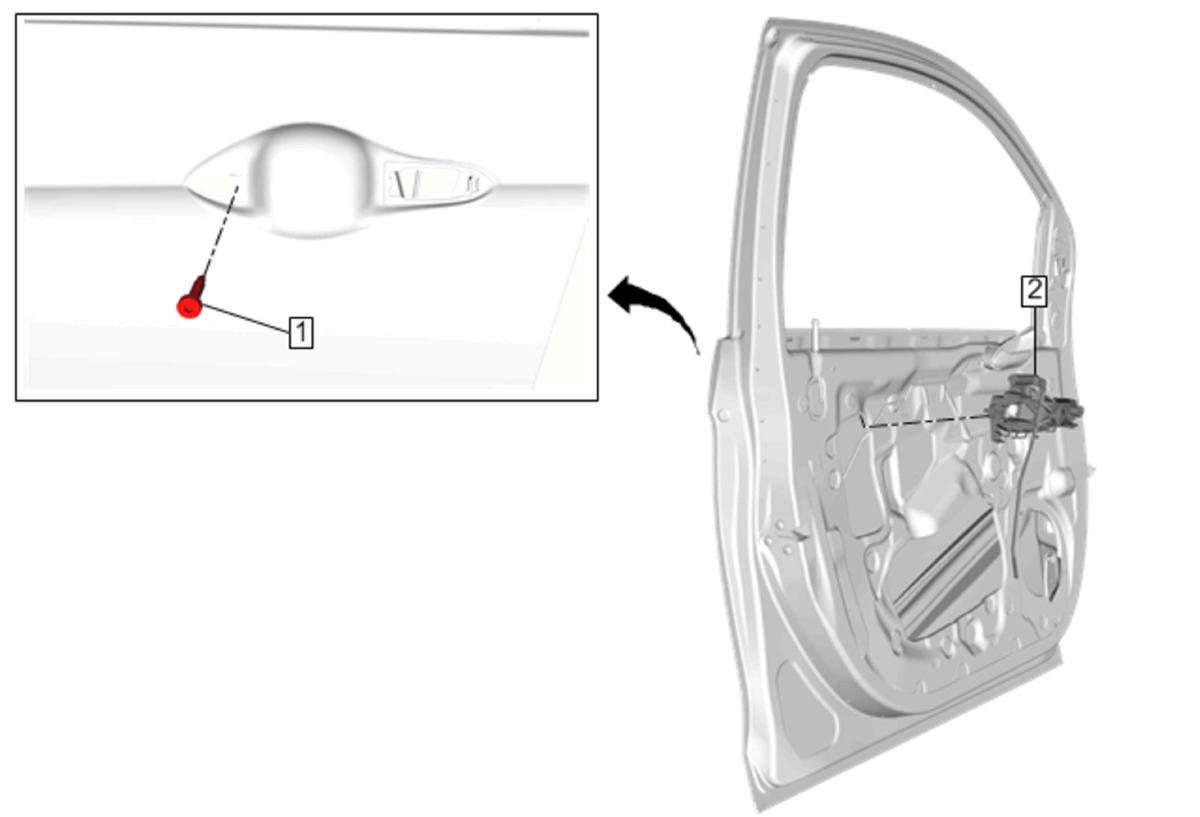

Fig 1: Front Side Door Outside Handle Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front side door trim. Refer to Front Side Door Trim Replacement . Remove the front side door outside handle. Refer to Front Side Door Outside Handle Replacement . Disconnect the front side door outside handle rod from front side door lock. Refer to Front Side Door Outside Handle Rod Replacement .
1	Front Side Door Outside Handle Bracket Screw CAUTION: Refer to Fastener Caution . Procedure Remove the front side door water deflector. Tighten 5 N.m (44 lb in)
2	Front Side Door Outside Handle Bracket Procedure Release front side door outside handle rod mechanism at shift linkage lever - clip. Release the front side door latch cylinder rod from the door latch. Transfer components as necessary. Inspect the door latch system for proper operation before installing the door trim panel.

Callout

Component Name

Preliminary Procedures

Remove the front side door trim. Refer to Front Side Door Trim Replacement .
Remove the front side door outside handle. Refer to Front Side Door Outside Handle Replacement .
Disconnect the front side door outside handle rod from front side door lock. Refer to Front Side Door Outside Handle Rod Replacement .

Front Side Door Outside Handle Bracket Screw

CAUTION:

Refer to Fastener Caution .

Procedure
Remove the front side door water deflector.
Tighten
5 N.m (44 lb in)

Front Side Door Outside Handle Bracket

Procedure

Release front side door outside handle rod mechanism at shift linkage lever - clip.
Release the front side door latch cylinder rod from the door latch.
Transfer components as necessary.
Inspect the door latch system for proper operation before installing the door trim panel.
