Front Side Door Lock Cylinder Rod Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

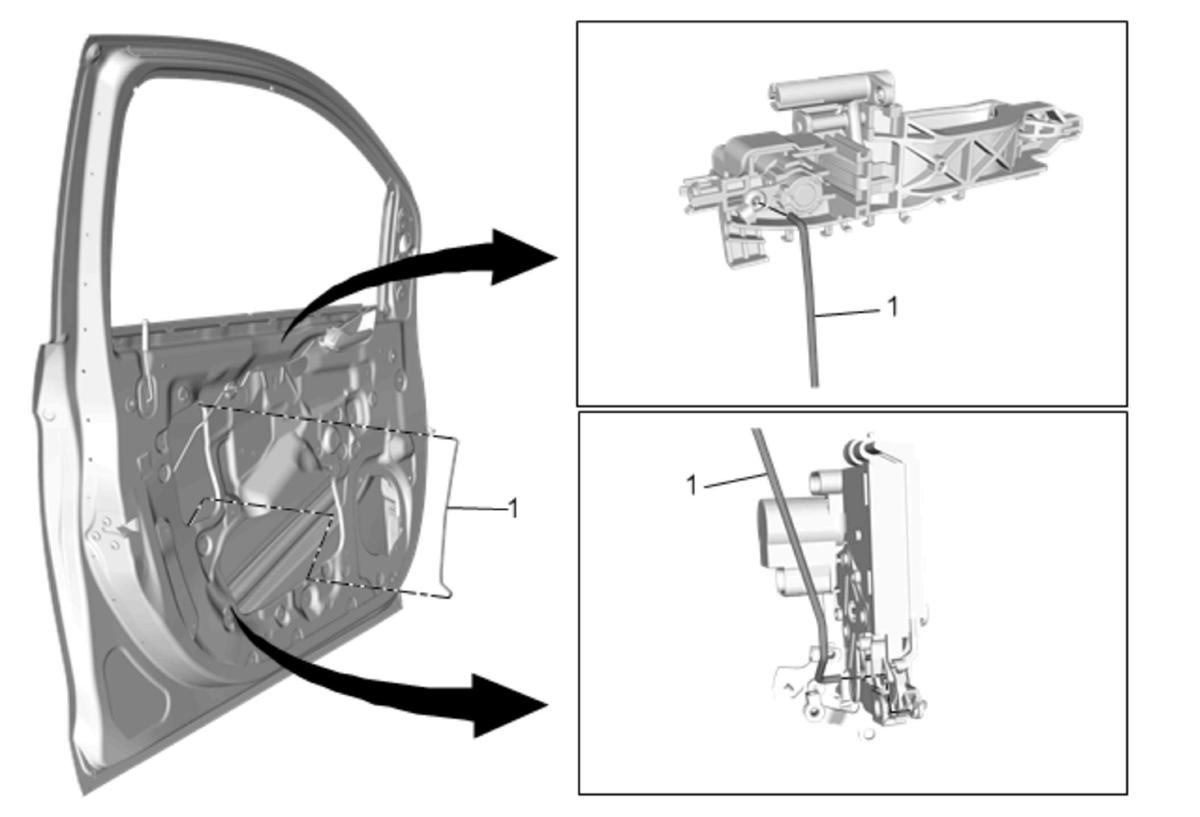

Fig 1: Front Side Door Lock Cylinder Rod

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Place the window in the full up position. Remove the front side door trim. Refer to Front Side Door Trim Replacement . Remove the water deflector.
1	Front Side Door Lock Cylinder Rod NOTE: Inspect the door lock system for proper operation before installing the door trim.

Callout

Component Name

Preliminary Procedures

Place the window in the full up position.
Remove the front side door trim. Refer to Front Side Door Trim Replacement .
Remove the water deflector.

Front Side Door Lock Cylinder Rod

NOTE:

Inspect the door lock system for proper operation before installing the door trim.
