Removal Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front side door trim. Refer to Front Side Door Trim Replacement .
  2. Remove the water deflector.
  3. Remove the front side door lock cylinder rod.
    4. Fig 1: Front Side Door Lock Cylinder Screw Access Plug And Cylinder Clamp Screw
    GM4025073Courtesy of GENERAL MOTORS COMPANY
  4. Remove the front side door lock cylinder screw access plug (1) and front side door lock cylinder clamp screw (2).

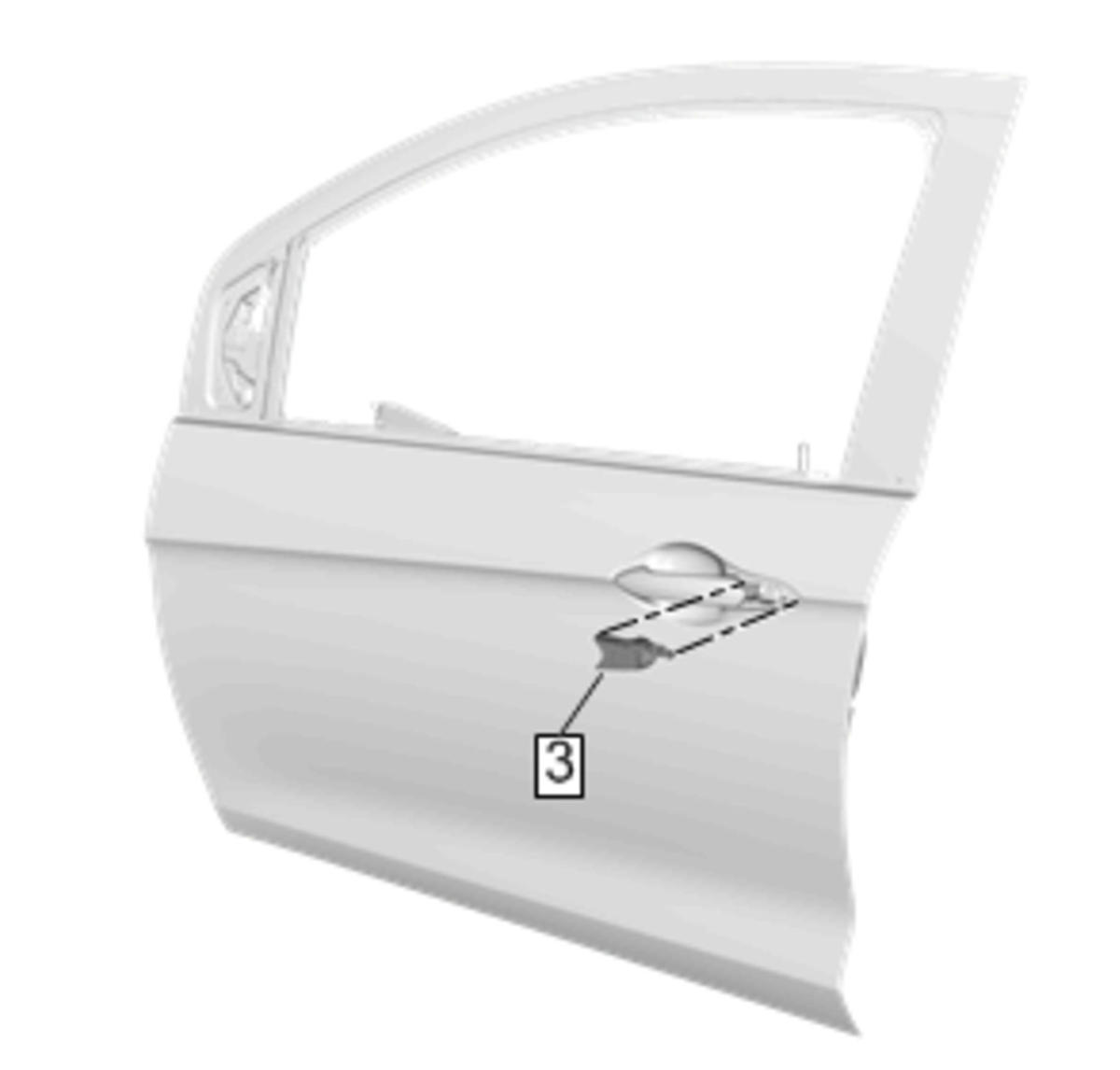

    5. Fig 2: Front Side Door Lock Cylinder And Cover Assembly
    GM4025074Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do Not remove the cylinder clamp screw completely from the housing, unscrew the screw to a hard stop, releasing the cylinder from the housing.

  5. Remove the front side door lock cylinder together with front side door lock cylinder cover (3).

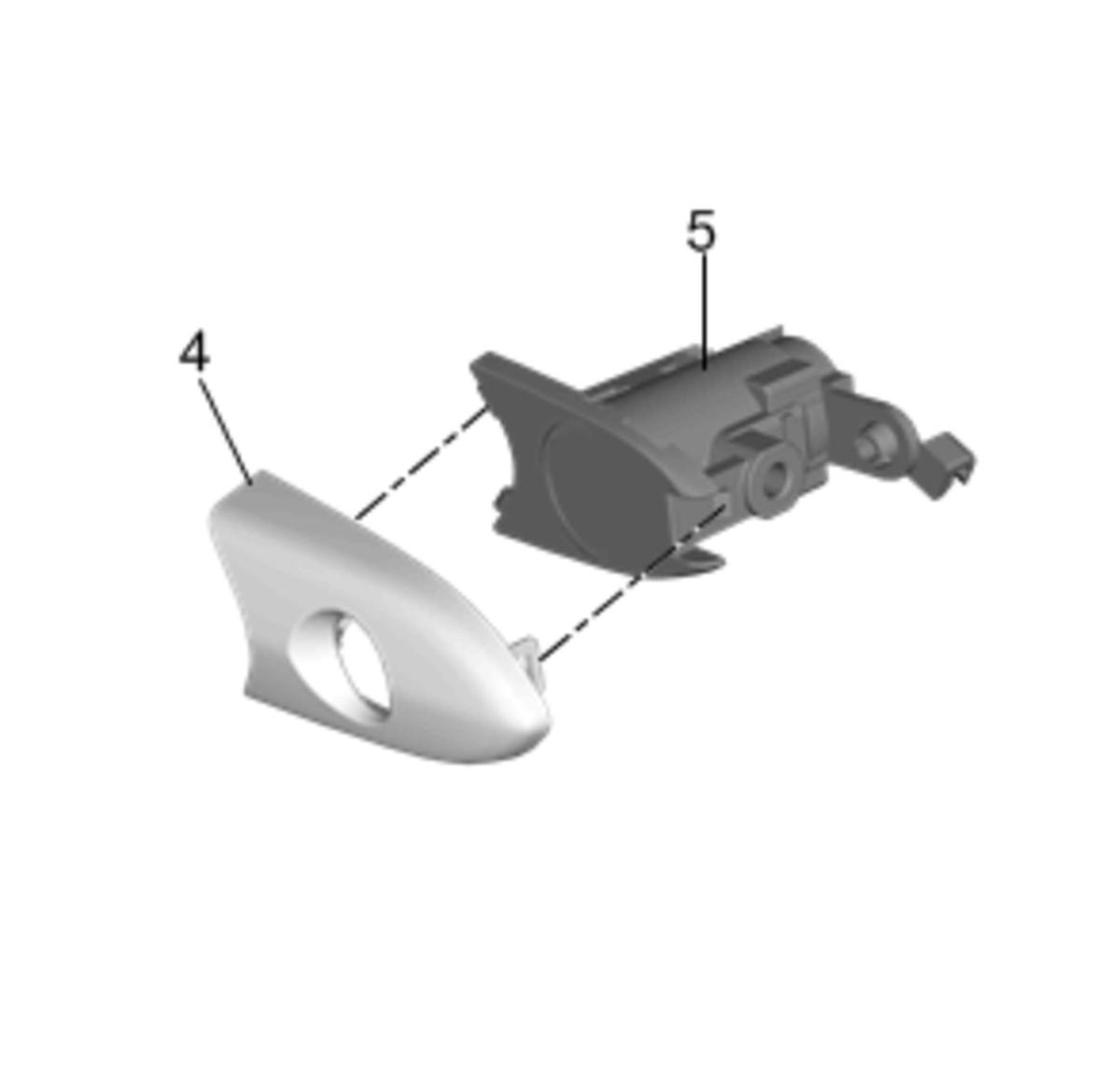

    6. Fig 3: Front Side Door Lock Cylinder And Cover
    GM4025076Courtesy of GENERAL MOTORS COMPANY
  6. Remove the front side door lock cylinder cover (4) from front side door lock cylinder (5).
