Front Side Door Inside Handle Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

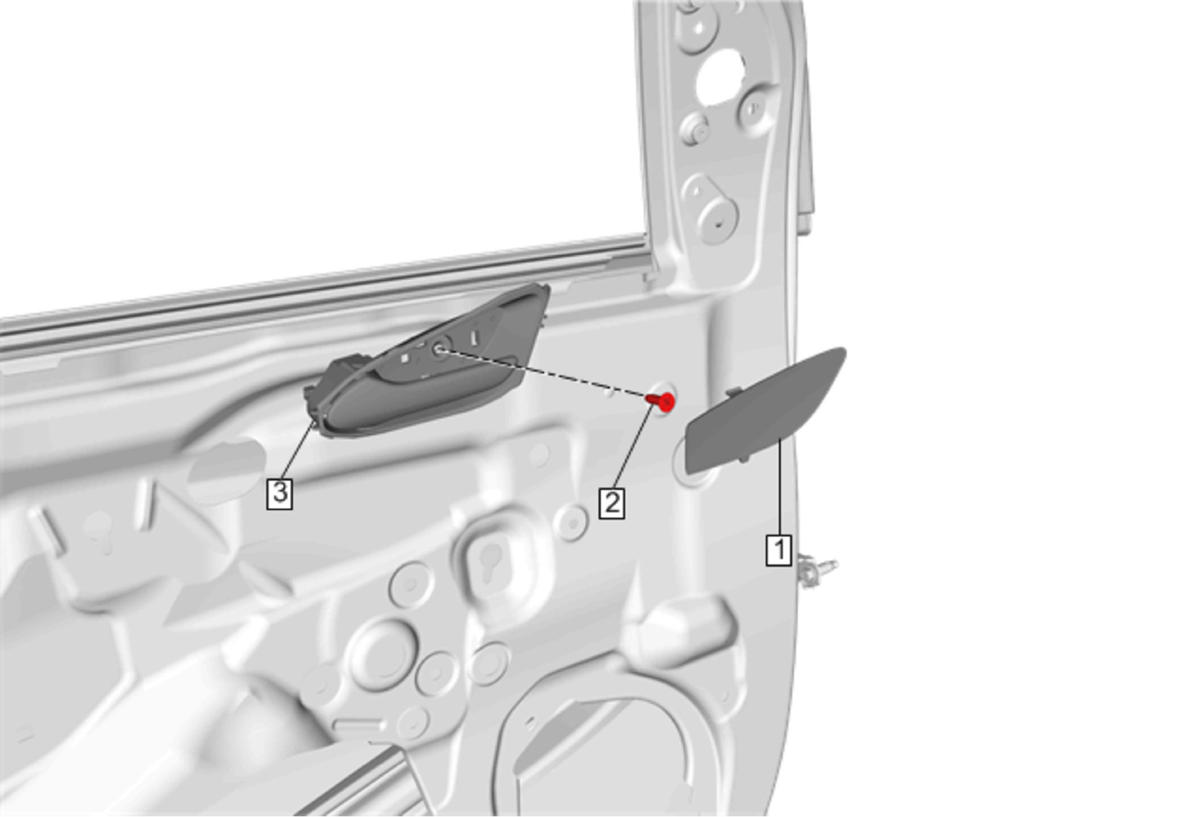

Fig 1: Front Side Door Inside Handle
GM4025109Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the front side door trim. Refer to Front Side Door Trim Replacement .
  2. Remove the water deflector.
  3. Remove the front side door inside handle rod. Refer to Front Side Door Inside Handle Rod Replacement .
1 Front Side Door Inside Handle Screw Cap
2 Front Side Door Inside Handle Screw (Qty: 1)
CAUTION:

Refer to Fastener Caution .


Tighten
1.5 N.m (13 lb in)
3 Front Side Door Inside Handle
NOTE:

Inspect the proper operation before installing the door trim.
