Installation Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

Assemble the air cleaner outlet duct (2) with the New positive crankcase ventilation tube (1) and New positive crankcase ventilation valves (3), (4).

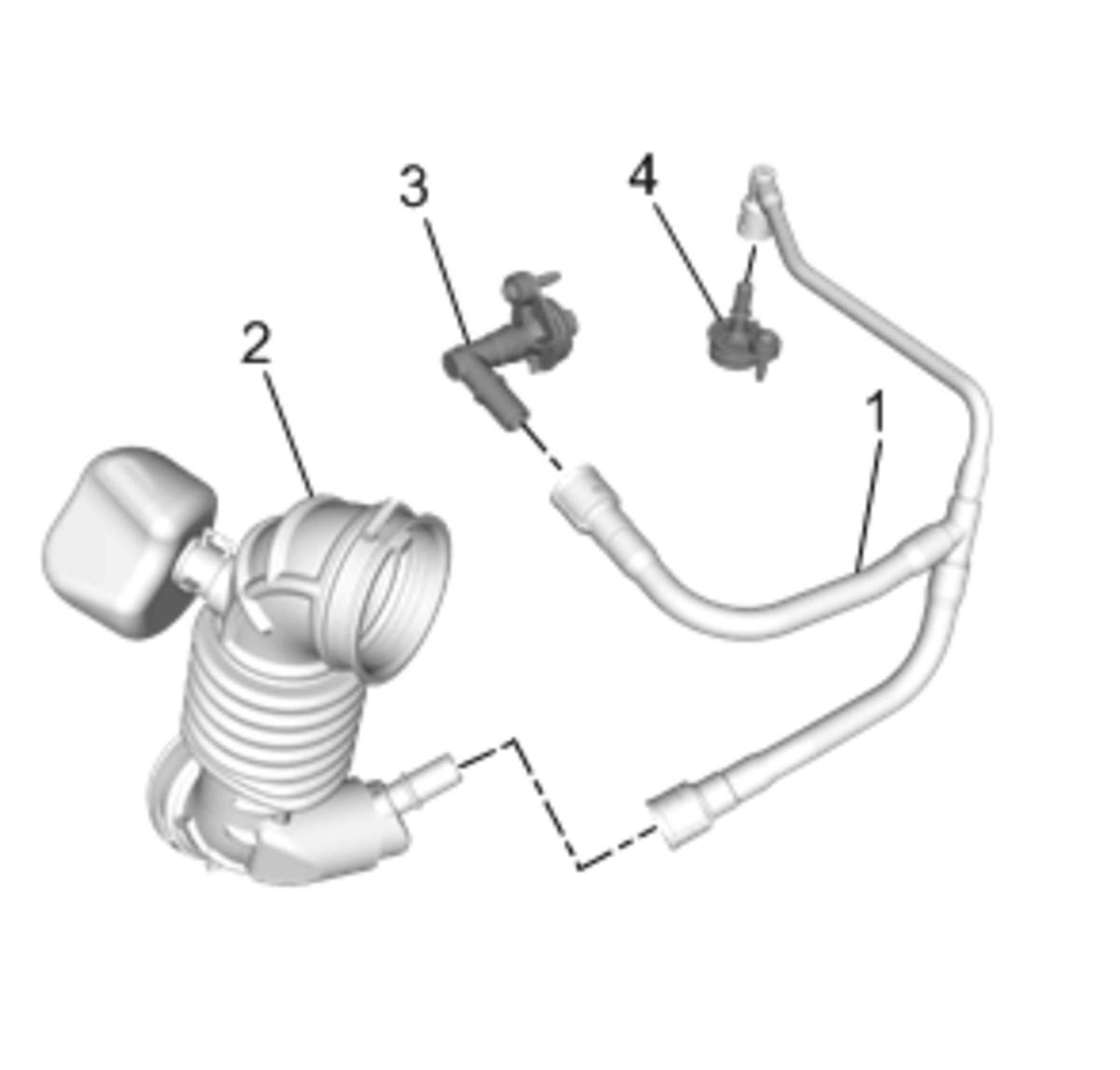

Fig 1: Positive Crankcase Ventilation (PCV) Tube Assembly Components
Courtesy of GENERAL MOTORS COMPANY
Install the air cleaner outlet duct assembly (2) with positive crankcase ventilation tube and valves to the engine.

Fig 2: Positive Crankcase Ventilation (PCV) Tube Assembly Components
Courtesy of GENERAL MOTORS COMPANY
Using EN-50956 tamper proof drive bit tighten bolts (1) to 10 N.m (89 lb in).
Position the air cleaner outlet duct in place and tighten the clamp (1) on the engine.

Fig 3: Air Cleaner Outlet Duct And Clamp
Courtesy of GENERAL MOTORS COMPANY
Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
Install the intake manifold cover. Refer to Intake Manifold Cover Replacement (LV7) .
