Intake Manifold Cover Replacement (LV7)
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

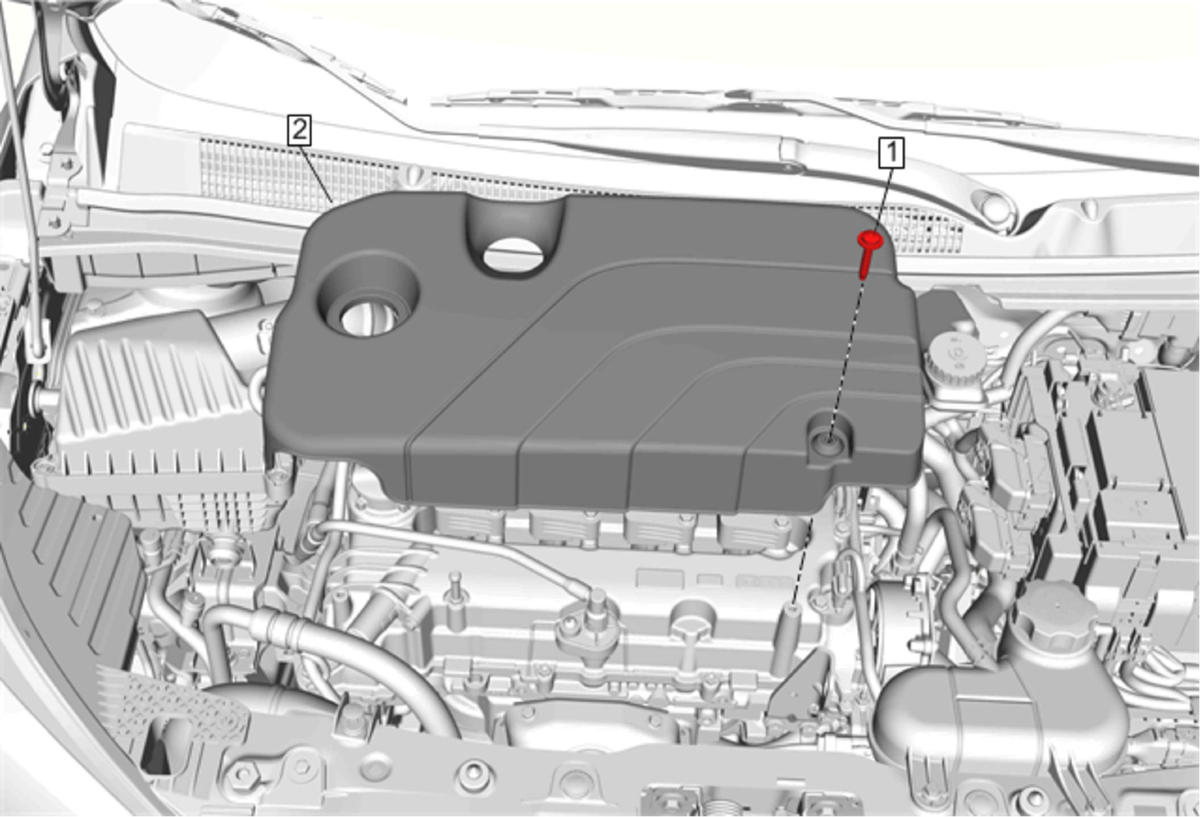

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the oil filler cap. |
|
| 1 | Intake Manifold Cover Bolt (Qty: 1)
CAUTION:
Refer to Fastener Caution
. Procedure Remove the intake manifold cover bolt. Tighten 9 N.m (80 lb in) |
| 2 | Intake Manifold Cover |
