Positive Crankcase Ventilation Valve Replacement (L5Q (Front))

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

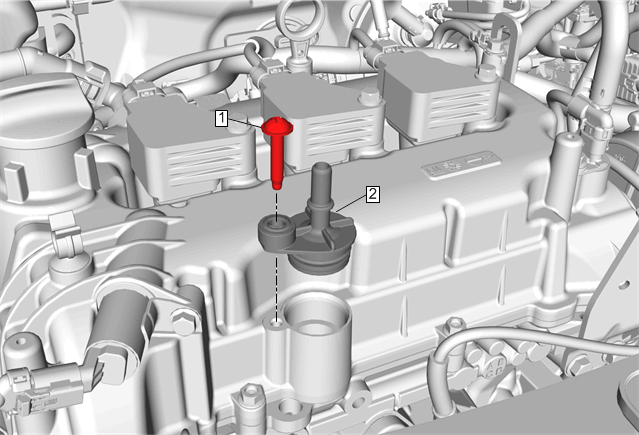

Fig 1: Positive Crankcase Ventilation Valve (L5Q - Front)
GM4234831Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the positive crankcase ventilation tube (front). Refer to Positive Crankcase Ventilation Tube Replacement (L5Q (Front)) Positive Crankcase Ventilation Tube Replacement (L5Q (Rear)) .
1 Positive Crankcase Ventilation Valve Bolt
CAUTION: Refer to Fastener Caution .

Procedure
Using a suitable tool, cut a slot in the tamper-resistant positive crankcase ventilation (PCV) bolt heads and remove with a flat-bladed tool. Discard bolts.
Tighten
10 N.m (89 lb in)
Special Tools
EN-50956  Tamper Proof Drive Bit
For equivalent regional tools, refer to Special Tools  .
2 Positive Crankcase Ventilation Valve
