Positive Crankcase Ventilation Tube Replacement (L5Q (Front))

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

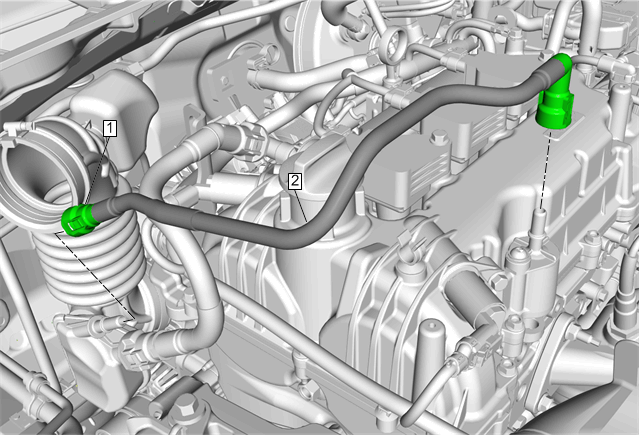

Fig 1: Positive Crankcase Ventilation Tube (L5Q - Front)
GM4234816Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
1 Positive Crankcase Ventilation Tube Connector
Procedure
Remove the positive crankcase ventilation tube connector.
2 Positive Crankcase Ventilation Tube
