Removal Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Relieve the fuel system pressure. Refer to Fuel Pressure Relief .
  3. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
  4. Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement (LV7) .
  5. Disconnect any electrical connectors as needed.
  6. Remove the manifold absolute pressure sensor. Refer to Manifold Absolute Pressure Sensor Replacement (LV7) .
  7. Disconnect the fuel feed line quick connect fitting from the fuel rail.
  8. Remove the intake manifold bolts (1).

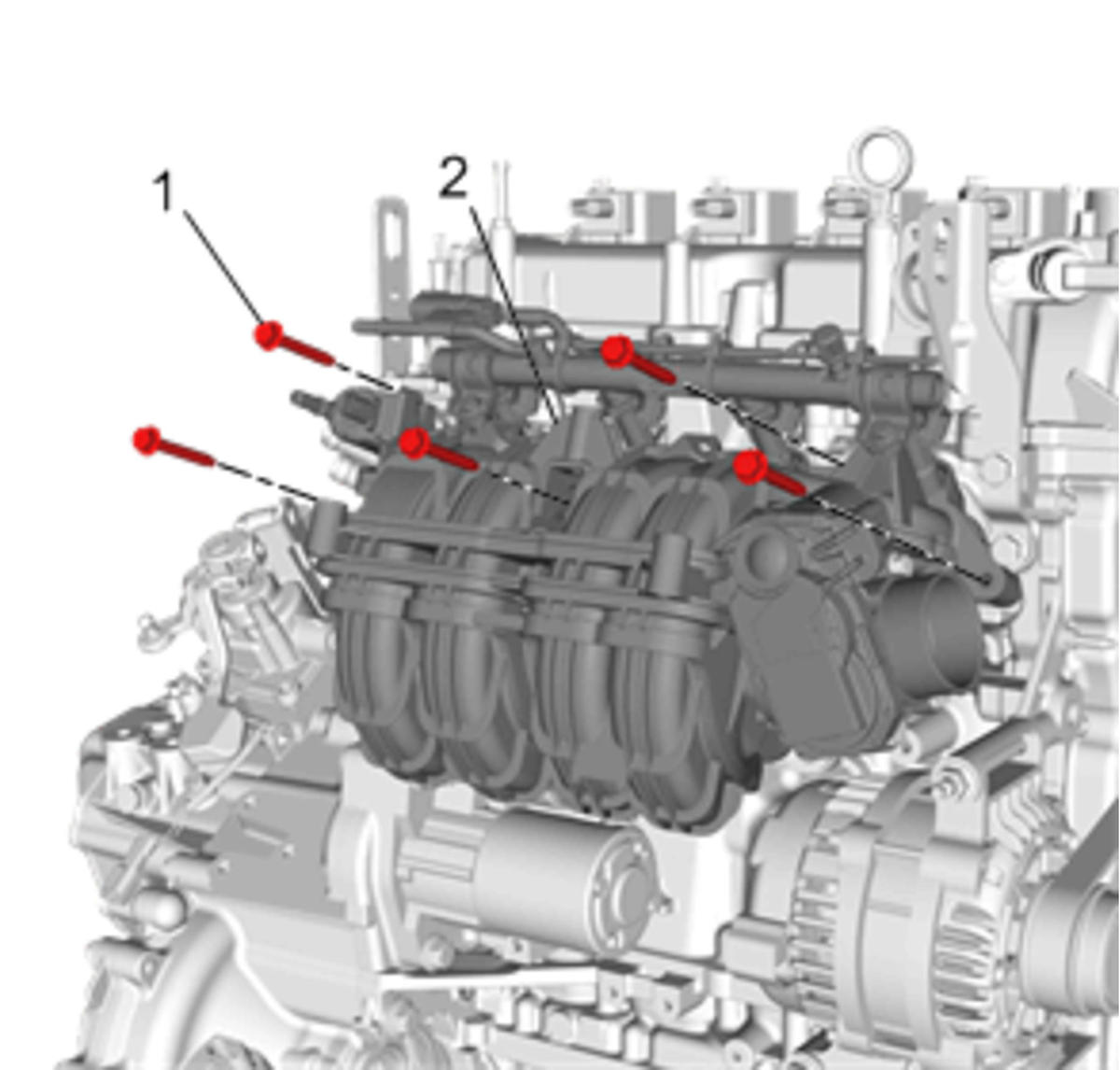

    Fig 1: Intake Manifold And Bolts
    GM4230647Courtesy of GENERAL MOTORS COMPANY
    NOTE: Bolt retainers may keep the bolts in position on the assembly.
  9. Remove the camshaft cover. Refer to Camshaft Cover Removal (LV7) .
  10. Remove the intake manifold (2) with throttle body assembly (5), evaporative emission canister purge solenoid valve (1) and fuel injector fuel rail assembly (3) from the engine.

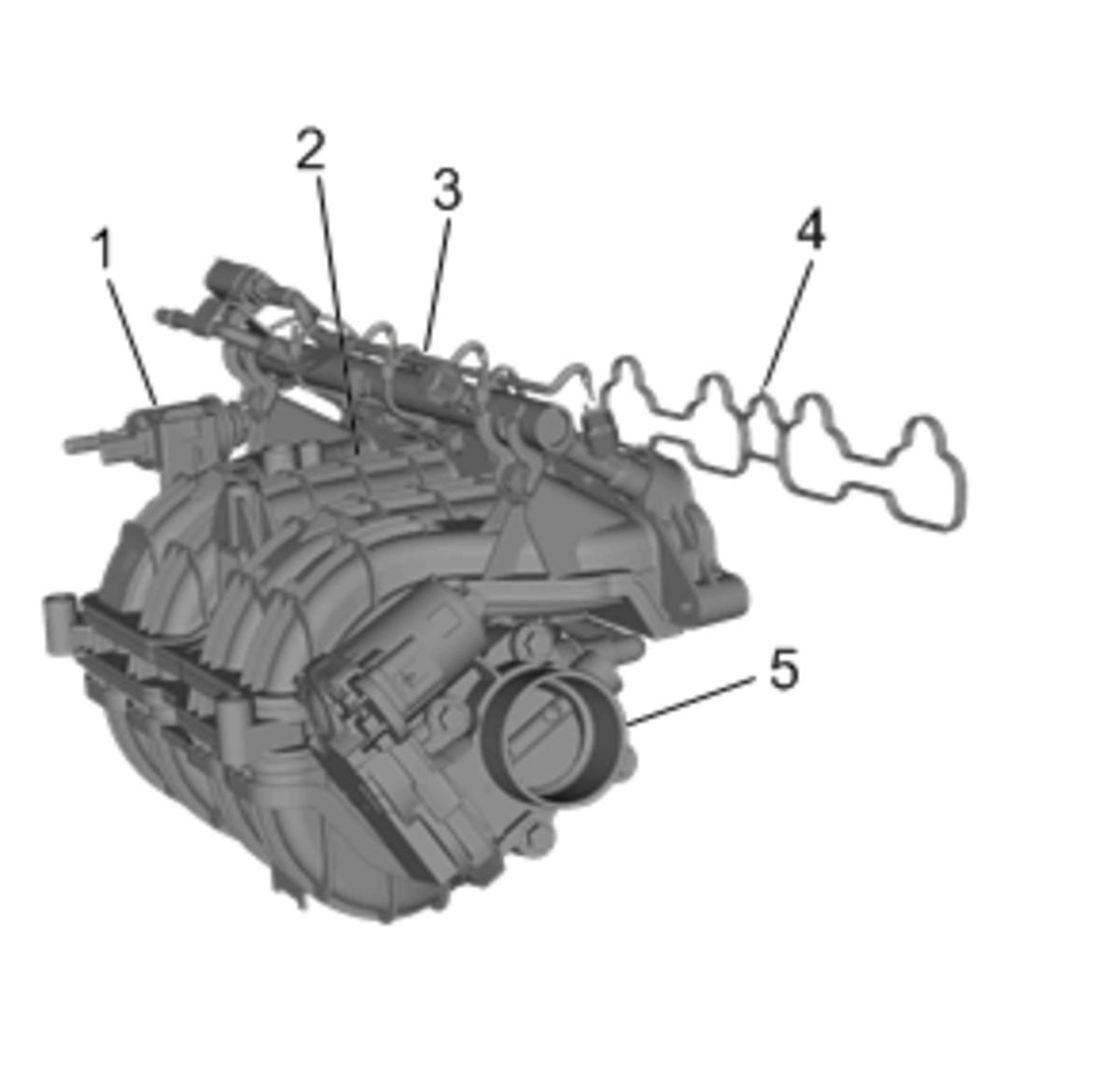

    Fig 2: Intake Manifold Assembly And Gasket
    GM4230648Courtesy of GENERAL MOTORS COMPANY
  11. Discard the intake manifold gasket (4).
  12. Remove the throttle body assembly bolts (1) and remove the throttle body assembly (2) from the intake manifold.

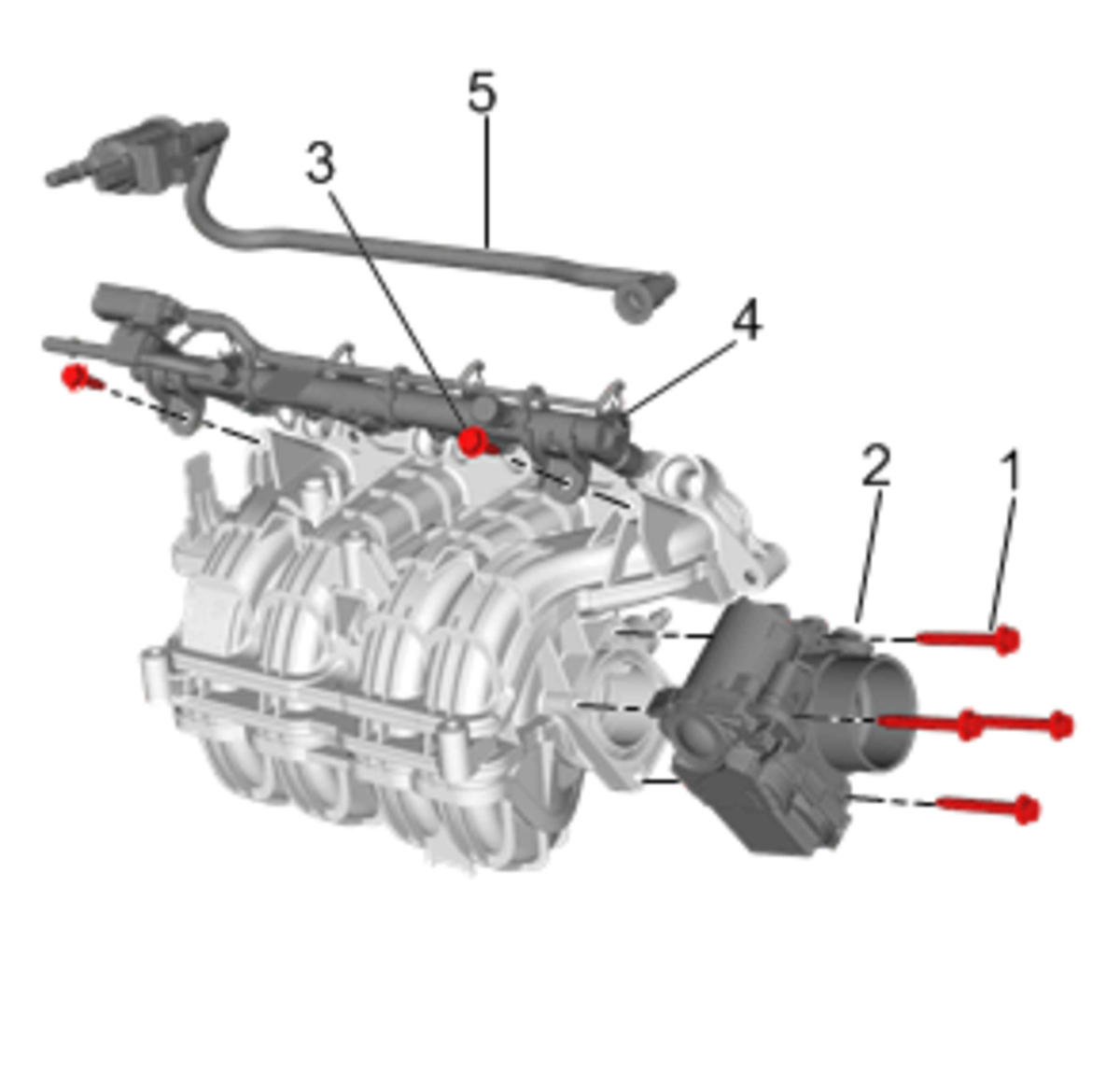

    Fig 3: Intake Manifold Assembly Components
    GM4230649Courtesy of GENERAL MOTORS COMPANY
  13. Remove the fuel injector fuel rail assembly bolts (3) and remove the fuel injector fuel rail assembly from the intake manifold.
  14. Remove the evaporative emission canister purge tube (5).
  15. Remove the intake manifold.
  16. Transfer parts as necessary.
