Manifold Absolute Pressure Sensor Replacement (LV7)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

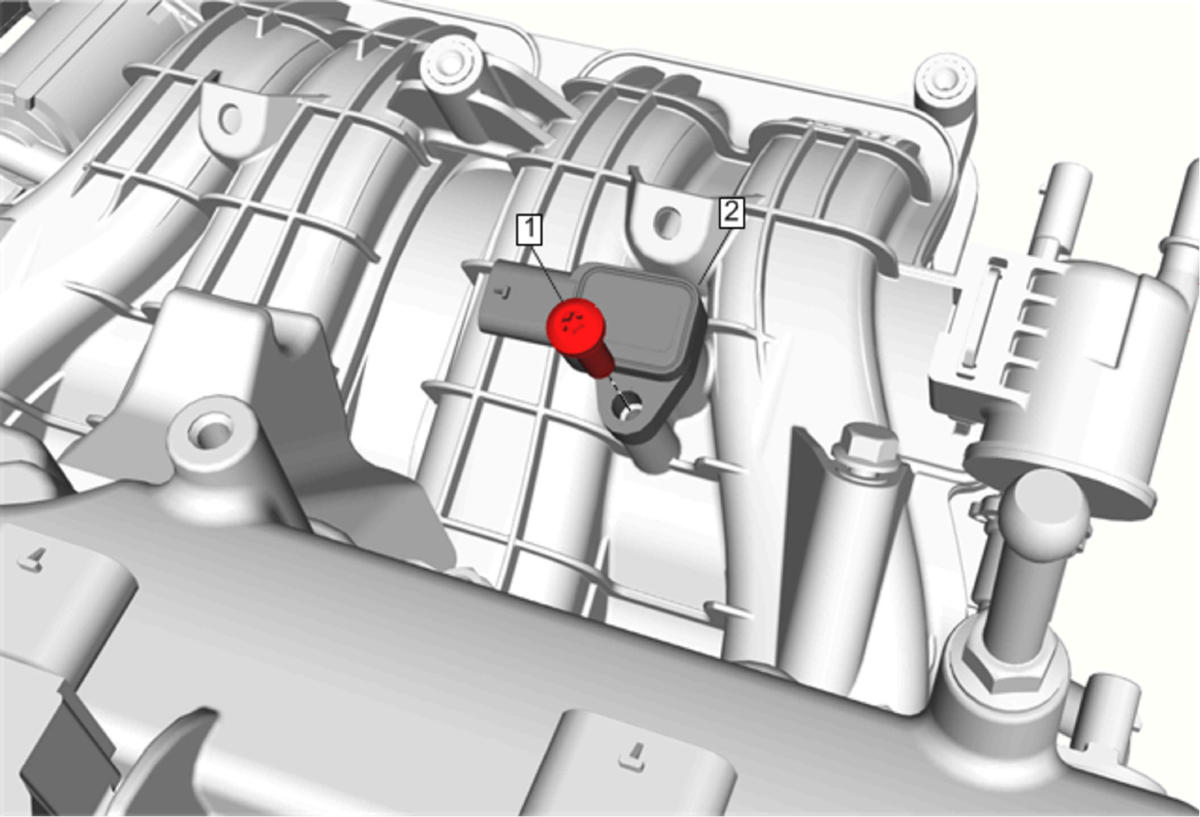

Fig 1: Manifold Absolute Pressure Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection Remove the fuel injection fuel rail assembly. Refer to Fuel Injection Fuel Rail Assembly Replacement (LV7) . Disconnect the manifold absolute pressure sensor connector.
1	Manifold Absolute Pressure Sensor Bolt CAUTION: Refer to Fastener Caution . Procedure Remove the manifold absolute pressure sensor bolt. Tighten 5 N.m (44 lb in)
2	Manifold Absolute Pressure Sensor

Callout

Component Name

Preliminary Procedures

Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection
Remove the fuel injection fuel rail assembly. Refer to Fuel Injection Fuel Rail Assembly Replacement (LV7) .
Disconnect the manifold absolute pressure sensor connector.

Manifold Absolute Pressure Sensor Bolt

CAUTION: Refer to Fastener Caution .

Procedure
Remove the manifold absolute pressure sensor bolt.
Tighten
5 N.m (44 lb in)

Manifold Absolute Pressure Sensor
