Ignition Lock Cylinder Theft Deterrent Sensor Cover Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

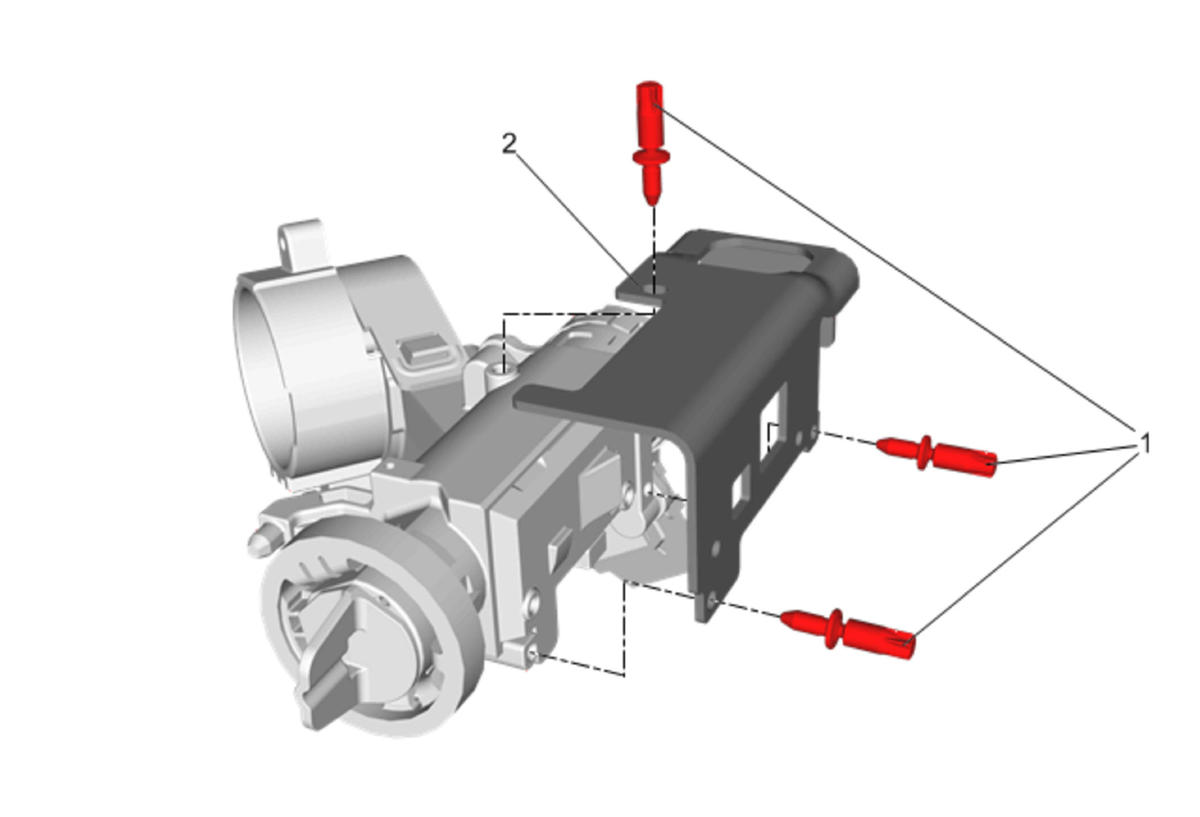

Fig 1: Ignition Lock Cylinder Theft Deterrent Sensor Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the ignition and start switch housing. Refer to Ignition and Start Switch Housing Replacement .
1	Ignition Lock Cylinder Theft Deterrent Sensor Cover Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Procedure Use a vise plier to remove the 3 bolts. Install the 3 NEW bolts and tighten until head tears off.
2	Ignition Lock Cylinder Theft Deterrent Sensor Cover Procedure Remove the ignition lock cylinder theft deterrent sensor cover.

Callout

Component Name

Preliminary Procedure
Remove the ignition and start switch housing. Refer to Ignition and Start Switch Housing Replacement .

Ignition Lock Cylinder Theft Deterrent Sensor Cover Bolt (Qty: 3)

CAUTION: Refer to Fastener Caution .

Procedure

Use a vise plier to remove the 3 bolts.
Install the 3 NEW bolts and tighten until head tears off.

Ignition Lock Cylinder Theft Deterrent Sensor Cover
Procedure
Remove the ignition lock cylinder theft deterrent sensor cover.
