Torque Converter Fluid Seal Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

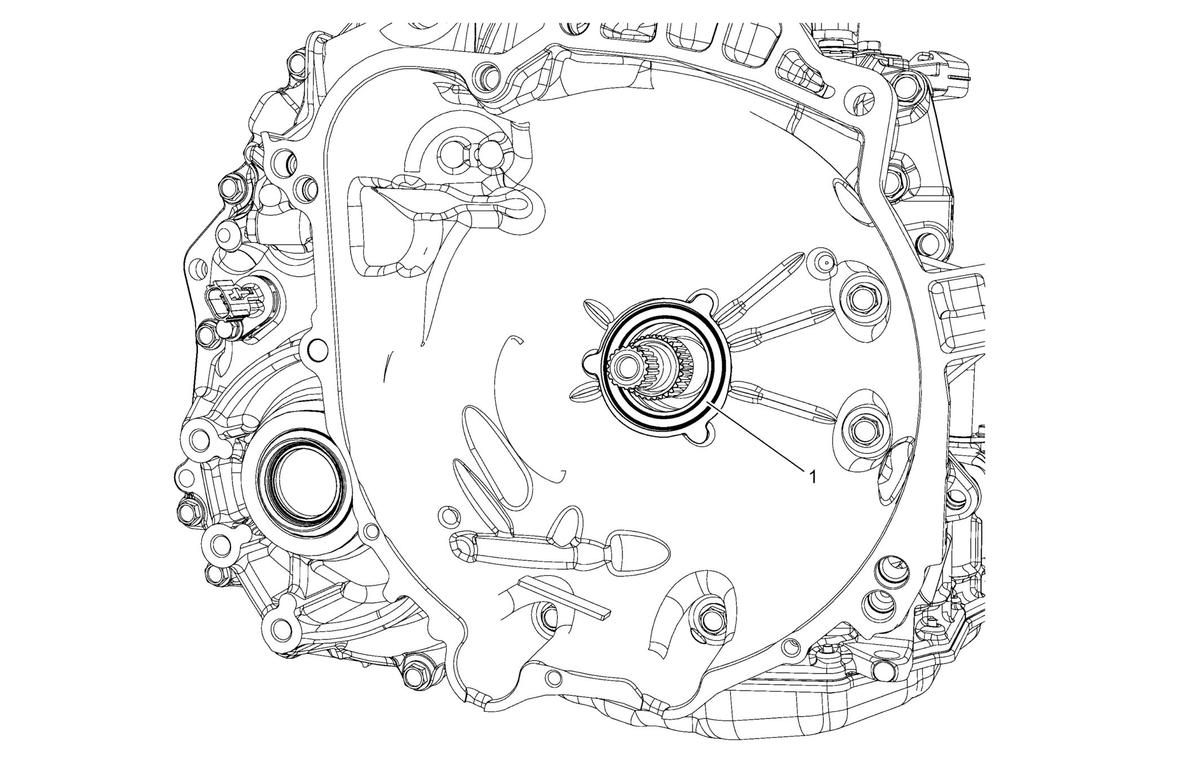

Fig 1: Torque Converter Fluid Seal

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the torque converter. Refer to Torque Converter Replacement .
1	Torque Converter Fluid Seal NOTE: Do not reuse the seal. Specification Dimension between surface of housing and seal is 0.8 - 1.8 mm (0.031 - 0.071 in). Special Tools DT-586 Seal Remover DT-7004 Slide Hammer J-44765 Seal Installer For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Preliminary Procedure
Remove the torque converter. Refer to Torque Converter Replacement .

Torque Converter Fluid Seal

NOTE: Do not reuse the seal.

Specification
Dimension between surface of housing and seal is 0.8 - 1.8 mm (0.031 - 0.071 in).

Special Tools

DT-586 Seal Remover
DT-7004 Slide Hammer
J-44765 Seal Installer

For equivalent regional tools, refer to Special Tools .
