Torque Converter Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

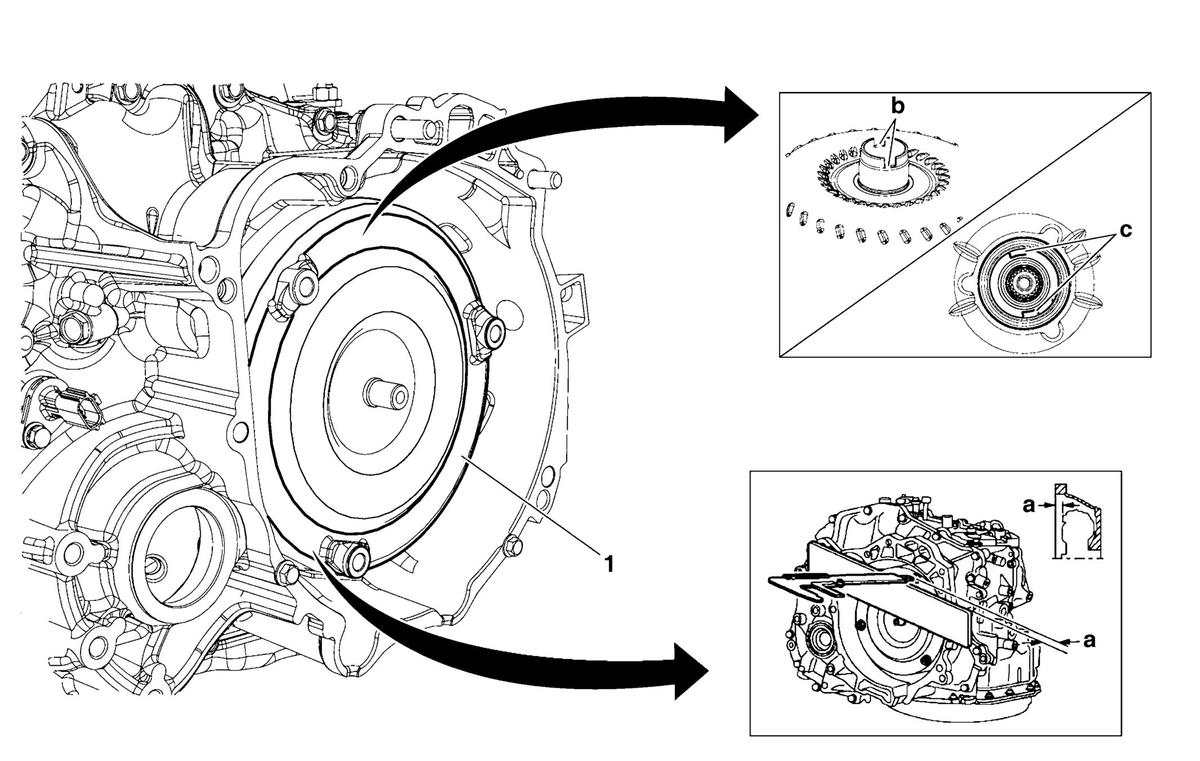

Fig 1: Torque Converter

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the transmission. Refer to Transmission Replacement . Place a drain pan under the vehicle.
1	Torque Converter Procedure Mate the groove of torque converter (b) to the drive sprocket hole (c). Install the torque converter firmly by rotating. Measure the dimension from the converter housing to the torque converter and confirm it is in indicated dimension. Measure more than 2 portions and use the average value. The dimension is (a) 11.35 mm (0.45 in). NOTE: Be careful not to scratch bush located inside of torque convertor sleeve when Torque convertor is removed or installed.

Callout

Component Name

Preliminary Procedures

Remove the transmission. Refer to Transmission Replacement .
Place a drain pan under the vehicle.

Torque Converter

Procedure

Mate the groove of torque converter (b) to the drive sprocket hole (c).
Install the torque converter firmly by rotating.
Measure the dimension from the converter housing to the torque converter and confirm it is in indicated dimension. Measure more than 2 portions and use the average value. The dimension is (a) 11.35 mm (0.45 in).

NOTE: Be careful not to scratch bush located inside of torque convertor sleeve when Torque convertor is removed or installed.
