Installation Procedure
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
- Verify that the transmission manual shift lever is in the park position.
- Install the transmission range selector lever cable to the vehicle.
- Install the transmission range selector lever cable grommet (2).

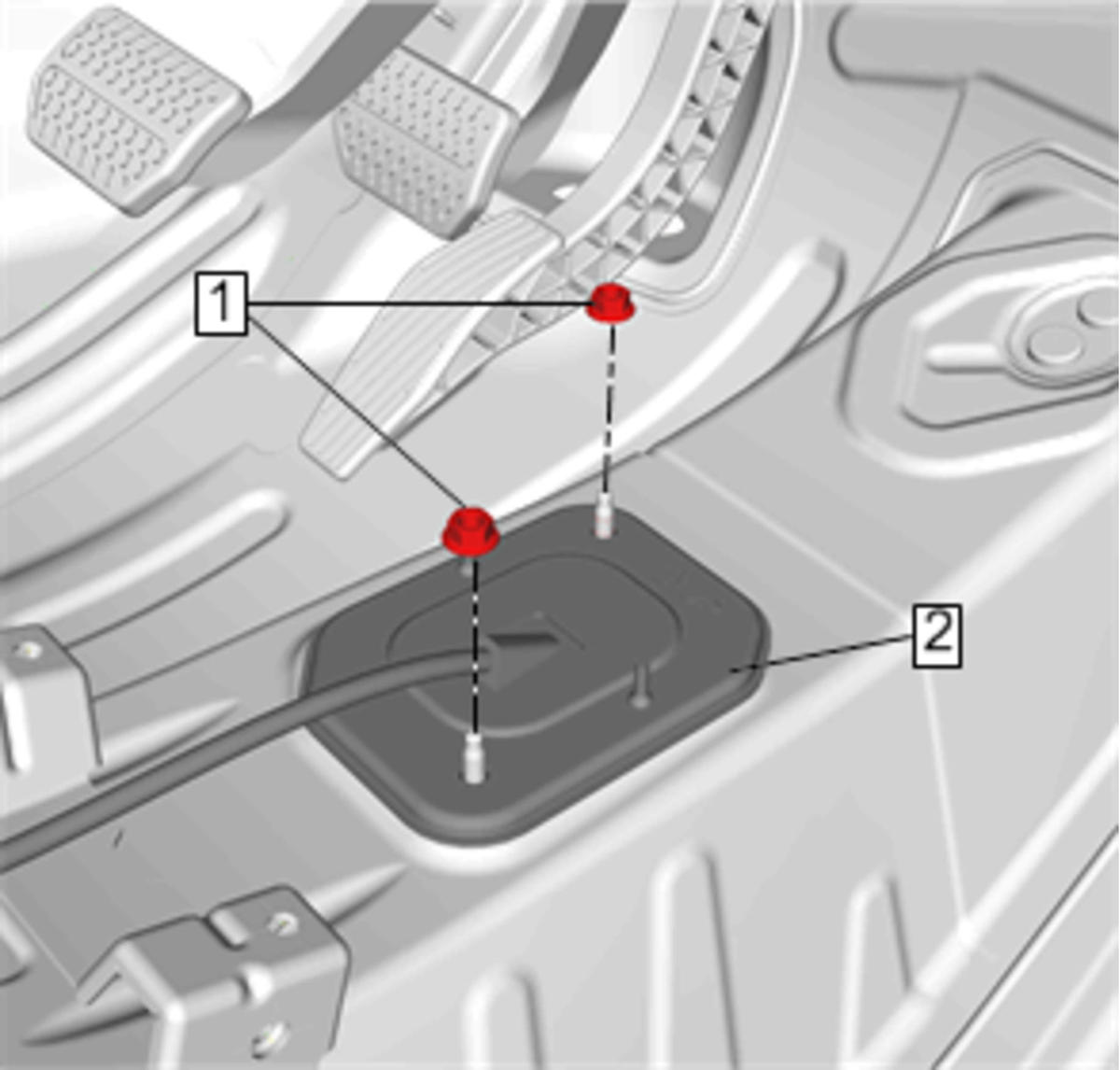

- Install the transmission range selector lever cable grommet nuts (1) and tighten to 6 N.m (53 lb in).CAUTION: Refer to Fastener Caution .

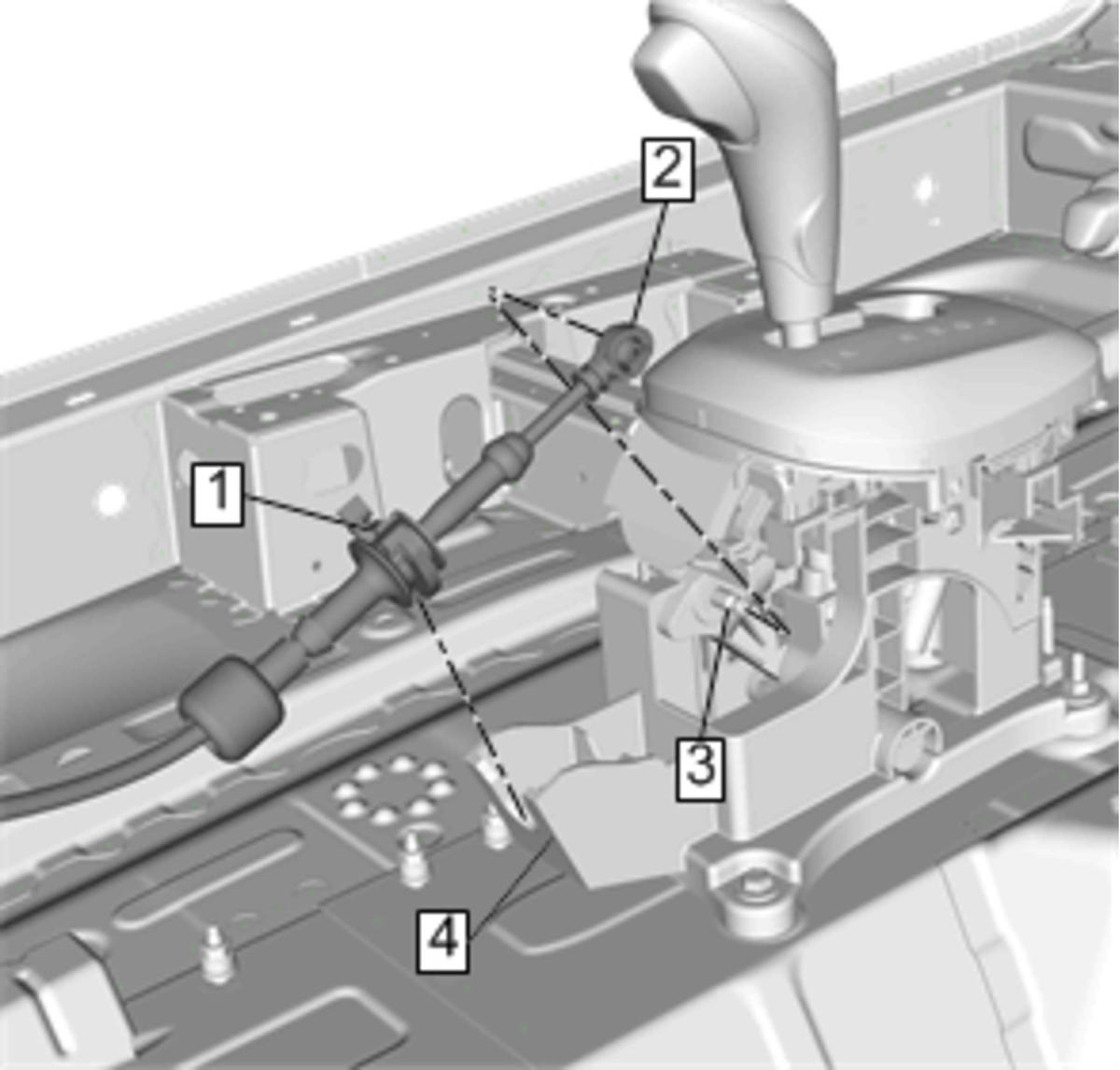

- Install the transmission range selector lever cable to the transmission control lever base. Insure the cable retainer (1) is fully secured to the transmission control lever base (4).
- Connect the transmission range selector lever cable terminal (2) to the shift lever pin (3).
- Install the front floor console. Refer to Front Floor Console Replacement .
- Install the transmission range selector lever cable bracket (2) to the underbody.

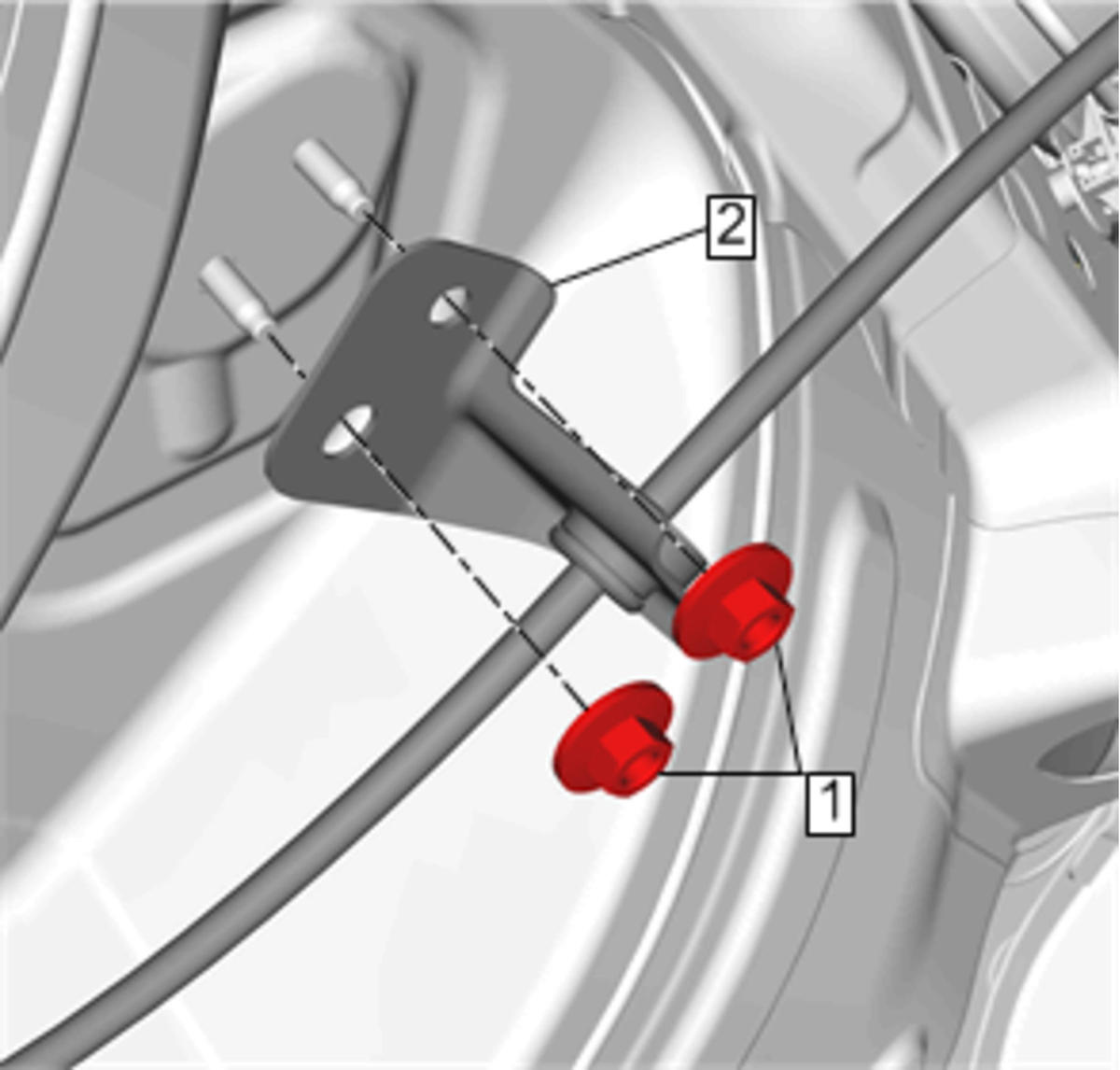

- Install the transmission range selector lever cable clip nuts (1) and tighten to 6 N.m (53 lb in).
- Install the transmission range selector lever cable (2) to the cable bracket.
- Connect the transmission range selector lever cable terminal (1) to the transmission range selector lever.
- Adjust the automatic transmission range selector lever cable. Refer to Range Selector Lever Cable Adjustment .
- Install the ECM to the battery tray. Refer to Engine Control Module Replacement .
- Install the radiator surge tank. Refer to Radiator Surge Tank Replacement .
