Installation Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the transmission range selector cable bracket (2).

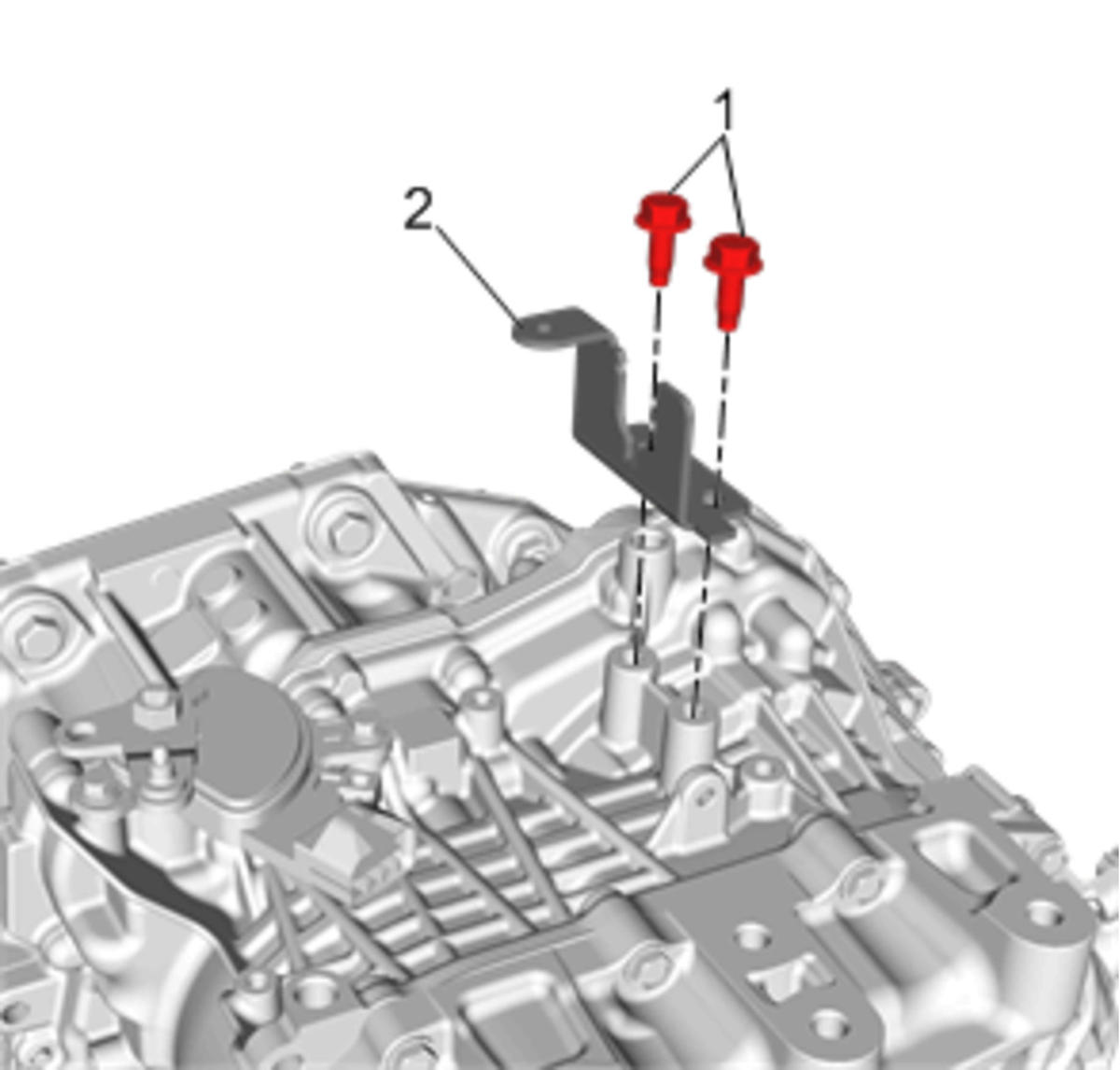

    Fig 1: Transmission Range Selector Cable Bracket Bolts
    GM4112716Courtesy of GENERAL MOTORS COMPANY
  2. Install the transmission range selector lever cable bracket bolts (1) and tighten to 22 N.m (16 lb ft)
    CAUTION: Refer to Fastener Caution .
  3. Connect the range selector lever cable (2) to the range selector lever cable bracket.
    Fig 2: Transmission Range Selector Lever Cable Terminal
    GM4112708Courtesy of GENERAL MOTORS COMPANY
  4. Connect the transmission range selector lever cable terminal (1) to the range selector lever.
  5. Check the range selector lever cable adjustment. Refer to Range Selector Lever Cable Adjustment .
  6. Install the battery positive cable retainer (1) to the range selector lever cable bracket.

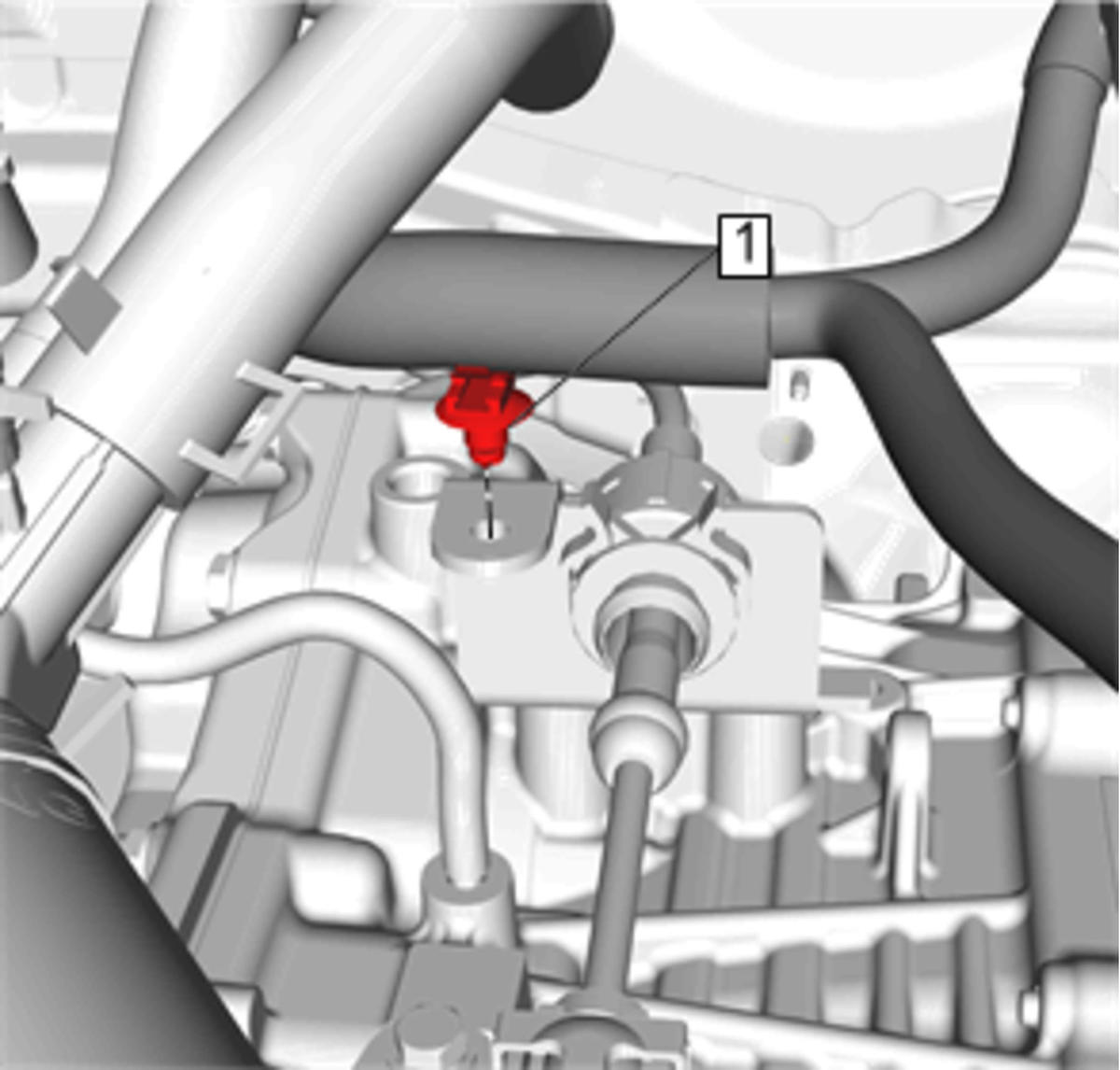

    Fig 3: Battery Positive Cable Retainer
    GM4204275Courtesy of GENERAL MOTORS COMPANY
  7. Install the ECM to the battery tray. Refer to Engine Control Module Replacement .
  8. Install the radiator surge tank. Refer to Radiator Surge Tank Replacement .
