Removal Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the automatic transmission range select lever. Refer to Automatic Transmission Range Selector Lever Replacement .
  2. Disconnect the manual shift shaft position switch electrical connector (1) from the manual shift shaft position switch (2).

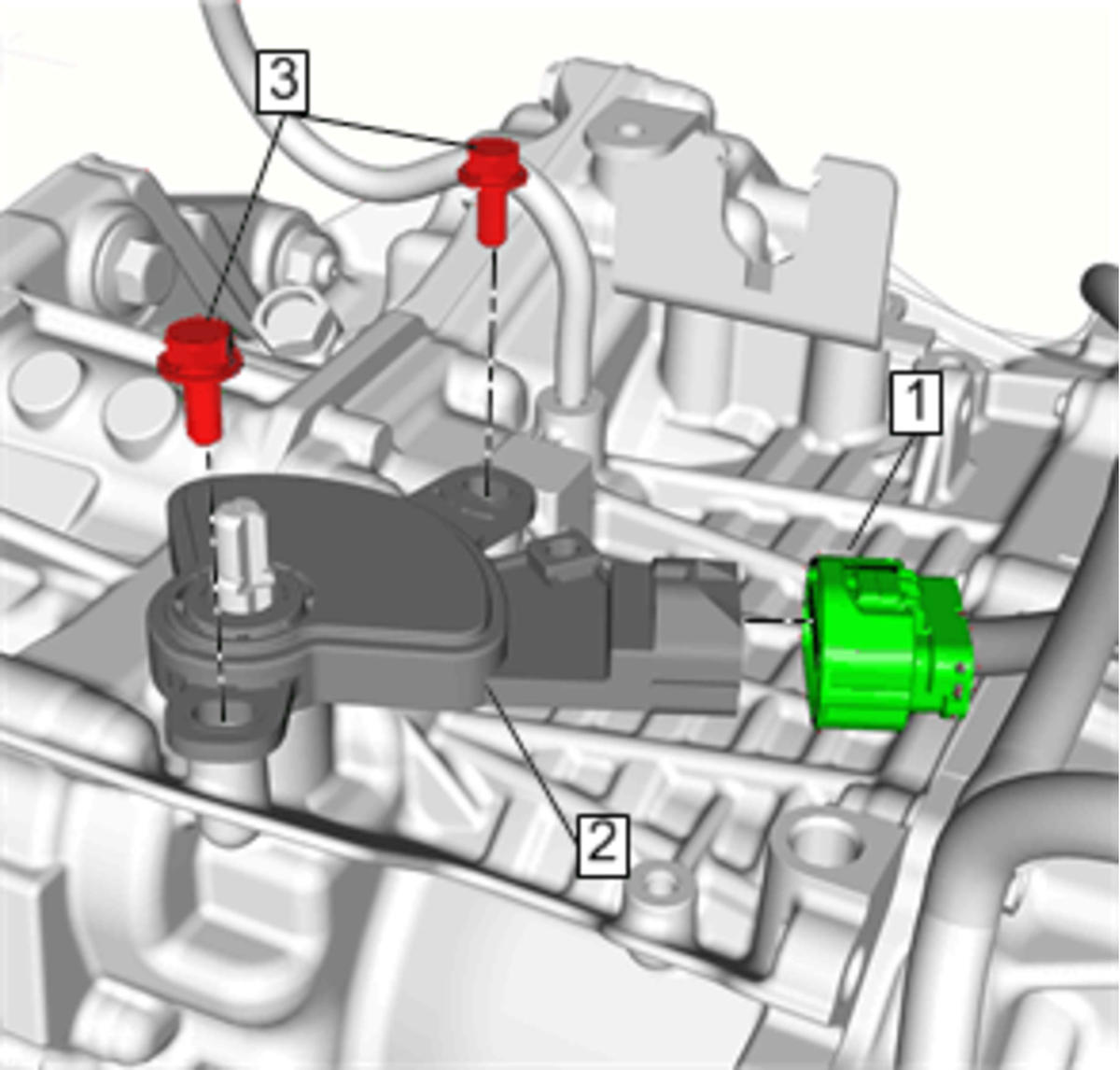

    Fig 1: Manual Shift Shaft Position Switch Electrical Connector
    GM4112701Courtesy of GENERAL MOTORS COMPANY
  3. Remove the manual shift shaft position switch bolts (3).
  4. Remove the manual shift shaft position switch (2) from the transmission.
