Automatic Transmission Range Selector Lever Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

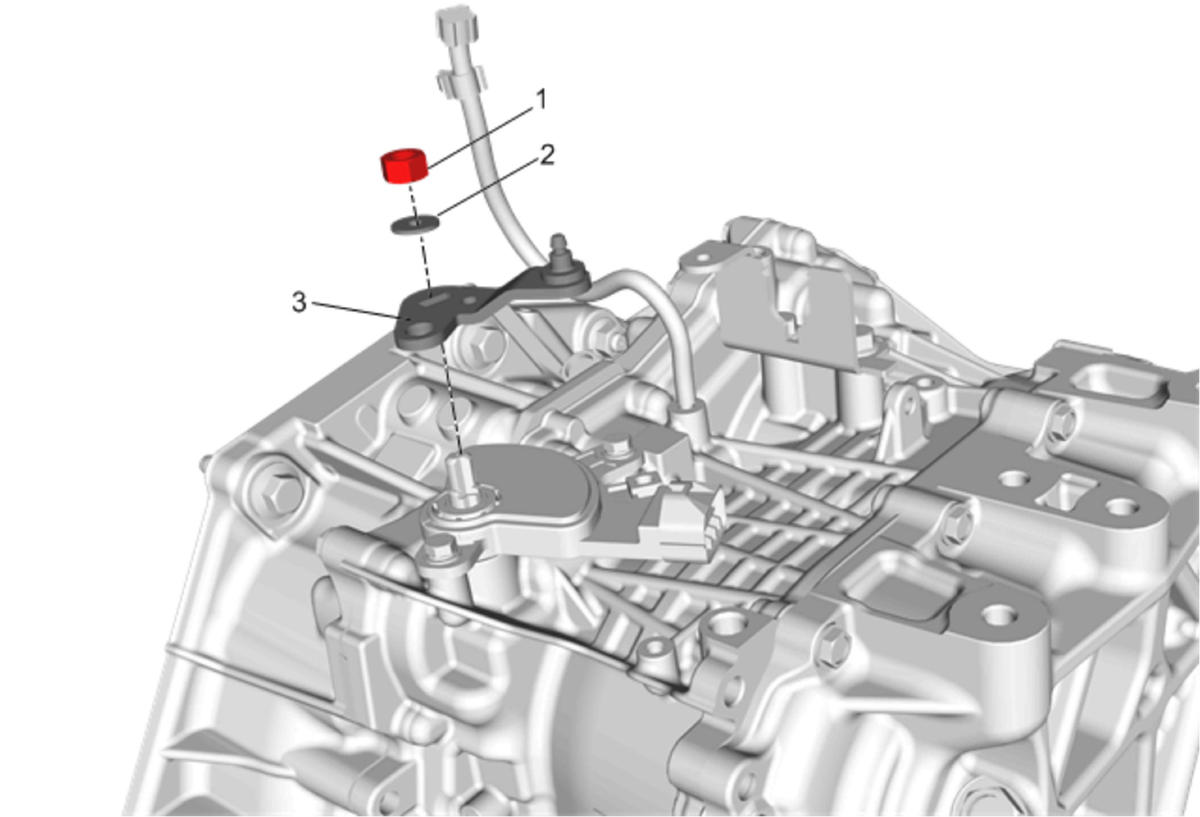

Fig 1: Automatic Transmission Range Selector Lever

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Ensure that the transmission range selector lever is in the park (P) position. Disconnect the transmission range select lever cable from the transmission range selector lever and cable bracket. Refer to Range Selector Lever Cable Replacement .
1	Automatic Transmission Range Selector Lever Fastener CAUTION: Refer to Fastener Caution . Tighten 17 N.m (13 lb ft)
2	Automatic Transmission Range Selector Lever Washer NOTE: Do not reuse the range selector lever washer.
3	Automatic Transmission Range Selector Lever Procedure After installing the range selector lever cable, Check the range selector cable adjustment. Refer to Range Selector Lever Cable Adjustment .
