Installation Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

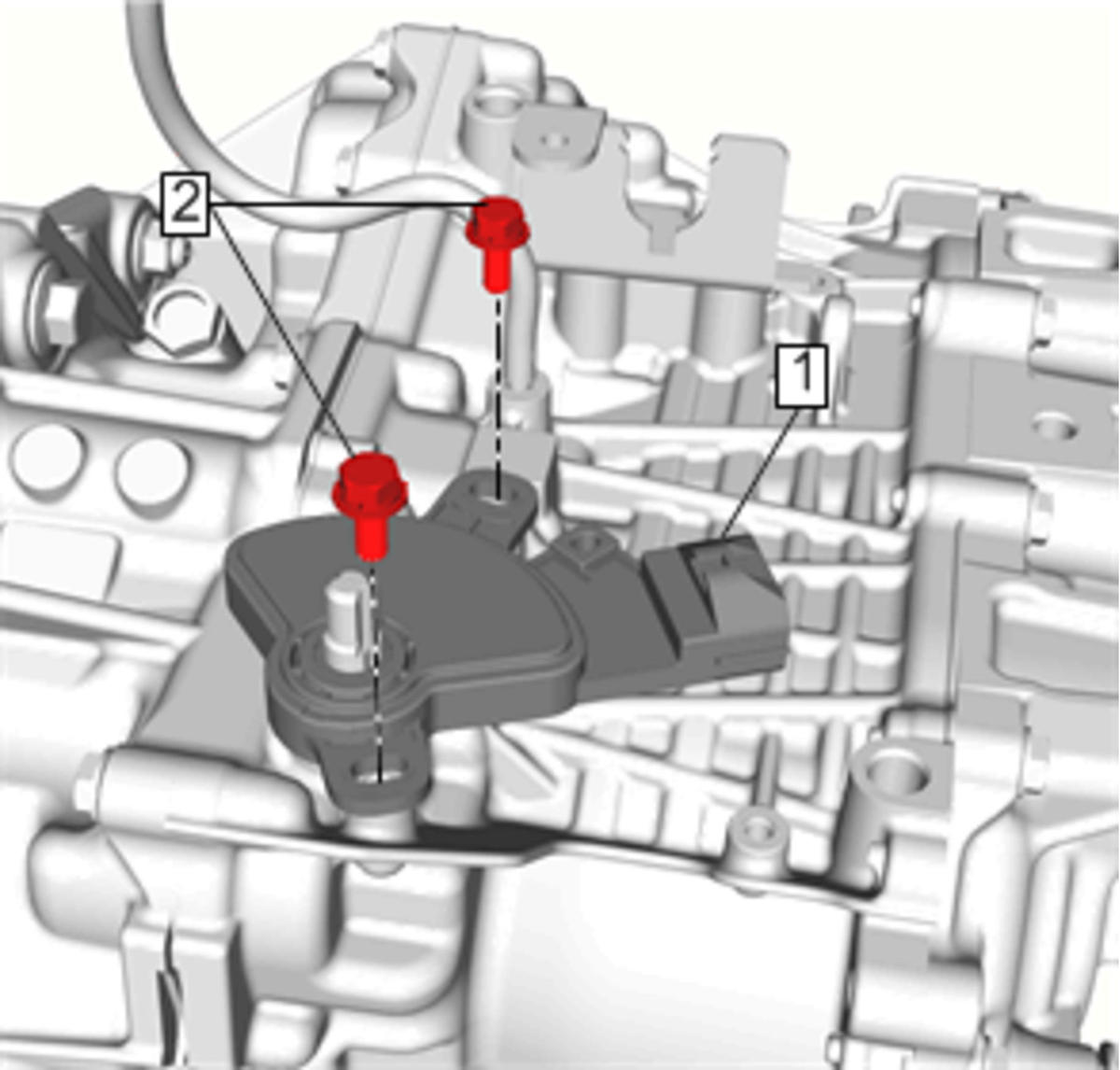

Install the NEW manual shift shaft position switch (1) to the transmission and temporarily tighten the manual shift shaft position switch bolts (2).

Fig 1: Manual Shift Shaft Position Switch
Courtesy of GENERAL MOTORS COMPANY

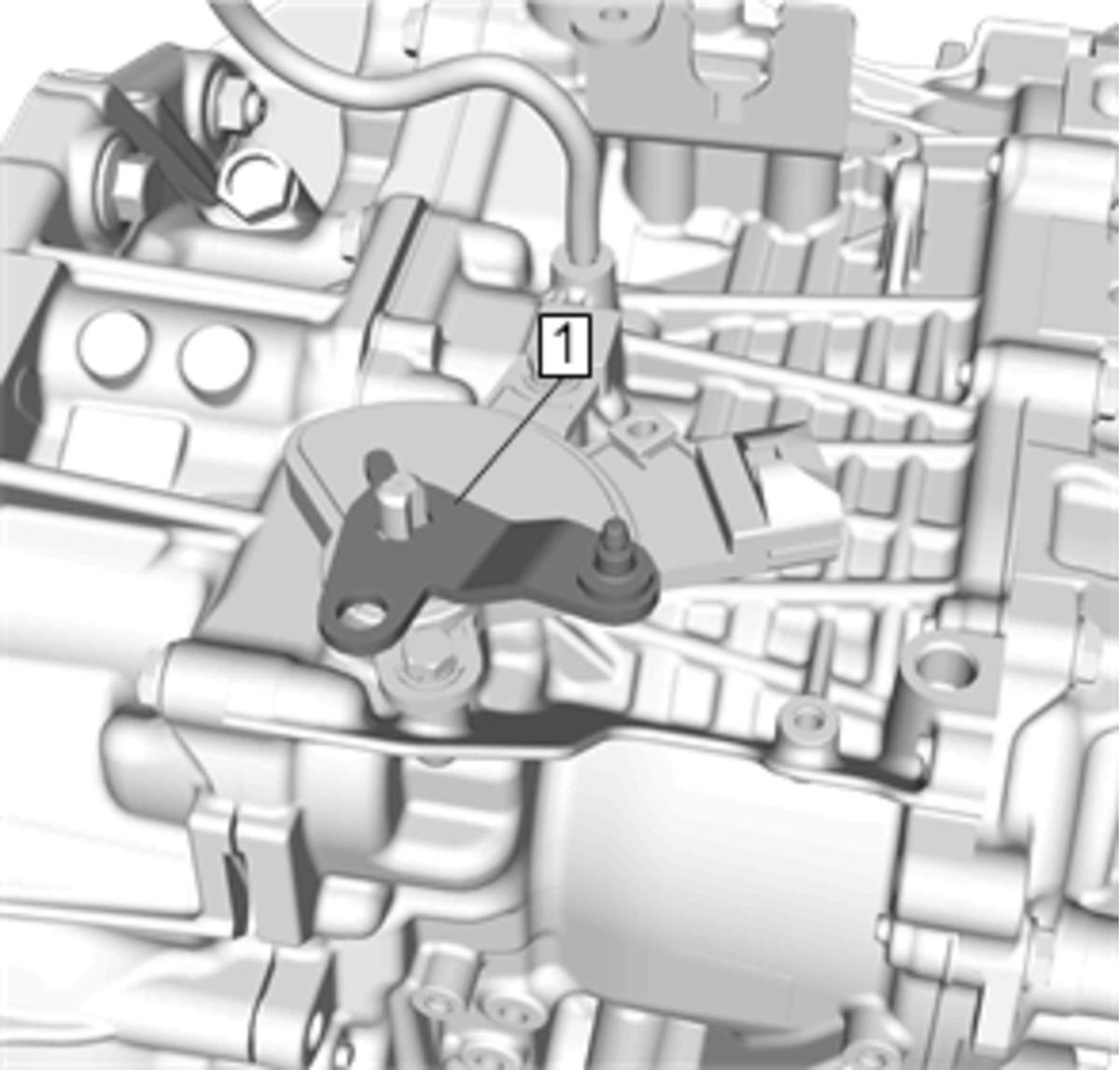

Install the selector lever (1) to the manual shaft.

Fig 2: Selector Lever
Courtesy of GENERAL MOTORS COMPANY
Move the selector lever to neutral (N) position.
Remove the selector lever (1) from the manual shaft.
Set DT-51175 range switch alignment checker to the manual shift shaft position switch and adjust neutral (N) position of manual shift shaft position switch.

Fig 3: Range Switch Alignment Checker
Courtesy of GENERAL MOTORS COMPANY
Install the manual shift shaft position switch bolts (1) and tighten to 6 N.m (53 lb in)

Fig 4: PNP Switch Bolts
Courtesy of GENERAL MOTORS COMPANY

CAUTION: Refer to Fastener Caution .
Remove DT-51175 range switch alignment checker from the manual shift shaft position switch.
Connect the manual shift shaft position switch electrical connector (1) to the manual shift shaft position switch (2).

Fig 5: Manual Shift Shaft Position Switch Electrical Connector
Courtesy of GENERAL MOTORS COMPANY
Install the automatic transmission range selector lever. Refer to Automatic Transmission Range Selector Lever Replacement .
Verify the engine only starts in Park or Neutral. If the engine starts in any other position, adjust the switch.
