Input Shaft Seal Replacement
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the torque converter. Refer to Torque Converter Replacement . |
|

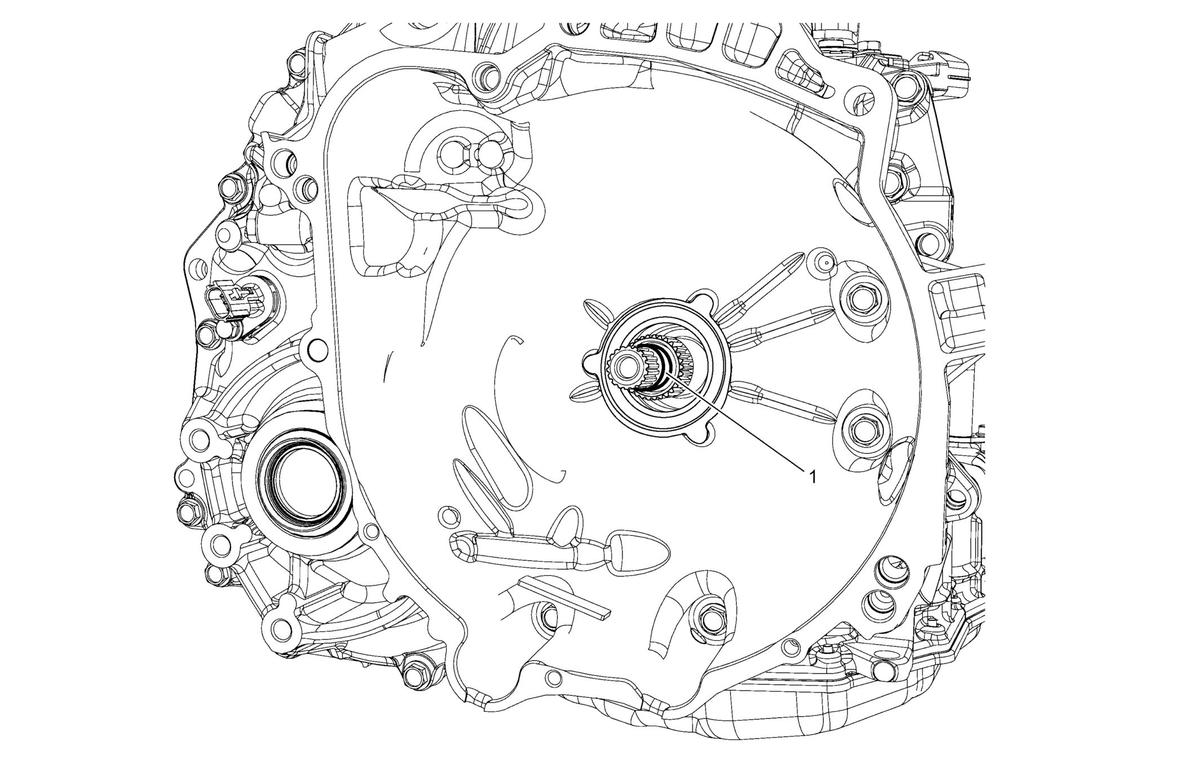

| 1 | Input Shaft O-Ring Seal
NOTE:
Do not reuse the O-ring seal.
|
